IPDM E/R (Intelligent Power Distribution Module Engine Room)

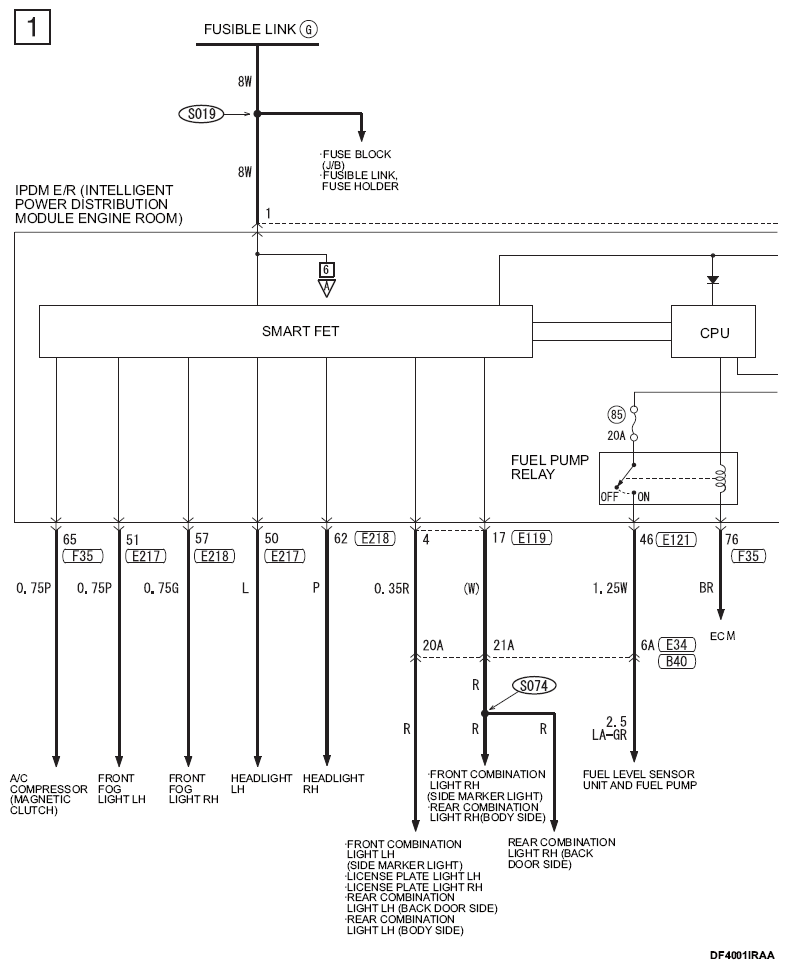

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) Circuit Diagram (1 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

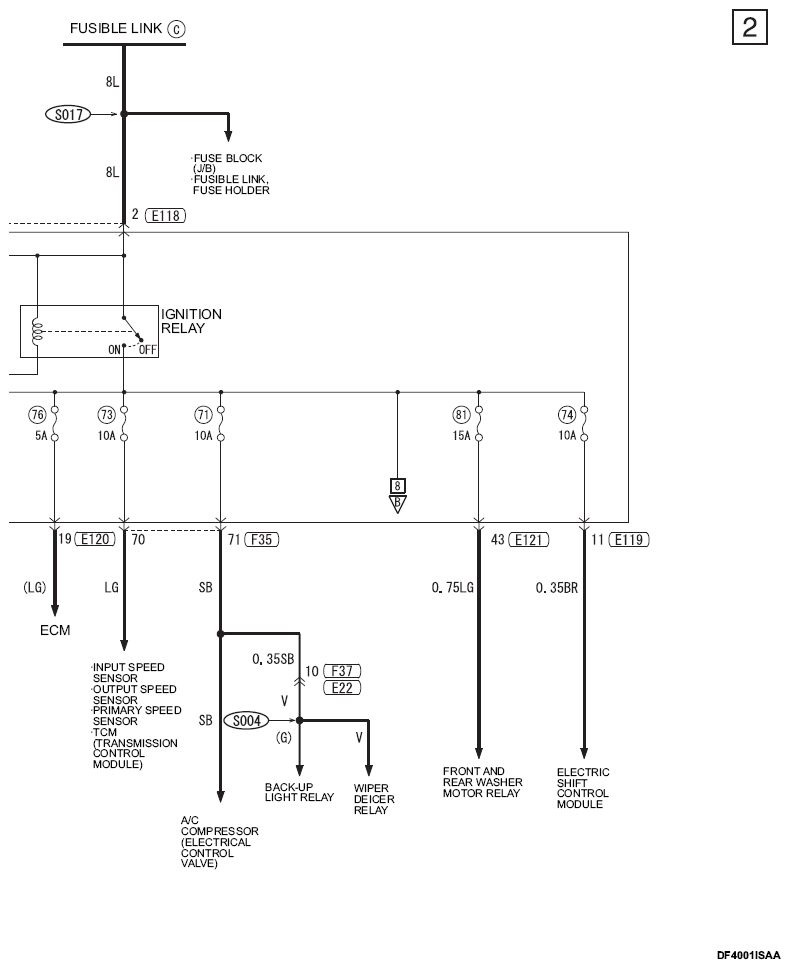

Fig 2: IPDM E/R (Intelligent Power Distribution Module Engine Room) Circuit Diagram (2 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

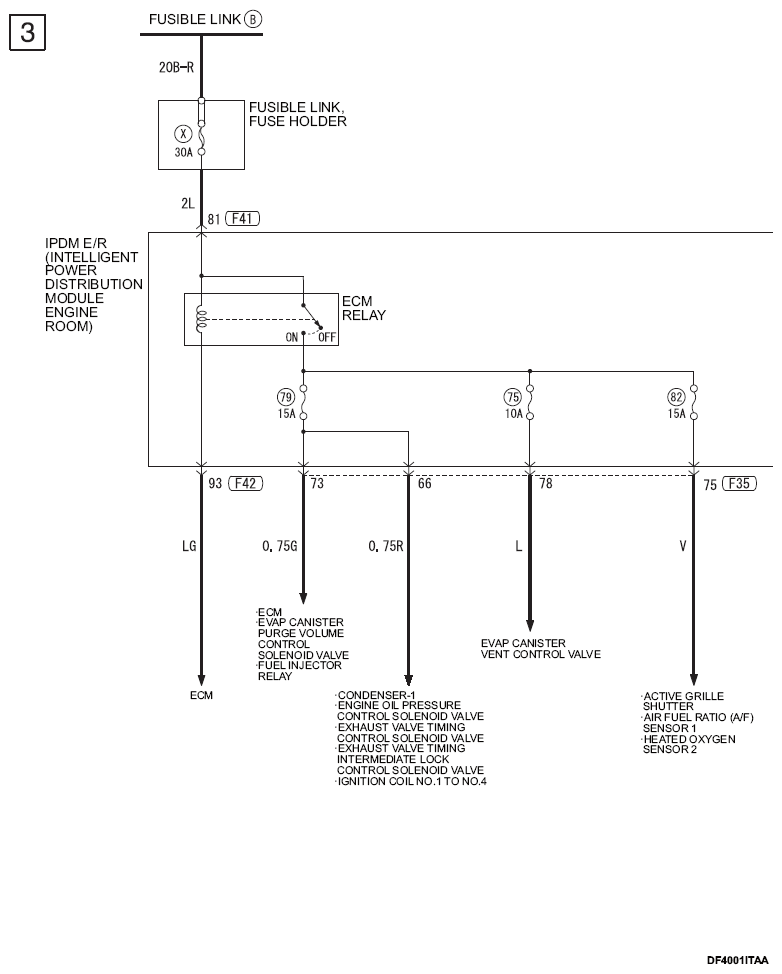

Fig 3: IPDM E/R (Intelligent Power Distribution Module Engine Room) Circuit Diagram (3 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

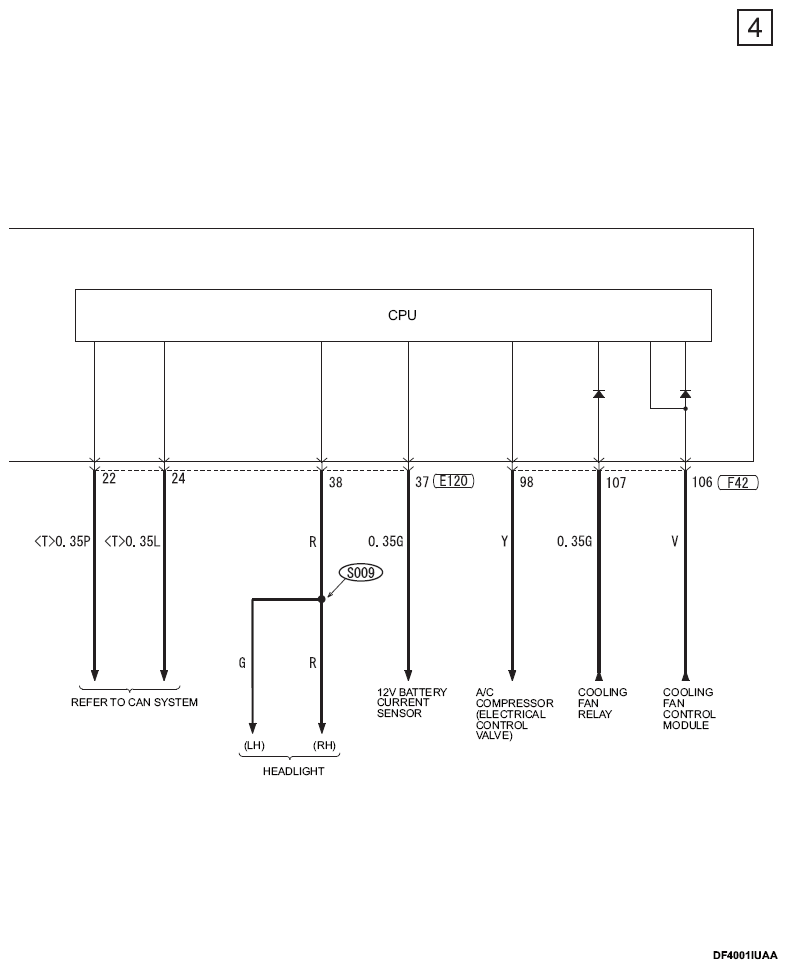

Fig 4: IPDM E/R (Intelligent Power Distribution Module Engine Room) Circuit Diagram (4 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

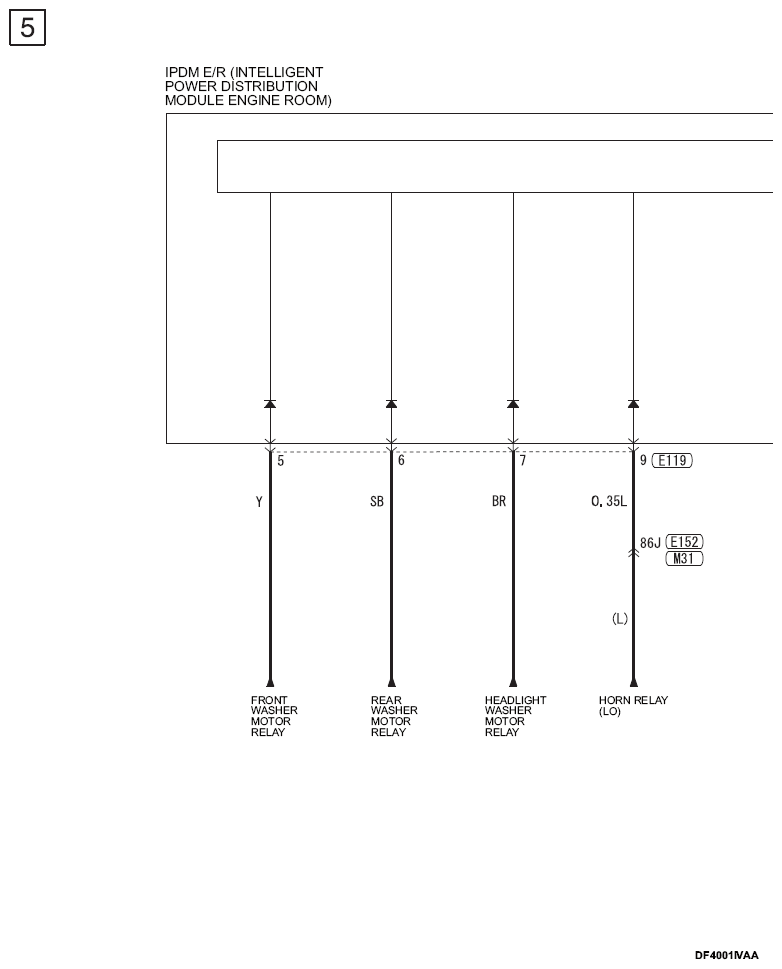

Fig 5: IPDM E/R (Intelligent Power Distribution Module Engine Room) Circuit Diagram (5 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

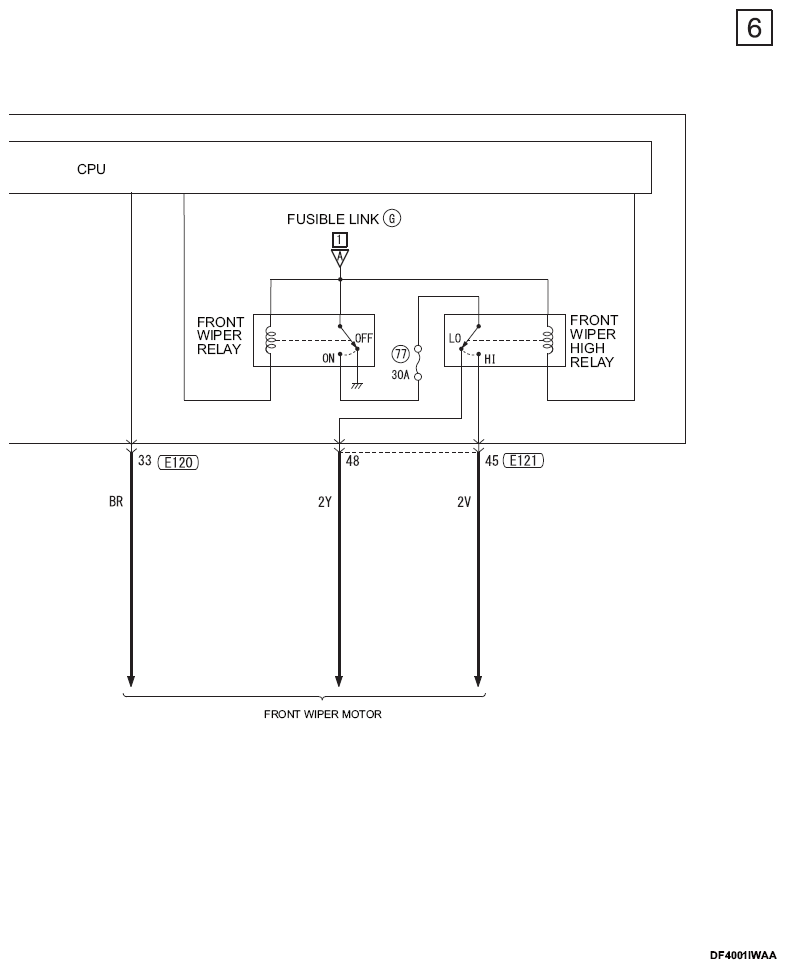

Fig 6: IPDM E/R (Intelligent Power Distribution Module Engine Room) Circuit Diagram (6 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: IPDM E/R (Intelligent Power Distribution Module Engine Room) Circuit Diagram (7 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

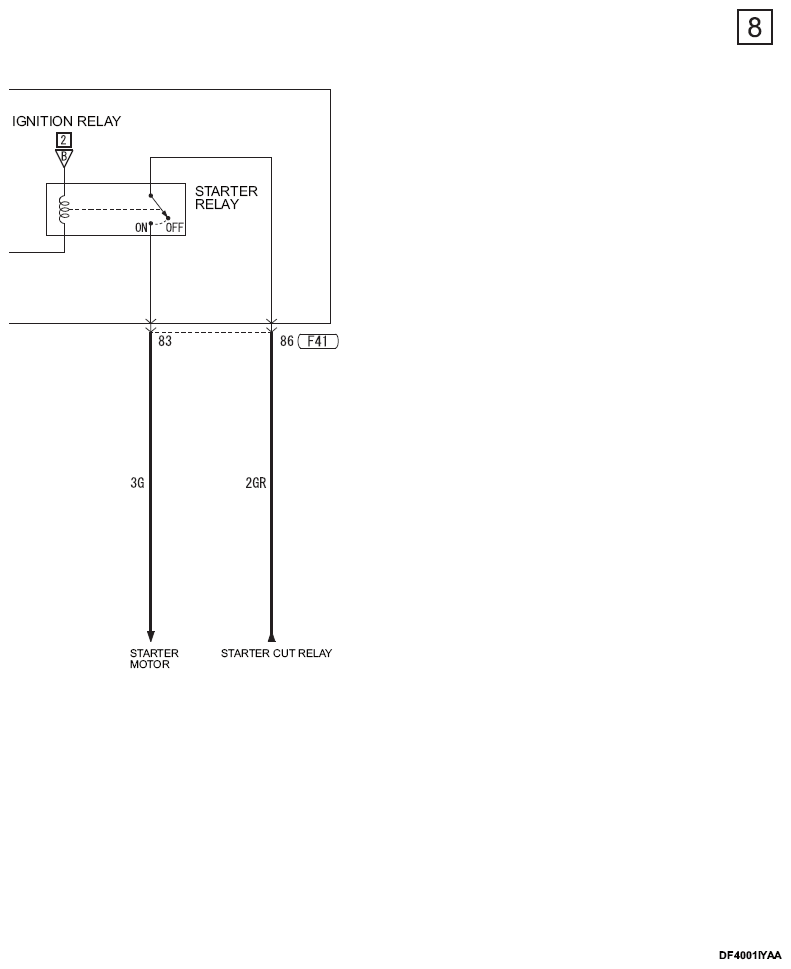

Fig 8: IPDM E/R (Intelligent Power Distribution Module Engine Room) Circuit Diagram (8 Of 8)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
