| (1) |
Rear side air bag module |
| (2) |
Curtain air bag module |
| (3) |
Front side air bag module |
| (4) |
Knee air bag module |
| (5) |
Passenger air bag module |
| (6) |
Front seat belt buckle switch |
| (7) |

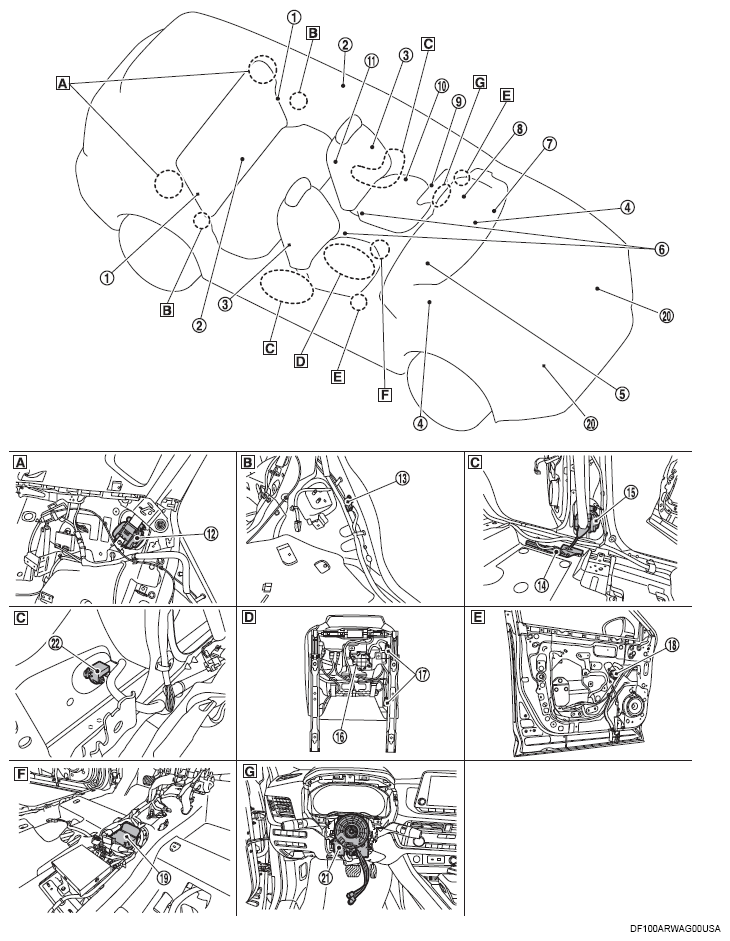

BCM COMPONENT PARTS LOCATION |
| (8) |
Combination meter (SRS air bag warning light) |
| (9) |
Driver air bag module |
| (10) |
Front passenger air bag OFF indicator <Except Vehicles for Puerto Rico> or Front passenger air bag ON/OFF indicator <Vehicles for Puerto Rico> |
| (11) |
Front center air bag module |
| (12) |
Rear seat belt pre-tensioner |
| (13) |
C-pillar satellite sensor |
| (14) |
Lap pre-tensioner |
| (15) |
Front seat belt pre-tensioner |
| (16) |
Occupant detection system control unit |
| (17) |
Occupant detection system sensor |
| (18) |
Front door satellite sensor |
| (19) |
Air bag diagnosis sensor unit |
| (20) |
Crash zone sensor |
| (21) |
Spiral cable |
| (22) |
B-pillar satellite sensor |
| (A) |
View with luggage side lower finisher removed |
| (B) |
View with luggage side lower finisher removed |
| (C) |
View with floor carpet removed |
| (D) |
Backside of passenger seat cushion |
| (E) |
View with front door finisher removed |
| (F) |
View with center console assembly removed |
| (G) |
View with steering wheel removed |
