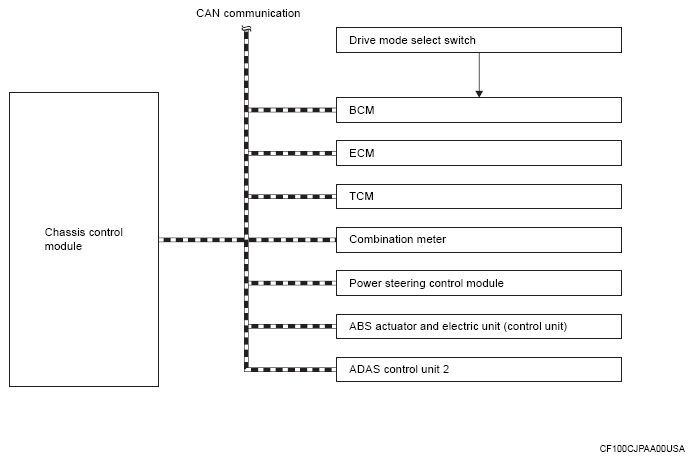

System Diagram

G16264618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Component Signal description
BCM Mainly transmits the following signals to chassis control module via CAN communication.
  • Drive mode switch signal
ECM Mainly receives the following signals from chassis control module via CAN communication.
  • Drive mode signal
TCM Mainly receives the following signals from chassis control module via CAN communication.
  • Drive mode signal
ABS Actuator and Electric Unit (Control Unit) Mainly receives the following signals from chassis control module via CAN communication.
  • Drive mode signal
Combination Meter Mainly receives the following signals from chassis control module via CAN communication.
  • Drive mode signal
Power steering control module Mainly receives the following signals from chassis control module via CAN communication.
  • Drive mode signal
ADAS Control Unit 2 Mainly receives the following signals from chassis control module via CAN communication.
  • Drive mode signal
