System Description

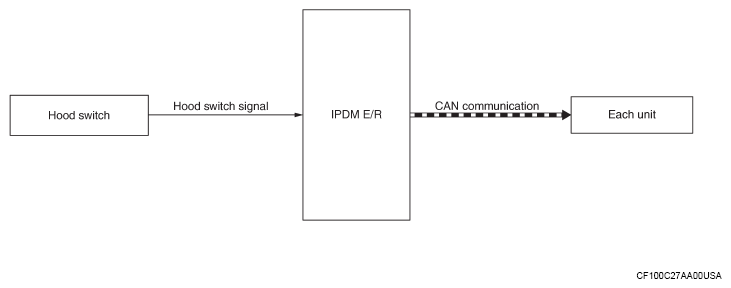

SYSTEM DIAGRAM
| Component | Function |
|---|---|
| Hood switch | Detects the hood condition (open or close), and inputs the hood switch signal to IPDM E/R. |
| IPDM E/R | IPDM E/R has the signal transmission function that transmits each input signal to each unit. |
SIGNAL TRANSMISSION FUNCTION LIST
| Signal name | Input | Output | Description |
|---|---|---|---|
| Hood switch signal | Hood switch | BCM | Inputs the hood switch signal and transmits hood switch signal via CAN communication. |
