Terminal Layout

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

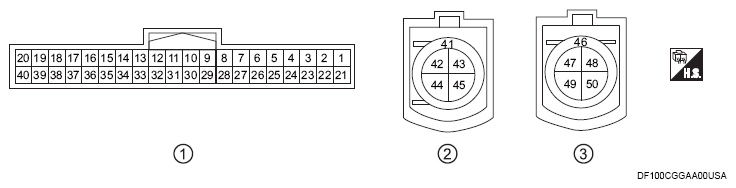

G16317274Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) White
(2) Green
(3) Black
