Switch Name And Function

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

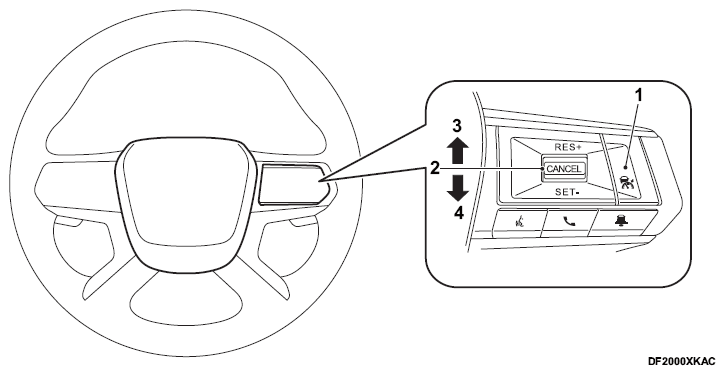

No.	Description	Function
(1)	ACC MAIN switch	Master switch to activate the system (Press for more than 1.5 seconds)
(2)	CANCEL switch	Deactivates system without erasing set speed
(3)	RES+ switch	Resumes set speed or increases speed incrementally. Push and hold the switch to increase the set speed by 5 km/h (5 MPH) Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
(4)	SET- switch	Sets desired cruise speed or reduces speed incrementally Push and hold the switch to decrease the set speed by 5 km/h (5 MPH) Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH) NOTE: The minimum set speed is 30 km/h (20 MPH)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

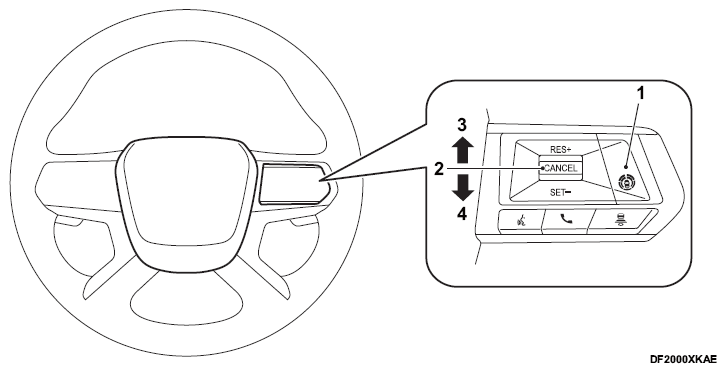

No.	Description	Function
(1)	MI-PILOT MAIN switch	Master switch to activate the system (Press for more than 1.5 seconds)
(2)	CANCEL switch	Deactivates system without erasing set speed
(3)	RES+ switch	Resumes set speed or increases speed incrementally. Push and hold the switch to increase the set speed by 5 km/h (5 MPH) Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
(4)	SET- switch	Sets desired cruise speed or reduces speed incrementally. Push and hold the switch to decrease the set speed by 5 km/h (5 MPH) Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH) NOTE: The minimum set speed is 30 km/h (20 MPH)
