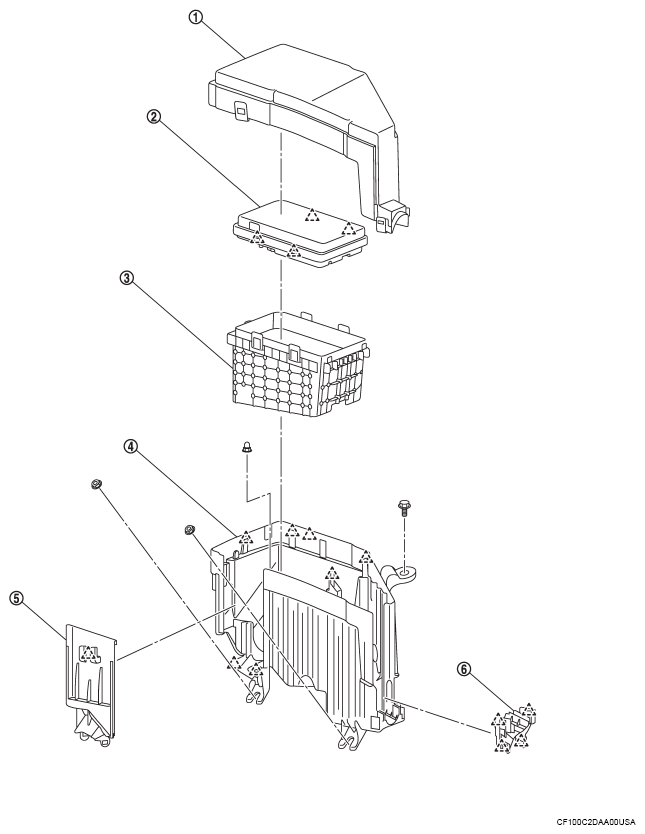

Exploded View

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1	IPDM E/R cover A
2	IPDM E/R
3	IPDM E/R cover B
4	IPDM E/R cover C
5	IPDM E/R cover D
6	IPDM E/R cover E
Δ:	Pawl
