Component Operation

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

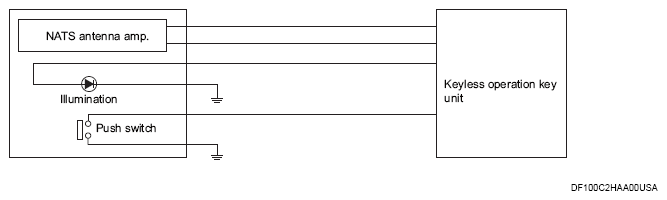

Electric motor switch is pressed, and transmits the status signal to Keyless operation key unit.

G16316630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
