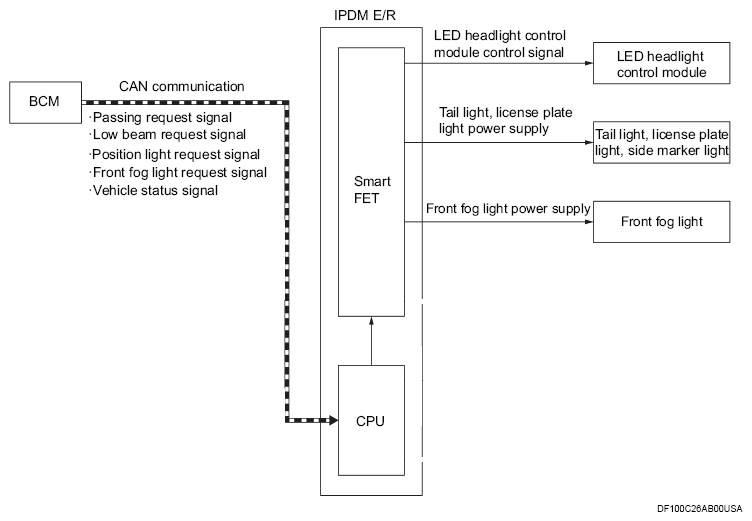

System Diagram
WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
| Component | Function |
|---|---|
| BCM | BCM transmits the each light ON/OFF request signal and vehicle status signal to IPDM E/R via CAN communication. |
| PHEV-ECU | PHEV-ECU calculates a cooling level, and transmits cooling fan speed request signal to IPDM E/R via CAN communication. |
| IPDM E/R | IPDM E/R controls the smart FET to control each light according to the control signal status of each light received from BCM via CAN communication. Refer to the following.
|
| Smart FET | Refer to SMART FET . |
| LED headlight control module | IPDM E/R supplies power supply voltage to each light, and turns the each light ON. |
| Tail light, license plate light, side marker light | |
| Front fog light |
