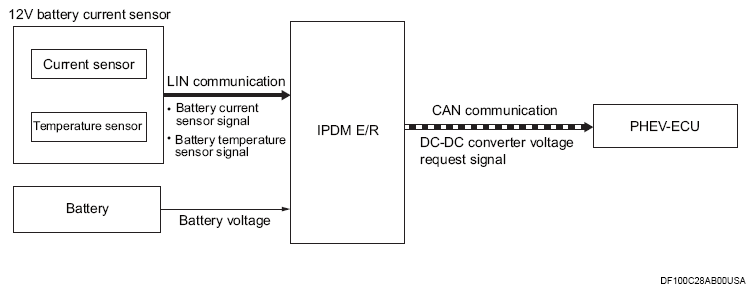

System Diagram

WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
G16316620Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Component Function
12V Battery current sensor Current sensor Detects the charging/discharging current of battery.
Temperature sensor Detects the temperature around the battery.
Battery Battery supplies power supply voltage to each unit and parts.
IPDM E/R IPDM E/R transmits DC-DC converter voltage request signal to PHEV-ECU via CAN communication according to battery voltage, battery current sensor signal and battery temperature sensor signal.
PHEV-ECU PHEV-ECU controls the power generation voltage to the DC-DC converter according to request from IPDM E/R received via CAN communication.
