Disassembly And Assembly: Notes

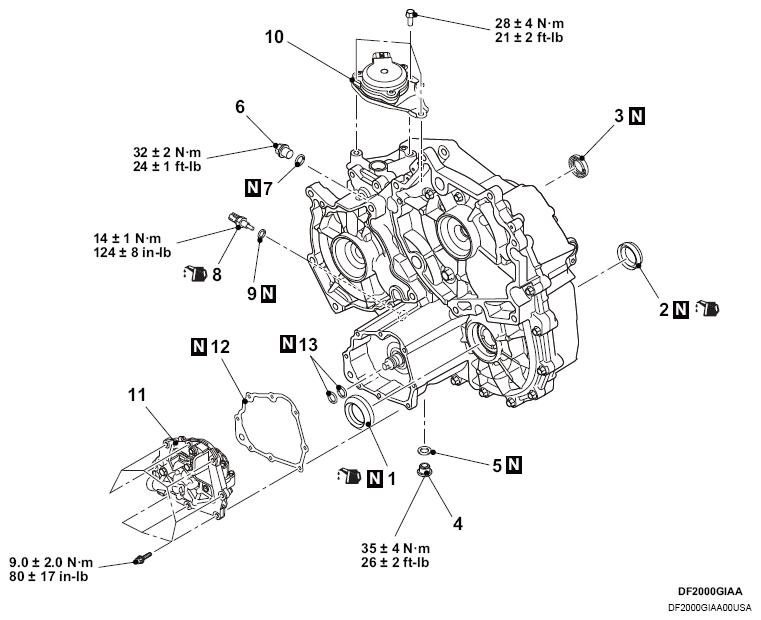

Fig 1: Disassembling/Assembling Front Transaxle Components Location With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

			Disassembly steps
	>>F<<	1.	Oil seal
	>>F<<	2.	Oil seal
	>>E<<	3.	Oil seal
		4.	Drain plug
		5.	Gasket
		6.	Filler plug
		7.	Gasket
	>>D<<	8.	Transaxle fluid temperature sensor
		9.	Gasket
<<A>>	>>C<<	10.	Electrical parking actuator
<<B>>	>>B<<	11.	Valve body assembly
		12.	Gasket
	>>A<<	13.	Piston seal

Required special tools:
