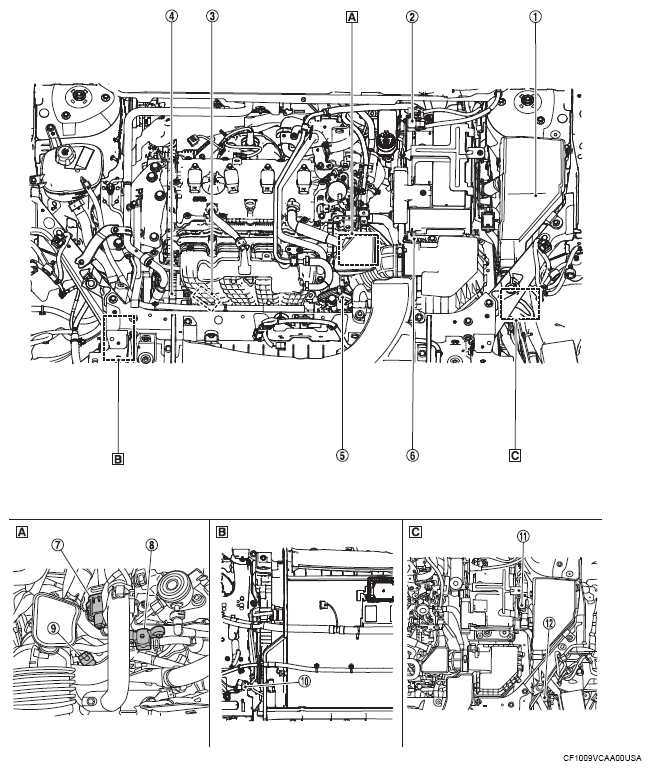

Engine Room Compartment
| (A) | Left center of engine compartment |
| (B) | Right front of vehicle |
| (C) | Left front of engine compartment |
| (1) | IPDM E/R COMPONENT PARTS LOCATION |
| (2) | 12 V battery current sensor |
| (3) | Manifold absolute pressure (MAP) sensor |
| (4) | Generator COMPONENT PARTS LOCATION |
| (5) | Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
| (6) | Mass air flow sensor (with intake air temperature sensor) |
| (7) | Intake manifold runner control valve actuator |
| (8) | EVAP canister purge volume control solenoid valve |
| (9) | Transmission range switch |
| (10) | Refrigerant pressure sensor
|
| (11) | ECM |
| (12) | Electric intake valve timing control module |
