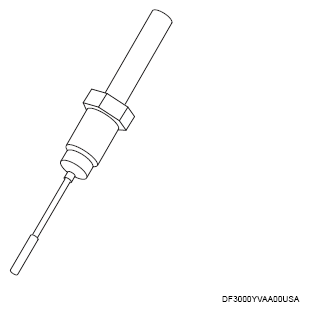

Exhaust Gas Temperature Sensor <From 22 to 23 model year (AWD)>
Exhaust gas temperature sensor (EGT sensor) is installed exhaust manifold. Exhaust gas temperature sensor uses a thermistor which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response to the temperature rises.

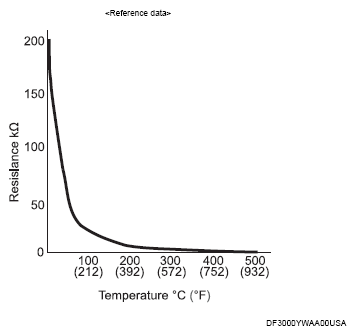

<Reference data>
| Fluid temperature [°C (°F)] | Voltage (V) | Resistance (kΩ) |
|---|---|---|
| 100 (212) | 4.74 | 18.25 |
| 200 (392) | 4.00 | 4.00 |
| 400 (752) | 1.96 | 0.64 |
| 600 (1112) | 0.85 | 0.20 |
