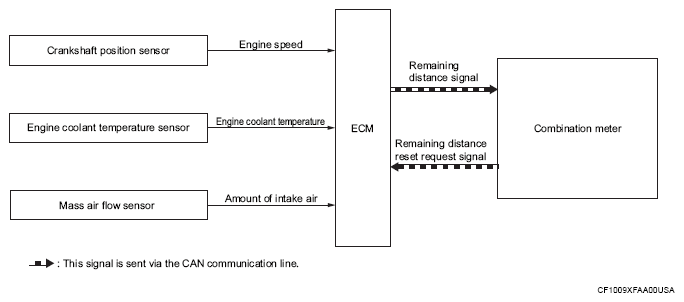

System Diagram
| Component parts | Function |
|---|---|
| Crankshaft position sensor | CRANKSHAFT POSITION SENSOR |
| Engine coolant temperature sensor | ENGINE COOLANT TEMPERATURE SENSOR |
| Mass Air Flow Sensor (With Intake Air Temperature Sensor) | MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) |
| ECM | ECM |
| Combination meter | ECM receives the vehicle speed signal via CAN communication. |
