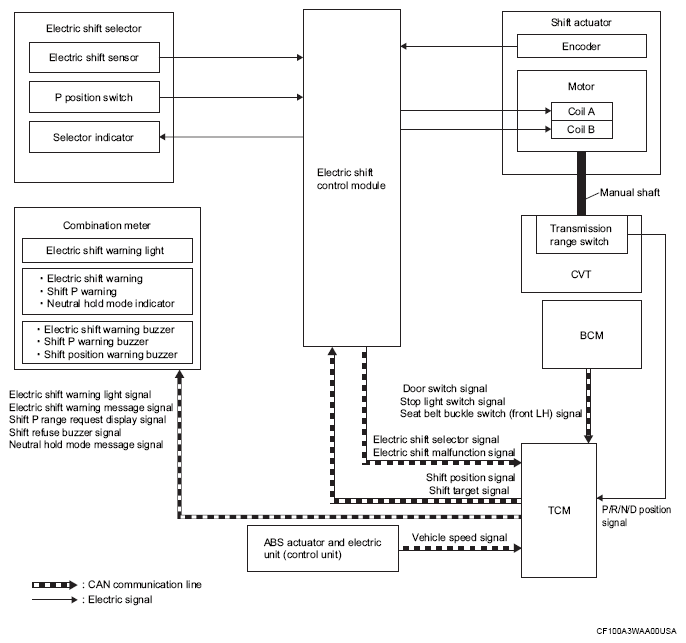

System Description
- The electric shift system detects each shift position electrically. In addition, in P position, the electric shift system activates the shift actuator, according to electrical signals received from the P position switch and brings the vehicle into the parking state.
- In the event of a malfunction in the electric shift system, the selector indicator of electric shift selector turns OFF and only the shift indicator (on the combination meter) indicates the shift position.
- In the event of a malfunction in the electric shift system, the system enters fail-safe mode. Refer to FAIL-SAFE .
| Component | Function |
|---|---|
| Electric shift control module | Mainly transmits the following signal to TCM via CAN communication
Mainly receives the following signals from TCM via CAN communication
|
| Electric shift selector | Refer to ELECTRIC SHIFT SELECTOR . |
| Electric shift sensor | Refer to ELECTRIC SHIFT SENSOR . |
| P position switch | Refer to P POSITION SWITCH . |
| Selector indicator | Refer to SELECTOR INDICATOR . |
| Shift actuator | Refer to SHIFT ACTUATOR . |
| Transmission range switch | Refer to TRANSMISSION RANGE SWITCH . |
| TCM | Mainly transmits the following signal to electric shift control module via CAN communication
Mainly receives the following signals from electric shift control module via CAN communication
|
| BCM | Mainly transmits the following signal to TCM via CAN communication
|
| ABS actuator and electric unit (control unit) | Mainly transmits the following signal to TCM via CAN communication
|
| Combination meter | Mainly receives the following signal from TCM via CAN communication
|
