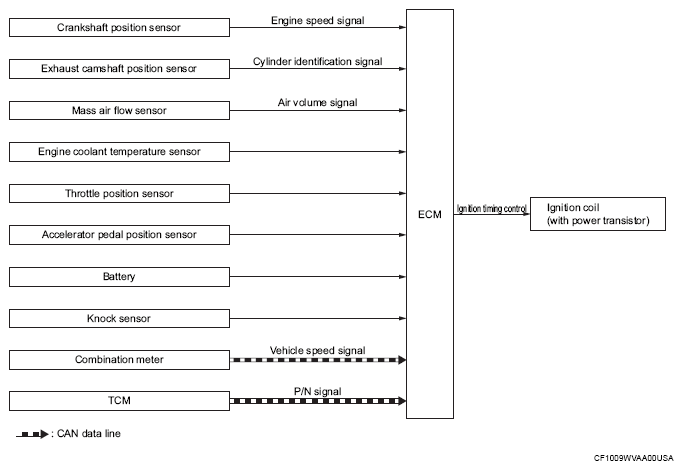

System Diagram
| Component parts | Function |
|---|---|
| Crankshaft position sensor | CRANKSHAFT POSITION SENSOR . |
| Exhaust camshaft position sensor | EXHAUST CAMSHAFT POSITION SENSOR |
| Mass air flow sensor (With intake air temperature sensor) |
MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) |
| Engine coolant temperature sensor | ENGINE COOLANT TEMPERATURE SENSOR |
| Throttle position sensor | ELECTRIC THROTTLE CONTROL ACTUATOR |
| Accelerator pedal position sensor | ACCELERATOR PEDAL POSITION SENSOR |
| Battery | ECM receives the battery voltage signal. |
| Knock sensor | KNOCK SENSOR |
| Combination meter | ECM receives the vehicle speed signal via CAN communication. |
| TCM | ECM receives the park/neutral position signal via CAN communication. |
| ECM | ECM |
| Ignition coil (With power transistor) |
IGNITION COIL WITH POWER TRANSISTOR |
