<Liftgate Lock Release Handle (Liftgate Lock Switch)>

Switch position Terminal number Normal value
Push (lock) 2 - 3 Continuity exists (2 Ω or less)
Release 2 - 3 No continuity

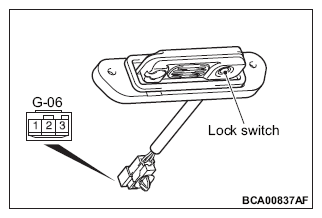

G16907173Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
