Power Windows Vehicles With One-Touch Opening/Closing Mechanism For Driver's Window>

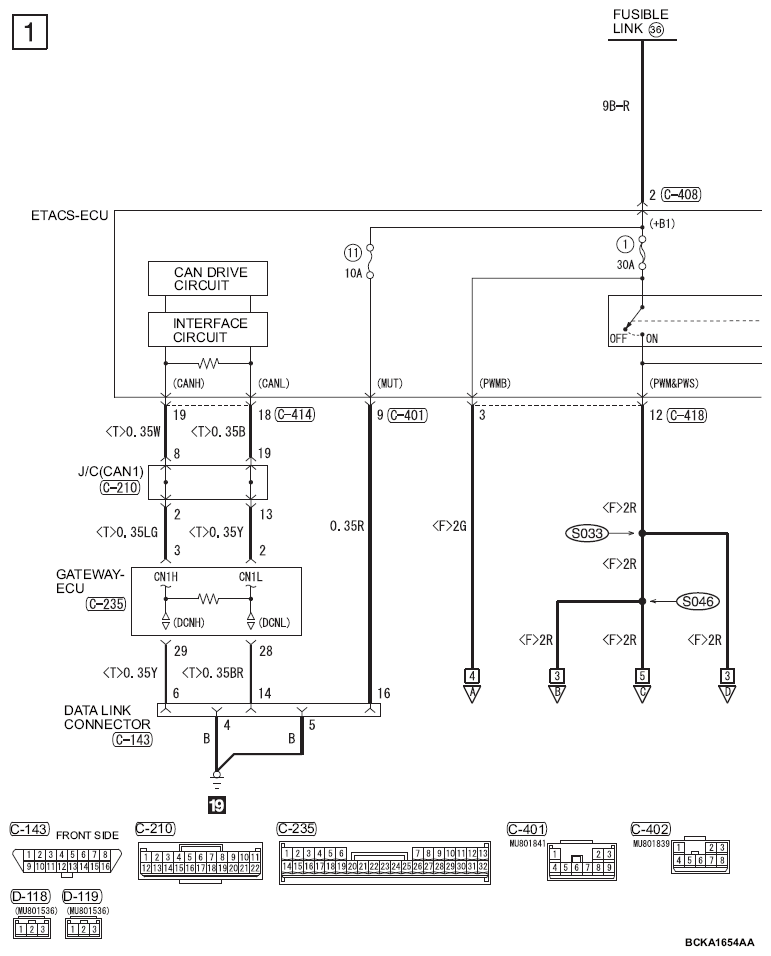

Fig 1: Power Windows Circuit Diagram - Vehicles With One-Touch Opening/Closing Mechanism For Driver'S Window (1 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

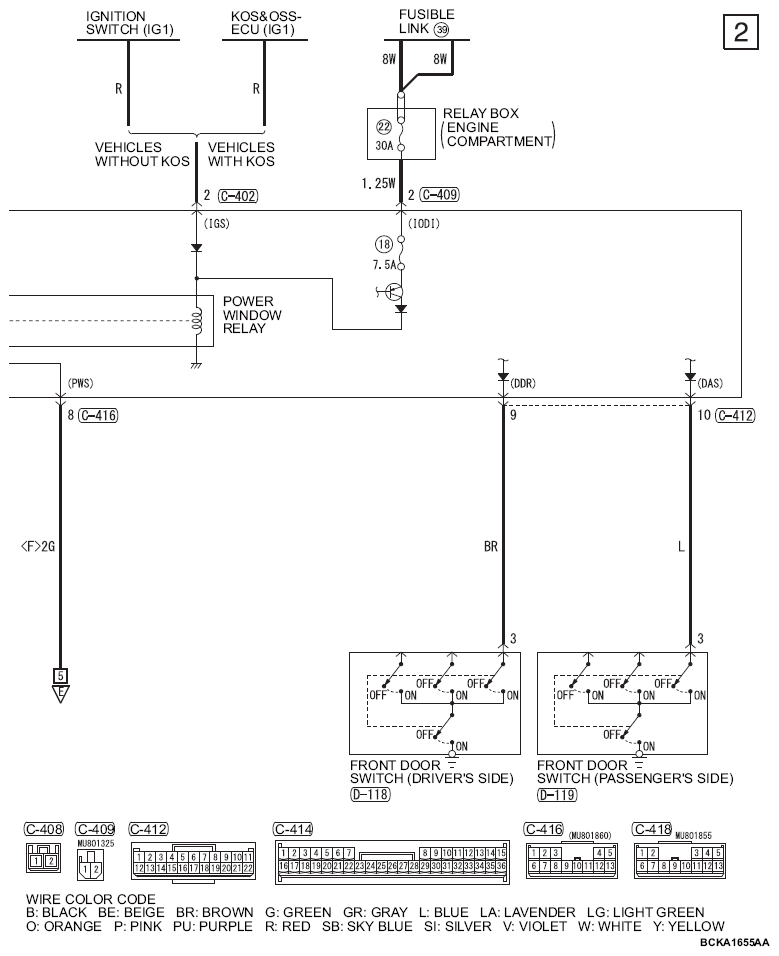

Fig 2: Power Windows Circuit Diagram - Vehicles With One-Touch Opening/Closing Mechanism For Driver'S Window (2 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

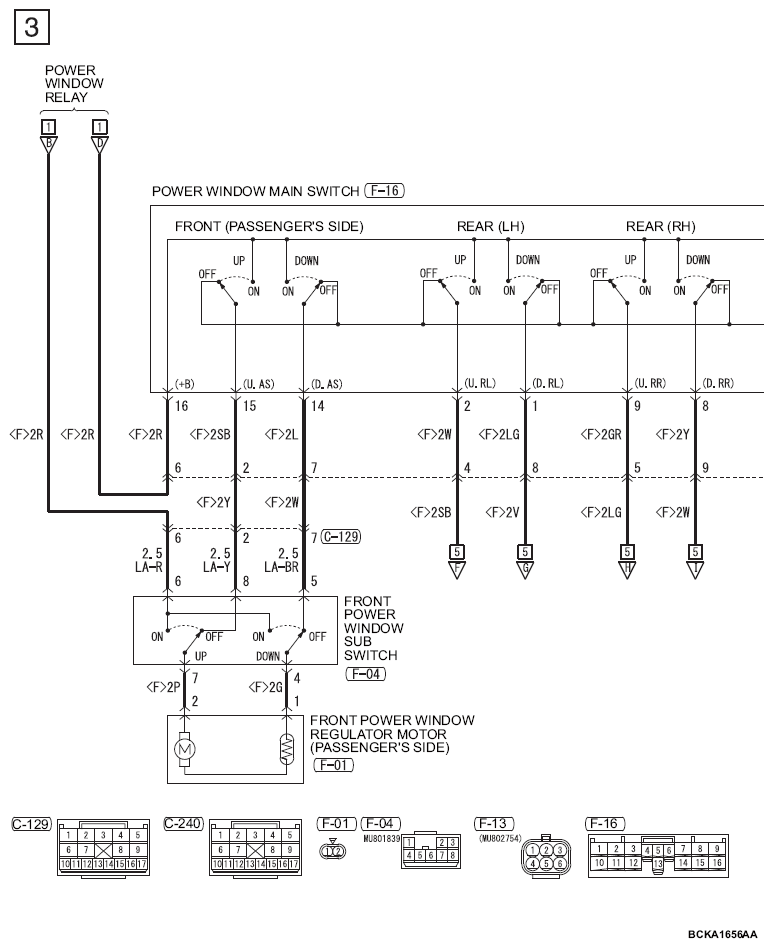

Fig 3: Power Windows Circuit Diagram - Vehicles With One-Touch Opening/Closing Mechanism For Driver'S Window (3 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

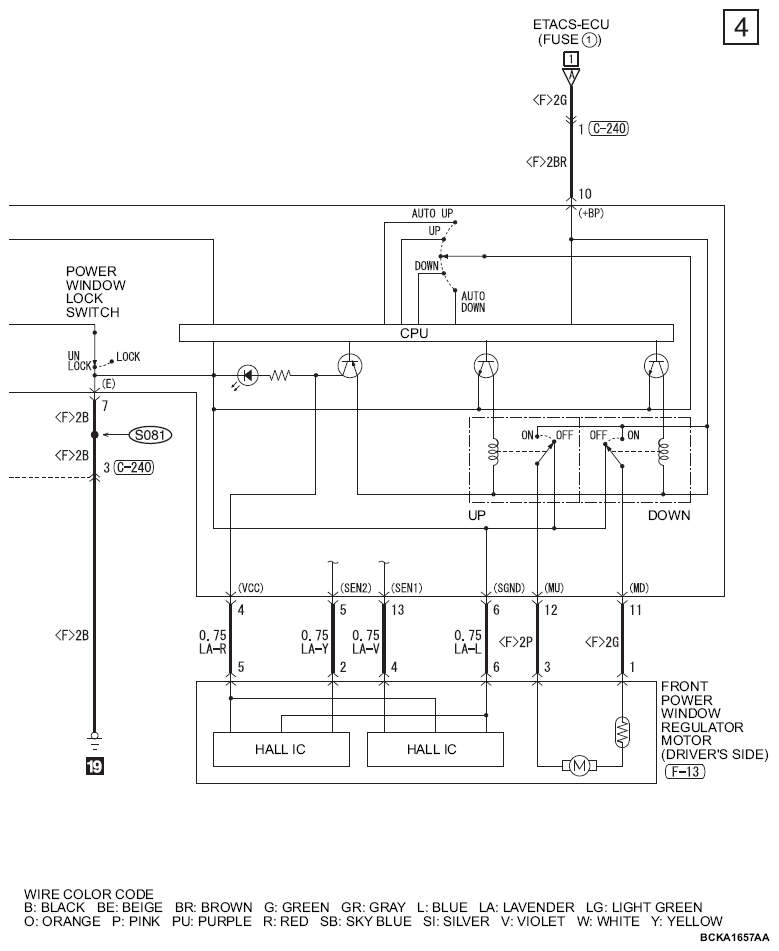

Fig 4: Power Windows Circuit Diagram - Vehicles With One-Touch Opening/Closing Mechanism For Driver'S Window (4 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

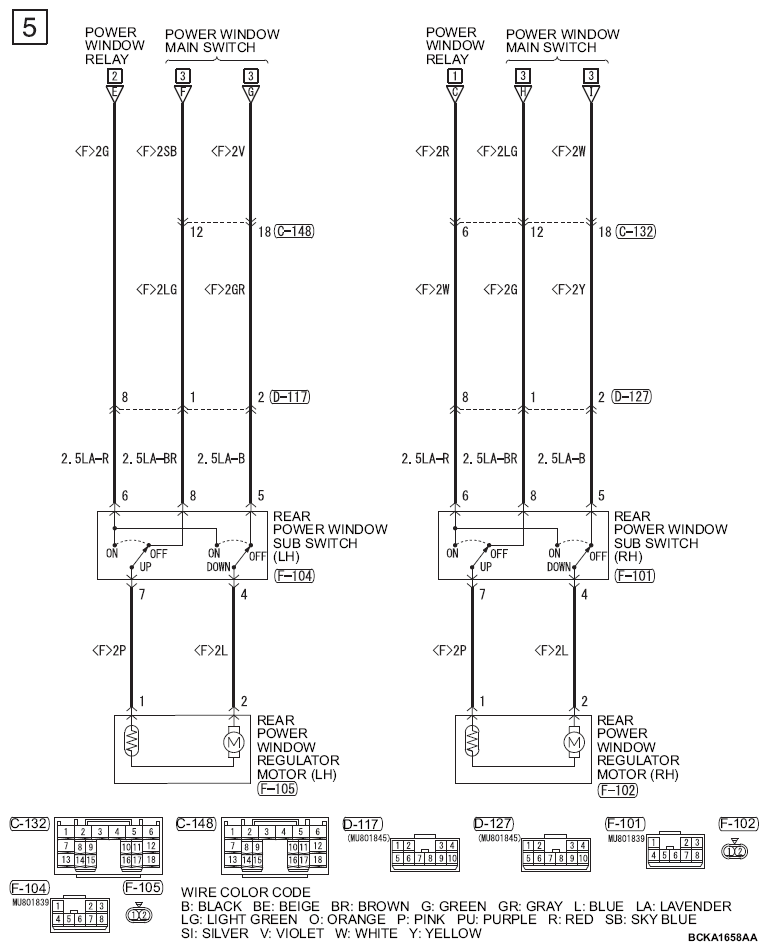

Fig 5: Power Windows Circuit Diagram - Vehicles With One-Touch Opening/Closing Mechanism For Driver'S Window (5 Of 5)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
