Disassembly And Reassembly: Notes

CAUTION:
  • When replacing the EPS-ECU or electric steering lock, complete the chassis number registration (Refer to - Precautions before Service - HOW TO PERFORM VIN WRITING ).
  • When the motor (integrated with EPS-ECU) is replaced, coding must be performed. When diagnostic trouble code No.U1195 "Coding not completed" is set in the motor (integrated with EPS-ECU), diagnose each diagnostic trouble code.
  • After the installation, perform a calibration for the EPS-ECU to learn the torque sensor neutral point (Refer to INSPECTION PROCEDURE  ).
  • Do not reuse the product that has been dropped because its internal components may be defective even if it has no apparent damage.
  • Always keep motor (EPS-ECU) away from the matter that generates magnetic force.
  • Handle carefully to prevent binding or damage of the wiring harness.

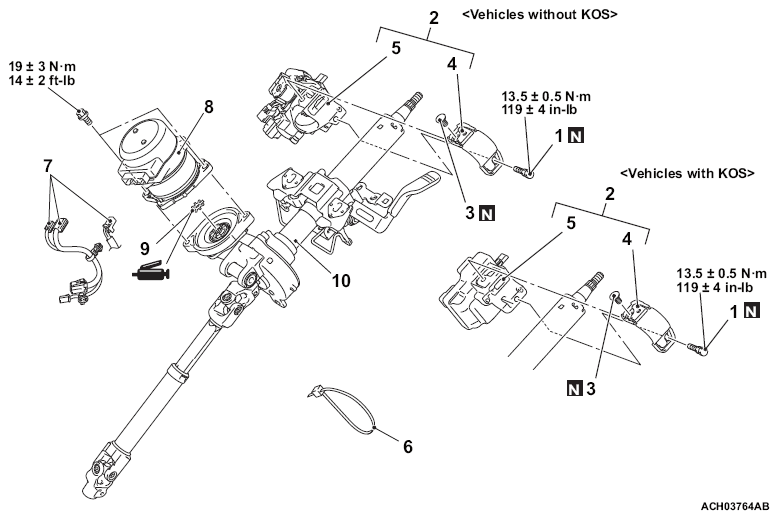

    Fig 1: Disassembling/Reassembling Steering Column Shaft Assembly Components Location With Torque Specification
    G16570958Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Disassembly steps
<<A>> >>C<< 1. Steering lock bolt (lower)
    2. Steering lock bracket and steering lock
<<A>> >>C<< 3. Steering lock bolt (upper)
  >>C<< 4. Steering lock bracket
  >>C<< 5. Mechanical steering lock <Vehicles without KOS> or electric steering lock <Vehicles with KOS>
  >>B<< 6. Steering column band
  <<B>> 7. Motor (EPS-ECU) connector
<<B>> >>A<< 8. Motor (EPS-ECU)
  >>A<< 9. Rubber spring(1)
    10. Steering column shaft
NOTE:
  • A steering lock, a steering lock bracket and a steering lock bolt are supplied as a single unit. A mechanical steering lock assembly (a mechanical steering lock, a steering lock bracket, a steering lock bolt, a key reminder switch/key ring antenna assembly and an ignition switch are included.) is also supplied.<Vehicles without KOS>
  • When the steering lock assembly is supplied, the steering lock bracket is assembled to the steering lock and the steering lock bolt head (upper) is broken off.<Vehicles without KOS>
  • For removal and installation of key reminder switch/key ring antenna and ignition switch, Refer to - Ignition Switch Removal and Installation REMOVAL AND INSTALLATION .<Vehicles without KOS>
  • The steering lock dummy bracket assembly (including a bracket, a housing and a flange bolt) is installed to secure the paddle shift assembly.<Vehicles with KOS>
  • The steering lock dummy bracket is supplied not only as an assembly but also individually (the bracket, the housing and the flange bolt).<Vehicles with KOS>
  • When it is supplied as an assembly, the housing and the bracket have been assembled by the flange bolt.<Vehicles with KOS>

(1) After removing the rubber spring, be careful not to lose them.

Required Special Tool:
