Removal And Installation: Notes
Pre-removal and Post-installation Operation
Steering Column Cover Lower and Steering Column Cover Upper Removal and Installation (Refer to GROUP 52A - INSTRUMENT PANEL ASSEMBLY ).

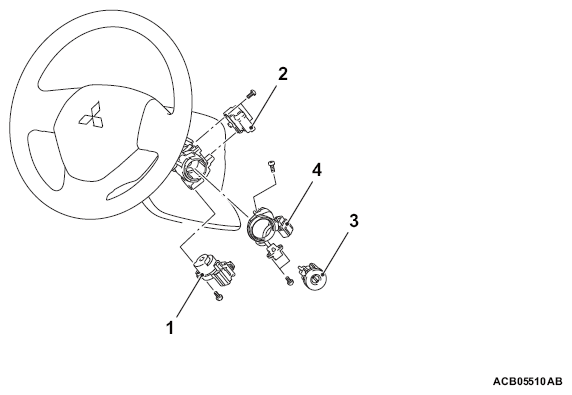

| Removal steps | ||
|---|---|---|
| 1. | Ignition switch | |
| 2. | Steering lock solenoid | |
| <<A>> | 3. | Steering lock cylinder |
| • | Windshield wiper & windshield washer switch (Refer to COLUMN SWITCH .) | |
| 4. | Key reminder switch and key ring antenna assembly | |
NOTE:
Other than the single unit supplying of key reminder switch and key ring antenna assembly as well as of ignition switch, they are also supplied as the mechanical steering lock assembly (mechanical steering lock, steering lock bracket, steering lock bolt, key reminder switch and key ring antenna assembly, and ignition switch are supplied as a set). For how to remove the mechanical steering lock, steering lock bracket, and steering lock bolt, refer to GROUP 37 - Steering Shaft Disassembly and Reassembly DISASSEMBLY AND REASSEMBLY
.
