Removal And Installation <Front>: Notes
CAUTION:
The vehicle speed detection encoder collects any metallic particle easily, because it is magnetized. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to reassembling it.
| Pre-removal and post-installation operation |
|---|
| Air cleaner body assembly removal and installation (Refer to - AIR CLEANER ) <Front wheel speed sensor (LH)>. |

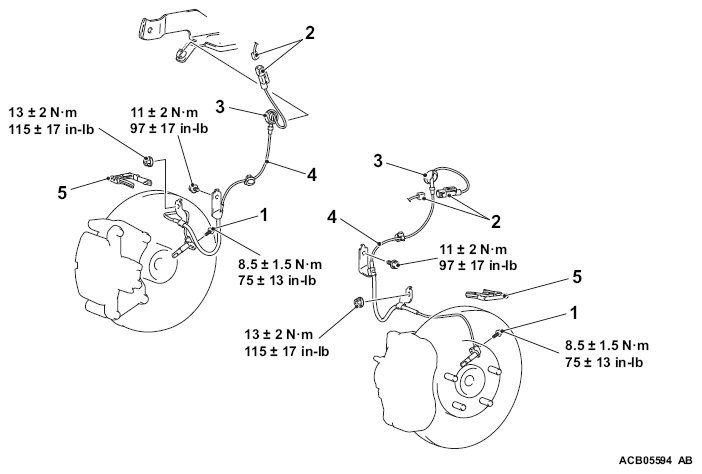

| Removal steps | ||
| 1. | Bolt (front wheel speed sensor and knuckle connection) | |
| 2. | Front wheel speed sensor connector | |
| >>A<< | 3. | Front wheel speed sensor grommet |
| 4. | Front wheel speed sensor | |
| >>B<< | 5. | Harness clip |
NOTE:
The vehicle speed detection encoder is integrated with the front wheel bearing, which cannot be disassembled.
