Special Tools: Transaxle

Tool Tool number and name Supersession Use
G16905791Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992141 Oil seal installer - Installation of converter housing oil seal
G16905792Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992075 Handle - Use with oil seal installer
G16905793Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992140 Oil seal installer - Installation of side oil seal
G16905794Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992206 Oil seal installer - Installation of side oil seal < F1CJC >
G16905795Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992154 Oil seal installer - Installation of oil seal
G16905796Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998812 Installer cap MIT304180-A or General service tool Use with oil seal installer

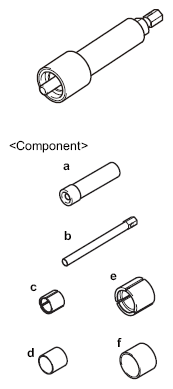

G16905797Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MD998192 Counter shaft bearing puller
  1. Body puller
  2. Bolt
  3. Hook A
  4. Holder A
  5. Hook B
  6. Holder B
 - Installation of transfer oil seal
NOTE: Use only the component of the MD998192, "f. Holder B (outer diameter: large)".
G16905798Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990936 Oil seal installer - Installation of oil seal
