Disassembly And Assembly: Notes
WARNING:
Certain components of this vehicle, such as coin-type lithium battery may contain perchlorate materials. Before deployment and/or disposal of these components, review and comply with all applicable Federal, state and local regulations.
CAUTION:
When disassembling the transmitter, static electricity may damage the internal electronic circuit. Therefore, be sure to release static electricity from your body before disassembling the transmitter.
Post-reassembly operation
- Transmitter operation check

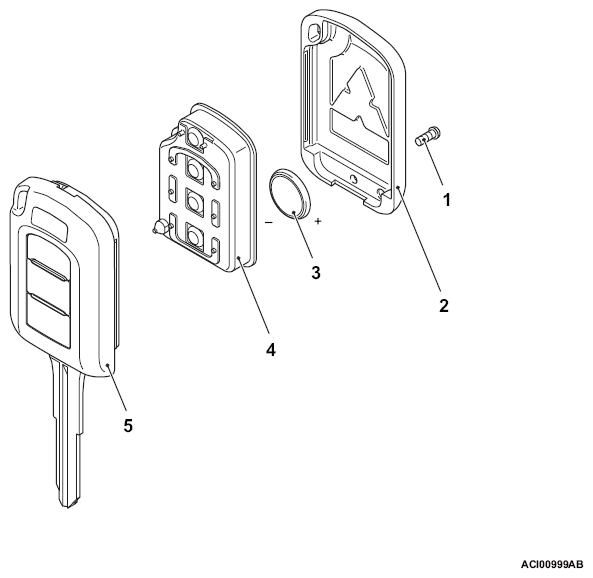

| Disassembly steps | |||
|---|---|---|---|
| 1. | Screw | ||
| 2. | Cover assembly | ||
| <<A>> | >>A<< | 3. | Battery |
| 4. | Transmitter assembly | ||
| 5. | Master key | ||
