Scan Tool [Multi Use Tester (M.U.T.-IIISE) Sub Assembly]: M.U.T.-IIISE

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: For the V.C.I.-Lite, use MB992745, MB992747 and MB992748.

NOTE: Refer to the "M.U.T.-IIISE User's Manual" for instructions on handling the scan tool (M.U.T.-IIISE).

CAUTION: Turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting the scan tool (M.U.T.-IIISE).

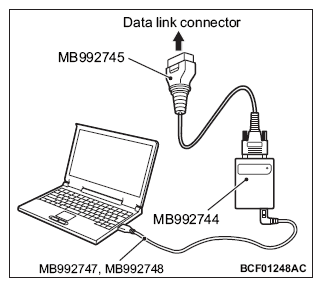

Connect the scan tool (M.U.T.-IIISE) to the data link connector as shown in the illustration.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Connect the scan tool (M.U.T.-IIISE) to the data link connector as shown in the illustration.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
