Removal And Installation: Notes

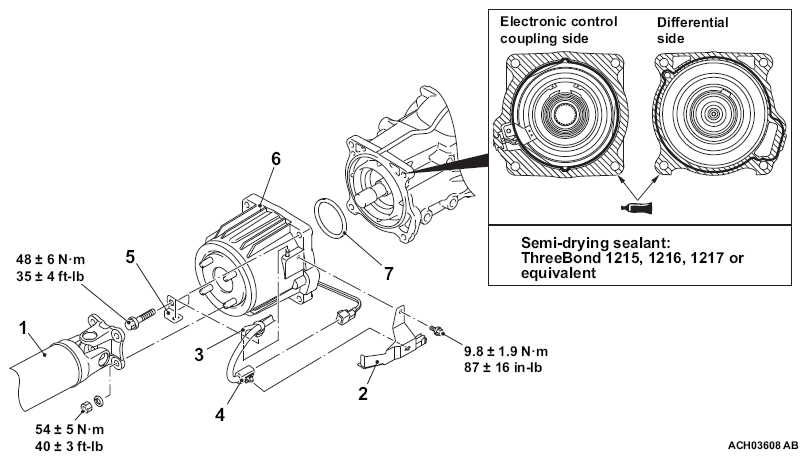

Fig 1: Removing/Installing Electronic Control Coupling Components Location With Torque Specification (AWD)
| Removal steps | ||
|---|---|---|
| 1. | Propeller shaft assembly (Refer to - PROPELLER SHAFT ). | |
| 2. | Cover | |
| • | Differential mount bracket bolt (Refer to - DIFFERENTIAL CARRIER ASSEMBLY ). | |
| 3. | Breather hose connection | |
| 4. | Connector connection | |
| 5. | Bracket | |
| >>A<< | 6. | Electronic control coupling |
| 7. | Wave washer | |
