Removal And Installation: Notes
CAUTION:
- Before replacing the transaxle assembly, you should make a note of the serial No. which is stamped on the new transaxle assembly (Refer to INITIALIZATION PROCEDURE FOR CVT LEARNED VALUE ).
- When the transaxle assembly is replaced, carry out the following operations.
- Initialization Procedure for CVT Learned Value (Refer to INITIALIZATION PROCEDURE FOR CVT LEARNED VALUE ).
- Learning Procedure (Refer to INITIALIZATION PROCEDURE FOR CVT LEARNED VALUE ).
Pre-removal and post-installation operation
- Transfer Assembly Removal and Installation <AWD> (Refer to TRANSFER ASSEMBLY <AWD> ).
- Strut Tower Bar Removal and Installation (Refer to - Strut Tower Bar REMOVAL AND INSTALLATION ).
- Air Cleaner Assembly, Air Cleaner Bracket Removal and Installation (Refer to - AIR CLEANER ).
- Battery and Battery Tray Removal and Installation (Refer to - BATTERY ).
- Engine Room Under Cover Front A, B and Engine Room Side Cover Removal and Installation (Refer to - UNDER COVER ).
- Transmission Fluid Draining and Refilling (Refer to TRANSMISSION FLUID CHANGE ).
- Engine Coolant Draining and Refilling (Refer to - On-vehicle Service ENGINE COOLANT CHANGE ).
- Engine control module Removal and Installation (Refer to - ENGINE CONTROL MODULE ).
- Air Hose B and Air Hose C Removal and Installation (Refer to - CHARGE AIR COOLER ).

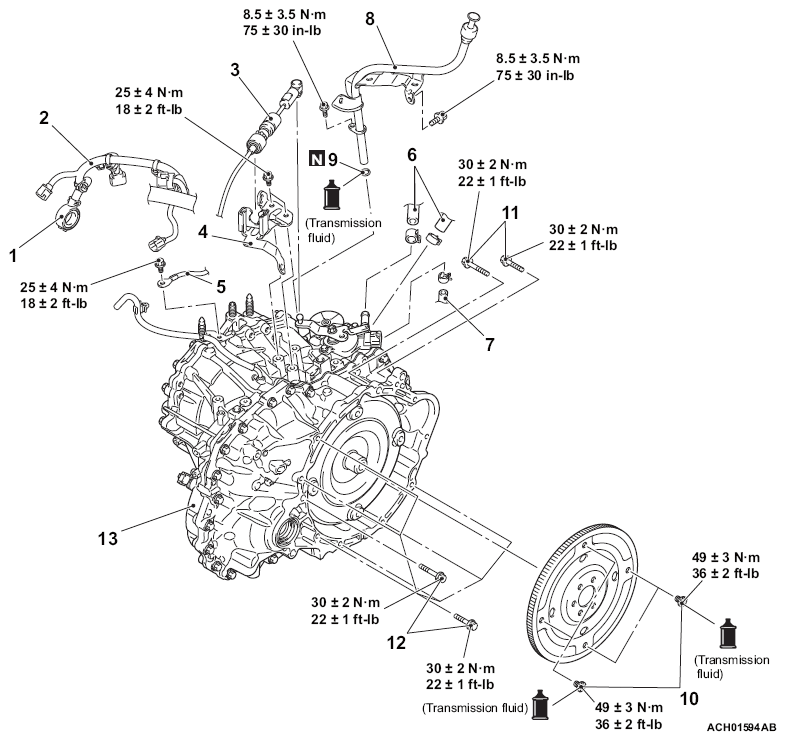

| Removal steps | |||
|---|---|---|---|
| <<A>> | 1. | CVT assembly connector connection | |
| 2. | Connector and wiring harness connection | ||
| <<B>> | >>B<< | 3. | Transaxle control cable connection |
| 4. | Transaxle control cable bracket | ||
| 5. | Battery ground | ||
| 6. | Water hose connection | ||
| 7. | Oil cooler return hose connection (Refer to TRANSMISSION FLUID COOLER AND COOLER LINE ) | ||
| 8. | Oil filler tube assembly | ||
| 9. | O-ring | ||
| • | Battery bracket A, Battery bracket B (Refer to - Loose Panel REMOVAL AND INSTALLATION ). | ||
| • | Starter (Refer to - Starting System STARTER RELAY CONTINUITY CHECK ). | ||
| <<C>> | 10. | Torque converter and drive plate coupling bolt | |
| 11. | Transaxle assembly coupling bolt | ||
| • | Supporting the engine and transaxle assembly with a garage jack. | ||
| <<D>> | • | Engine assembly holding | |
| • | Transaxle mounting bracket and transaxle mounting insulator (Refer to - Transaxle Mounting REMOVAL AND INSTALLATION ). | ||
| • | Engine roll rod assembly (Refer to - ENGINE ROLL STOPPER ROD ). | ||
| <<E>> | 12. | Transaxle assembly coupling bolt | |
| <<E>> | >>A<< | 13. | Transaxle assembly |
Required Special Tools :
- MB991895: Engine Hanger
- MB992277: Clip Remover
- MB992906: Engine Hanger Attachment
