Removal And Installation: Notes
Post-installation operation
- Transmission range switch and control cable adjustment check (Refer to TRANSMISSION RANGE SWITCH CONTINUITY CHECK .)
- Selector lever operation check (Refer to SELECTOR LEVER OPERATION CHECK .)

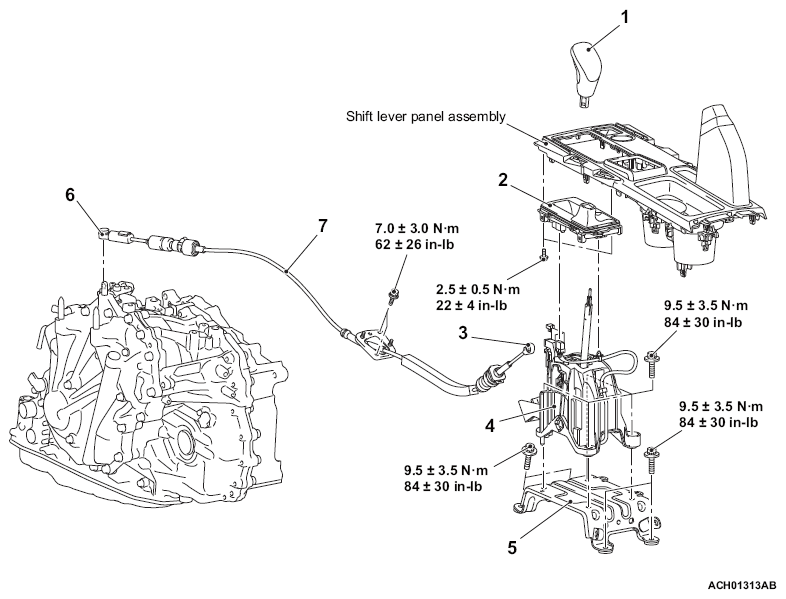

| Removal steps | ||
|---|---|---|
| • | Move the selector lever to the N position. | |
| <<A>> | 1. | Selector lever knob |
| • | Floor console panel assembly removal (Refer to - FLOOR CONSOLE ASSEMBLY .) | |
| 2. | Shift indicator panel assembly | |
| • | Floor console base, floor console base bracket removal (Refer to - FLOOR CONSOLE ASSEMBLY .) | |
| 3. | Transaxle control cable connection (selector lever side) | |
| • | Connectors and harnesses connections | |
| 4. | Selector lever assembly | |
| 5. | Selector lever bracket | |
| • | Air cleaner case removal (Refer to - AIR CLEANER .) | |
| • | Battery and battery tray removal (Refer to - BATTERY .) | |
| • | Control unit cover, SRS-ECU removal (Refer to - SRS-ECU REMOVAL AND INSTALLATION .) | |
| 6. | Transaxle control cable connection (transaxle side) | |
| 7. | Transaxle control cable | |
