Removal And Installation: Notes

Pre-removal operation

Post-installation operation

Engine Room Under Cover Front B Removal (Refer to - UNDER COVER ).
Transmission Fluid Draining (Refer to TRANSMISSION FLUID CHANGE ).
Transfer Oil Draining (Refer to TRANSFER OIL CHECK <AWD> ).
Propeller Shaft Removal (Refer to - PROPELLER SHAFT ).
Drive Shaft <LH, RH> Removal (Refer to - DRIVE SHAFT ASSEMBLY ).

Drive Shaft <LH, RH> Installation (Refer to - DRIVE SHAFT ASSEMBLY ).
Propeller Shaft Installation (Refer to - PROPELLER SHAFT ).
Transfer Oil Refilling (Refer to TRANSFER OIL CHECK <AWD> ).
Transfer Oil Check (Refer to TRANSFER OIL CHECK <AWD> ).
Transmission Fluid Refilling (Refer to TRANSMISSION FLUID CHANGE ).
Transmission Fluid Check (Refer to ESSENTIAL SERVICE ).
Engine Room Under Cover Front B Installation (Refer to - UNDER COVER ).

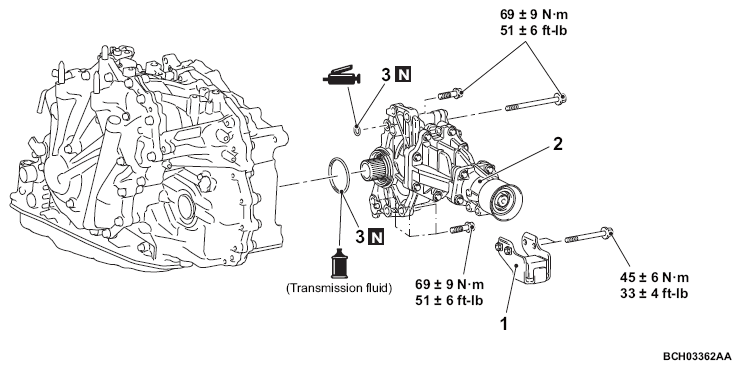

Fig 1: Removing/Installing Transfer Assembly Components Location With Torque Specification (AWD)

G16566147

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
	1.	Dynamic damper <Up to 20 Model year>
<<A>>	2.	Transfer assembly
	3.	O-ring
