Disassembly And Reassembly: Notes
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

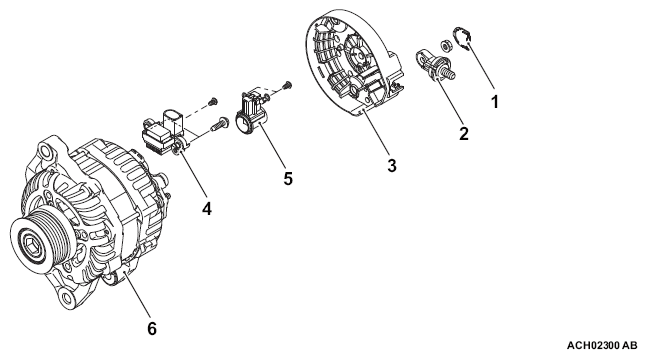

| Disassembly steps |
| <<A>> |
1. |
Cover |
| |
2. |
Terminal B |
| <<B>> |
3. |
Cover |
| |
4. |
Regulator assembly |
| |
5. |
Brush holder assembly |
| |
6. |
Pulley and front bracket assembly |
