Disassembly And Reassembly: Notes

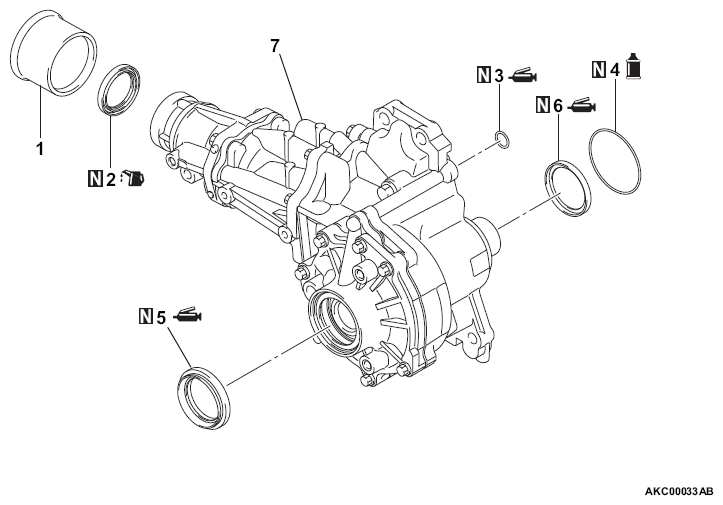

G16566228Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Disassembly steps
>>C<< 1. Dust seal guard
  2 Oil seal
  3. O-ring
  4. O-ring
>>B<< 5. Oil seal
>>A<< 6. Oil seal
  7. Transfer

Required special tools:
