How To Use This Information: Components: Notes

THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques, lubrication points, service information of the PARTS CATALOG (e.g. SEC. 440) and other information necessary to perform repairs.

The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG .

Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.

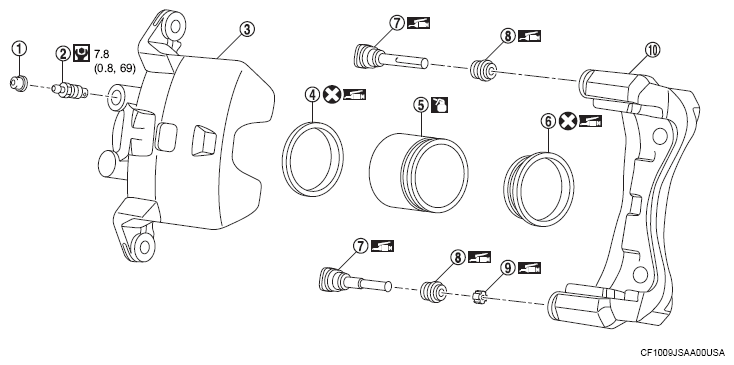

Fig 1: Exploded View Of Brake Assembly With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

PART DESCRIPTION

1	Cap
2	Bleeder valve
3	Cylinder body
4	Piston seal
5	Piston
6	Piston boot
7	Sliding pin
8	Sliding pin boot
9	Bushing
10	Torque member
	: Apply rubber grease.
	: Apply brake fluid.
	: N.m (kg-m, in-lb)
	: Always replace after every disassembly
