Component Operation

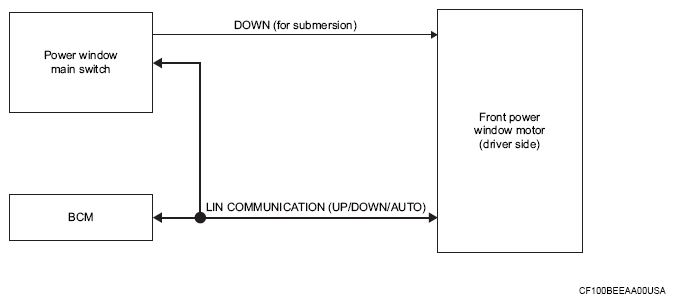

- Front power window motor (driver side) receives signal from power window main switch and BCM via LIN communication, then opens/closes door glass.
- When the power window main switch is submerged in water during the vehicle is submerged, the UP/DOWN/AUTO control by LIN communication is stopped. Then the DOWN signal circuit between the power window main switch and the front power window motor (driver side) enables only DOWN operation.
