1977-78 Models

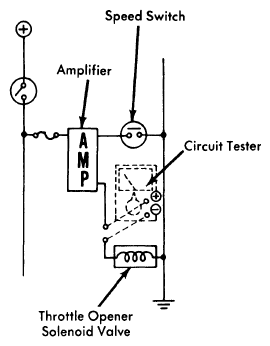

- Locate amplifier at rear of speedometer. Set circuit tester on DC range and connect test leads between amplifier and throttle opener solenoid. See Fig 1.
- Turn ignition on. Tester pointer should deflect when ignition is turned on. If pointer does not deflect, and solenoid and speed detecting switch circuits are okay, replace defective amplifier.
