Pickup Models

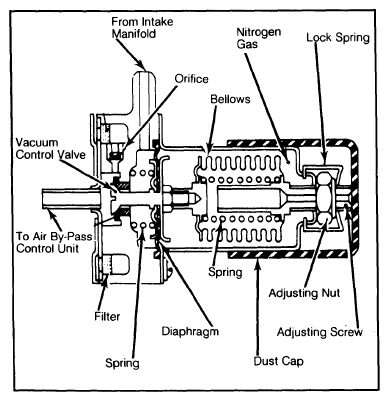

The boost control system is nitrogen filled and contains a diaphragm and control unit. When intake manifold vacuum exceeds a pre-determined value, the diaphragm opens the control unit. This allows manifold vacuum to act upon the air by-pass control system.
