Solenoid Valves

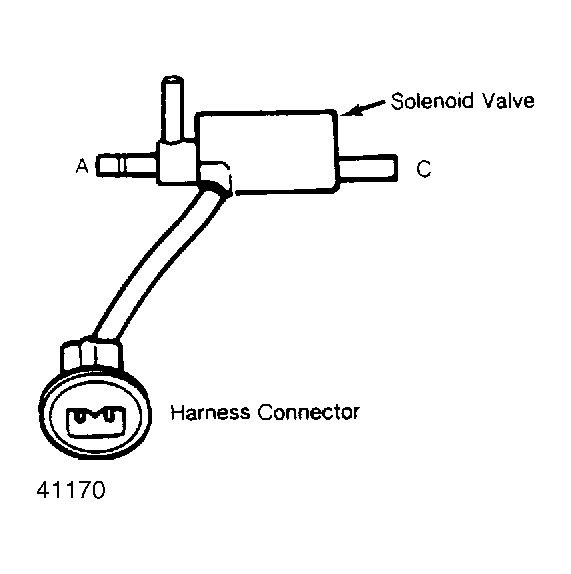

- Remove solenoid valves. Check air passages by drawing air and blowing through valve at designated points. Air flow should exist from B to C, and should be blocked from A to B and C to A.
- Apply battery voltage at harness connectors and check air flow again. Flow should now exist from A to B, but not from B to C or C to A. See Fig 1 .
