System Check: Pulsar

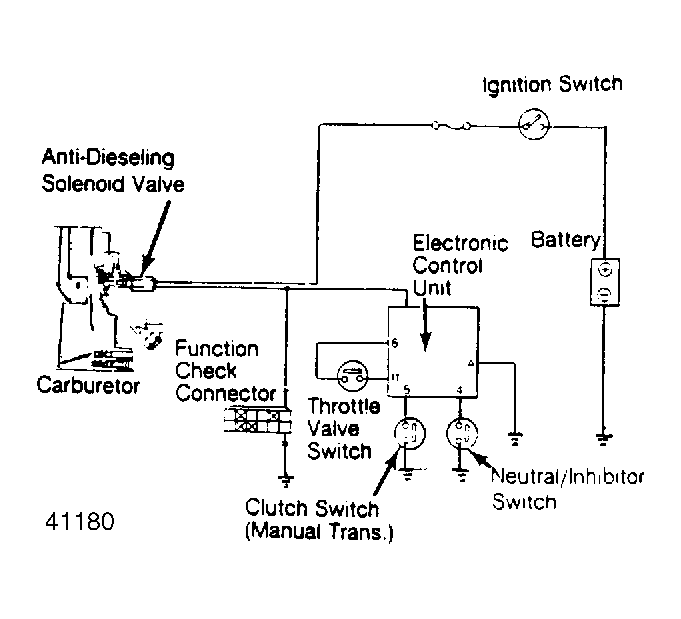

- Visually check fuel shut-off system. Replace any broken switches. Warm engine to operating temperatures and make sure choke valve is fully open.
- Connect circuit tester to the function check connector. Turn the ignition switch to "ON" position. Check for presence of voltage across Y and B wires. Start engine and warm it up.
- Disconnect anti-dieseling solenoid valve connector and make sure that engine does not keep idling. If it does, replace anti-dieseling solenoid valve assembly.
