PCV System: Description

NOTE: Diesel Pickup models do not use a PCV system.

The crankcase ventilation system is designed to return blow-by gases to engine, through intake manifold and air cleaner. Gasoline models use a PCV valve to control blow-by flow, while Maxima diesel models have a crankcase emission control valve to perform the same function.

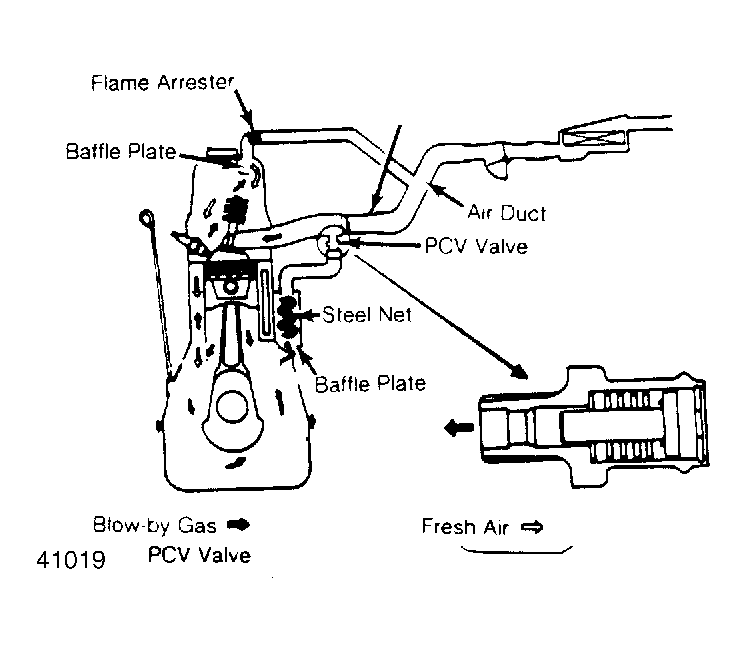

Fig 1: Crankcase Ventilation System (Gasoline Maxima & Non-Turbo 280ZX) Note direction of flow.
G41019
