Diesel Models

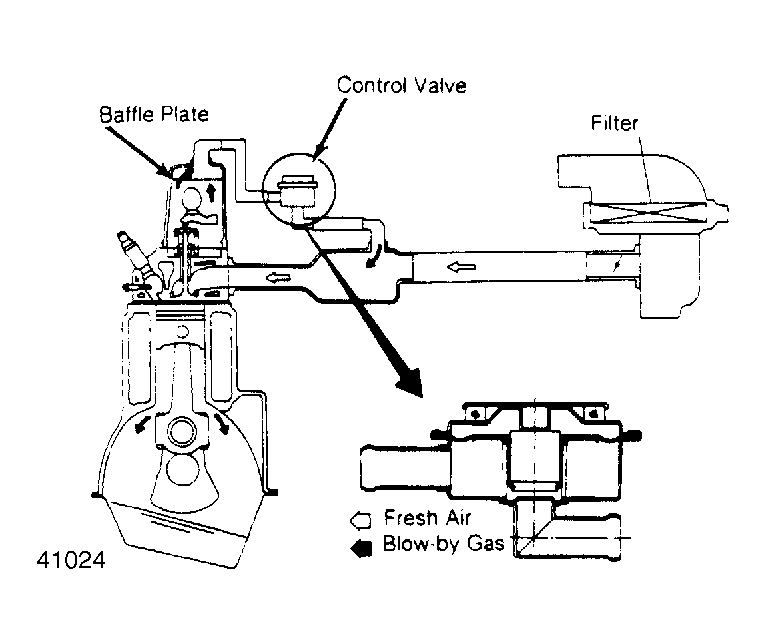

The PCV system uses a control valve that mixes air from air cleaner with crankcase vapors from valve cover. These vapors are directed into intake manifold for burning. The control valve reduces flow rate when throttle is closed so engine will not draw in excess amounts of air around crankshaft oil seal.
