System Overview

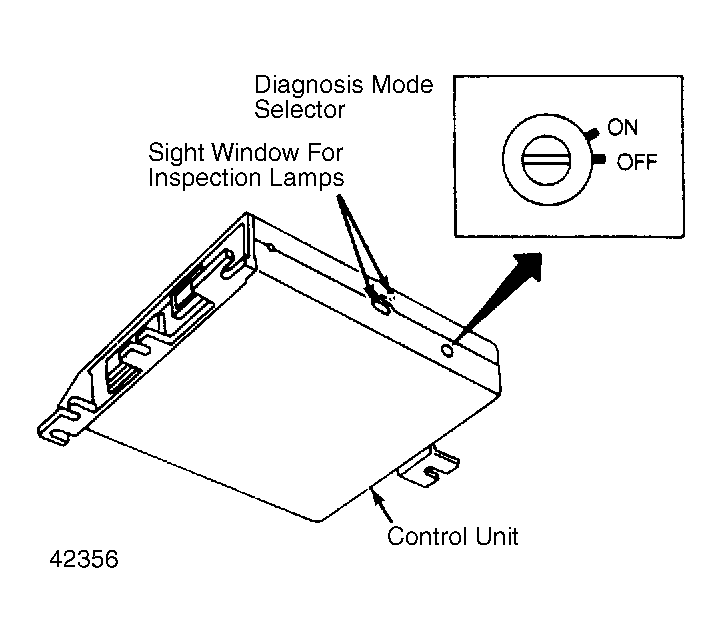

Malfunctioning system is determined by number of blinks of both Red and Green light emitting diodes on EFI control unit. See Fig 1 . Red should blink, followed by Green. Red represents the tenth digit and Green represents unit digits. For example, if Red blinks 2 times followed by Green blinking 5 times, this would represent code 25.
