Component Testing: Injector

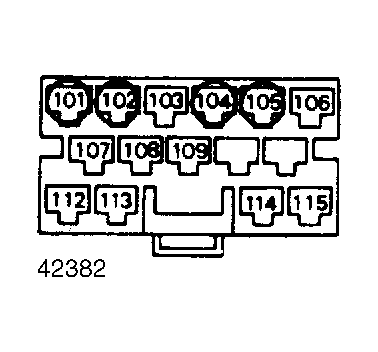

  1. Disconnect 15-pin connector. Check voltage between ground and terminals 101, 102, 104, 105, 106 and 114 (Maxima) See Figure . If there is battery voltage, test is complete. If not, check each injector for continuity.
  2. Check for continuity between 2 terminals of injector connector. If there is continuity, check harness and repair if necessary. If there is no continuity, replace injector.
