ECC Control System - 1.8L Turbo: Description: Notes

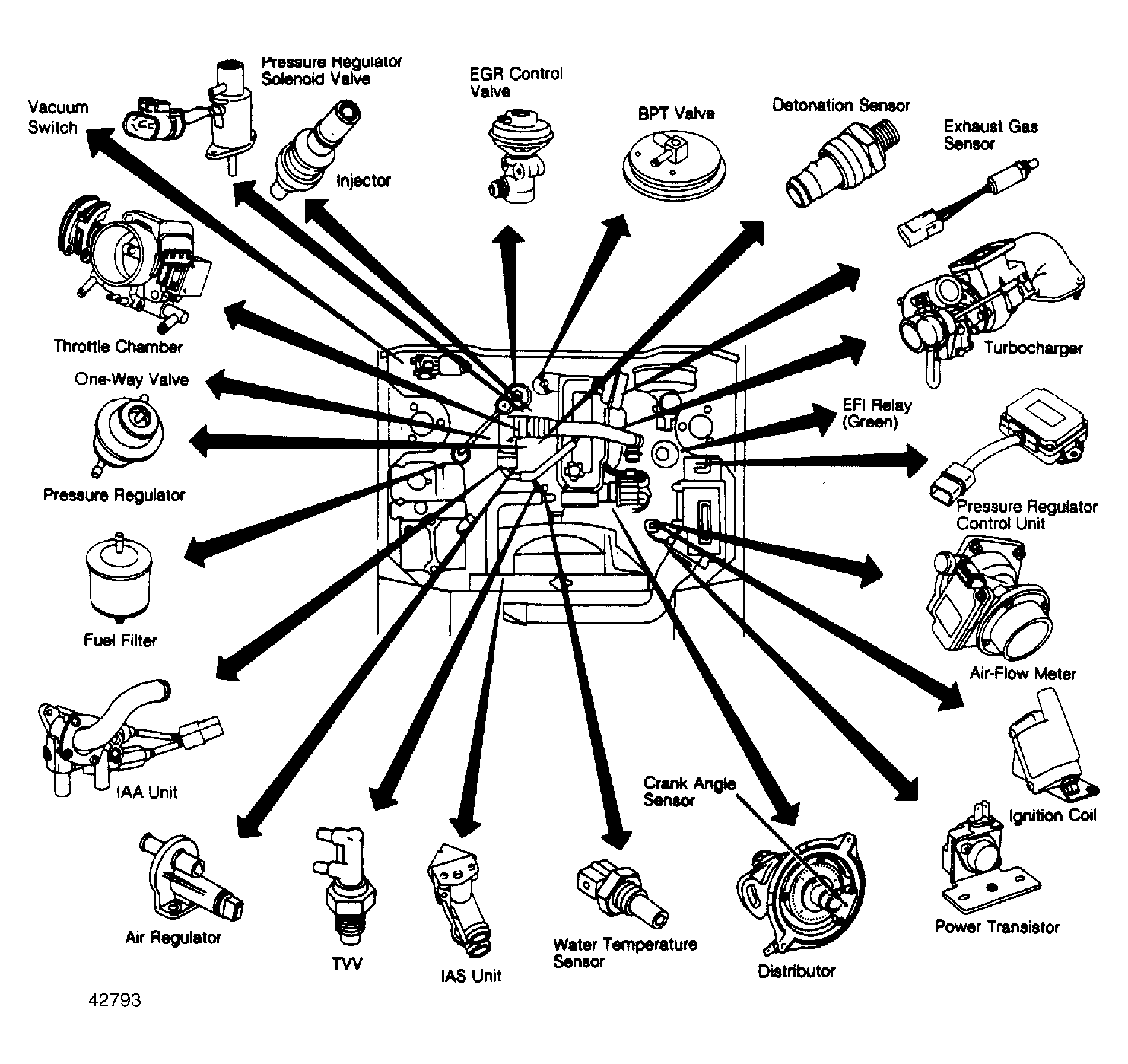

The Electronic Concentrated Engine Control System (ECCS) is a computerized emission, ignition, and fuel control system. A single control unit monitors a variety of sensors, including the following:
- Mass Airflow Meter
- Crankshaft Angle Sensor
- Temperature Sensor
- Detonation Sensor
- Exhaust Gas Oxygen Sensor
- Throttle Valve Switch
The computer processes information from these sensors and controls these engine functions:
- Air Injection
- Air Regulator Control
- EGR Operation
- Engine Idle Speed
- Fuel Injectors
- Fuel Pump Operation
- Ignition Timing
- Mixture Ratio
