1986 1/2 Pickup

Check resistance values between power transistor terminal, body ground and ignition coil minus terminal. See Fig 1 . If no good, replace power transistor.

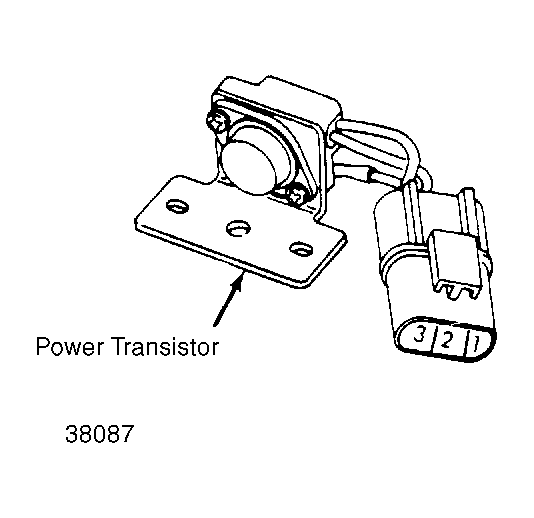

Fig 1: Checking Power Transistor Resistances
G38087
