DRIVEABILITY/System Inspection Charts

Fig 1: Driveability Inspection Tables (1 of 2)

Fig 2: Driveability Inspection Tables (2 of 2)

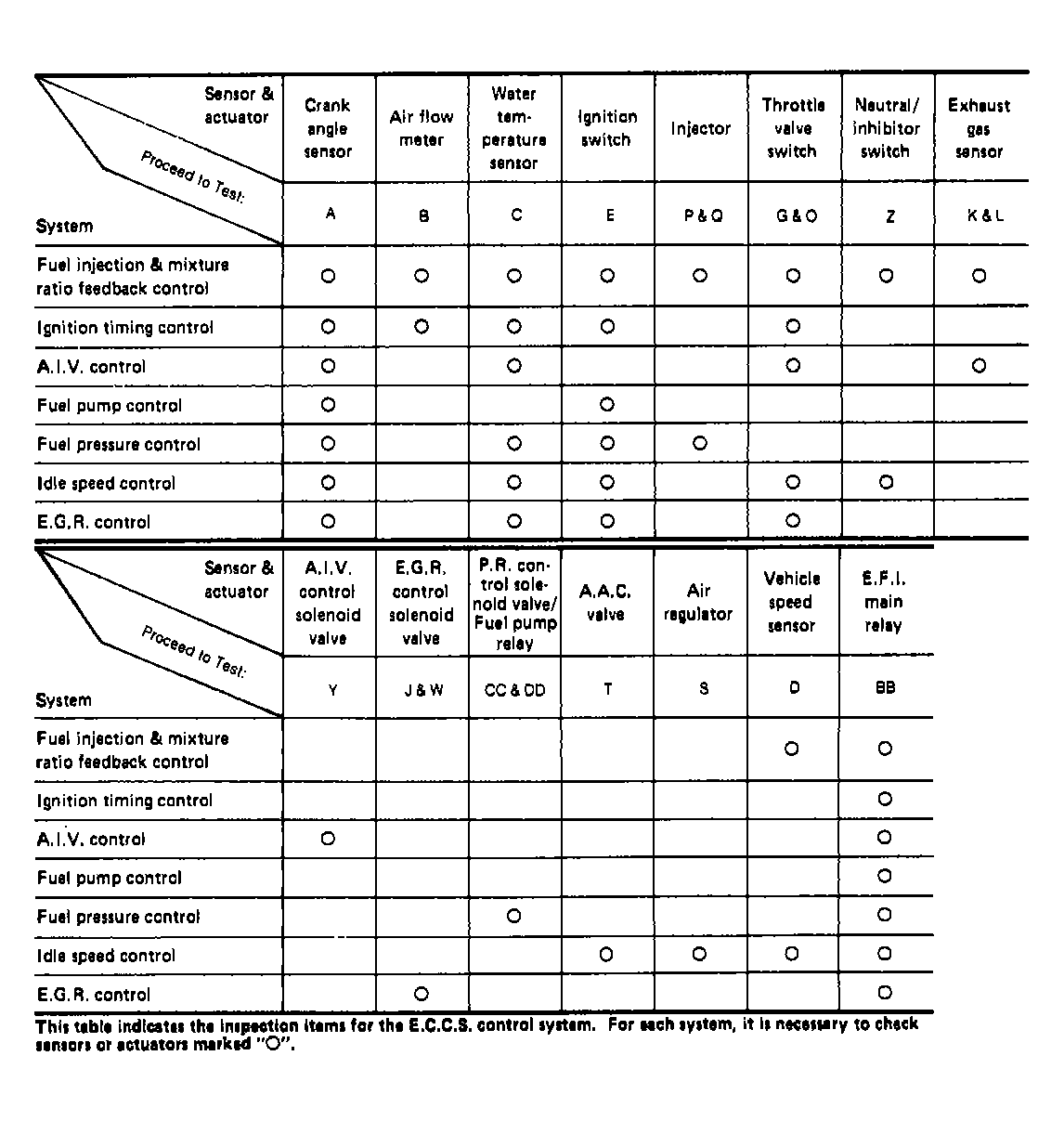

Fig 3: Systems Inspection Tables & Test Letter Reference Charts

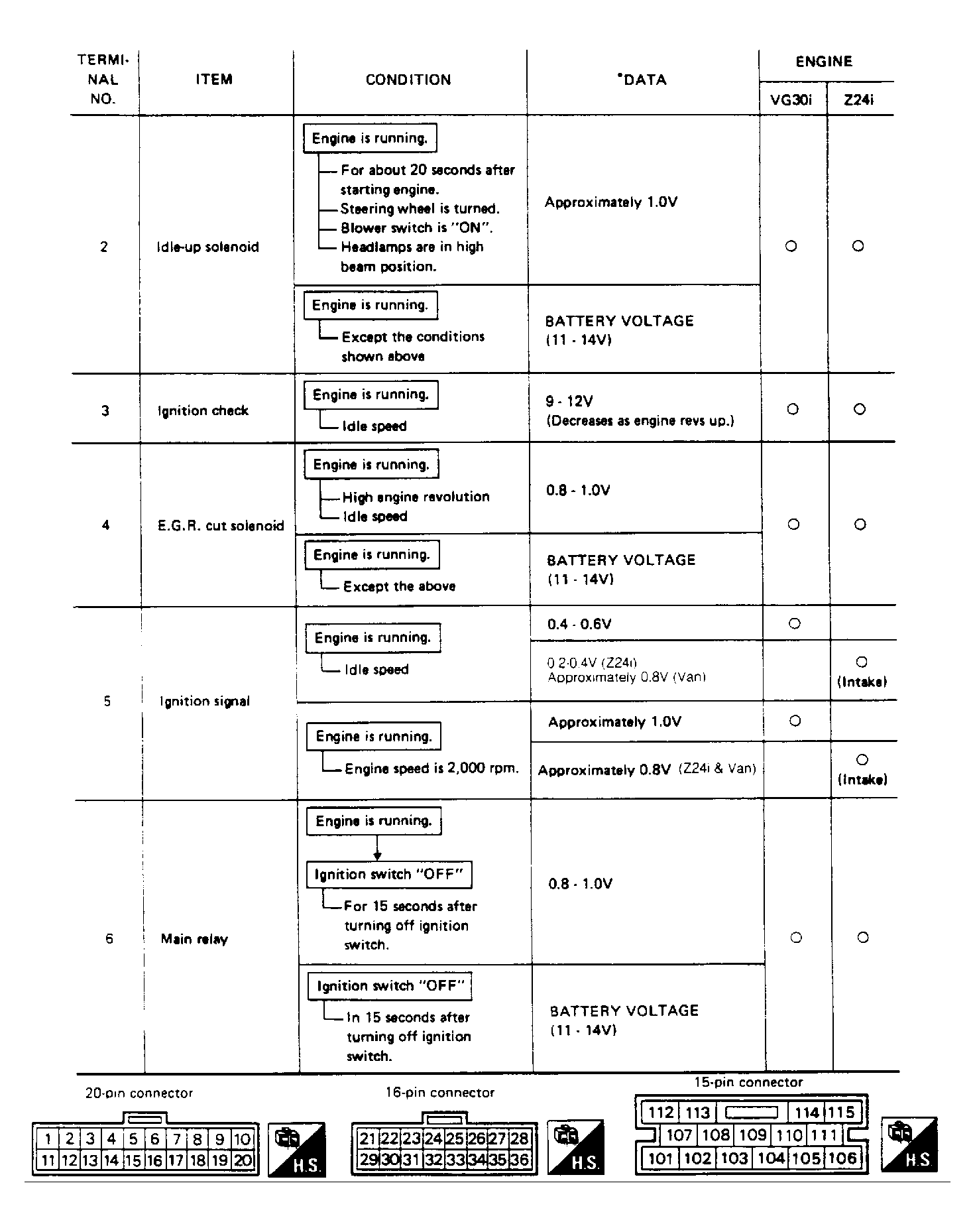

Fig 4: ECU Input/Output Voltage Signal Inspection Table (1 of 4)

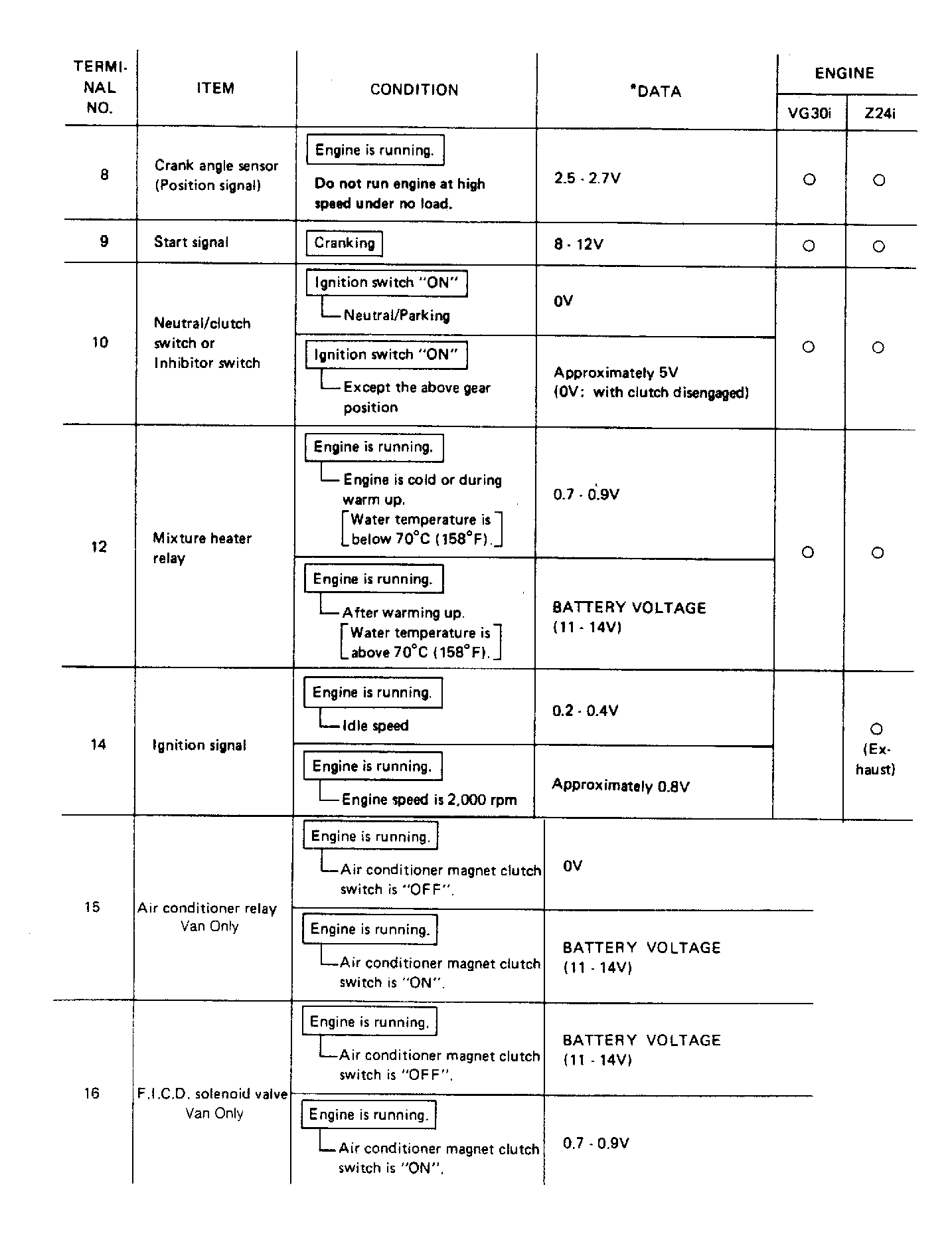

Fig 5: ECU Input/Output Voltage Signal Inspection Table (2 of 4)

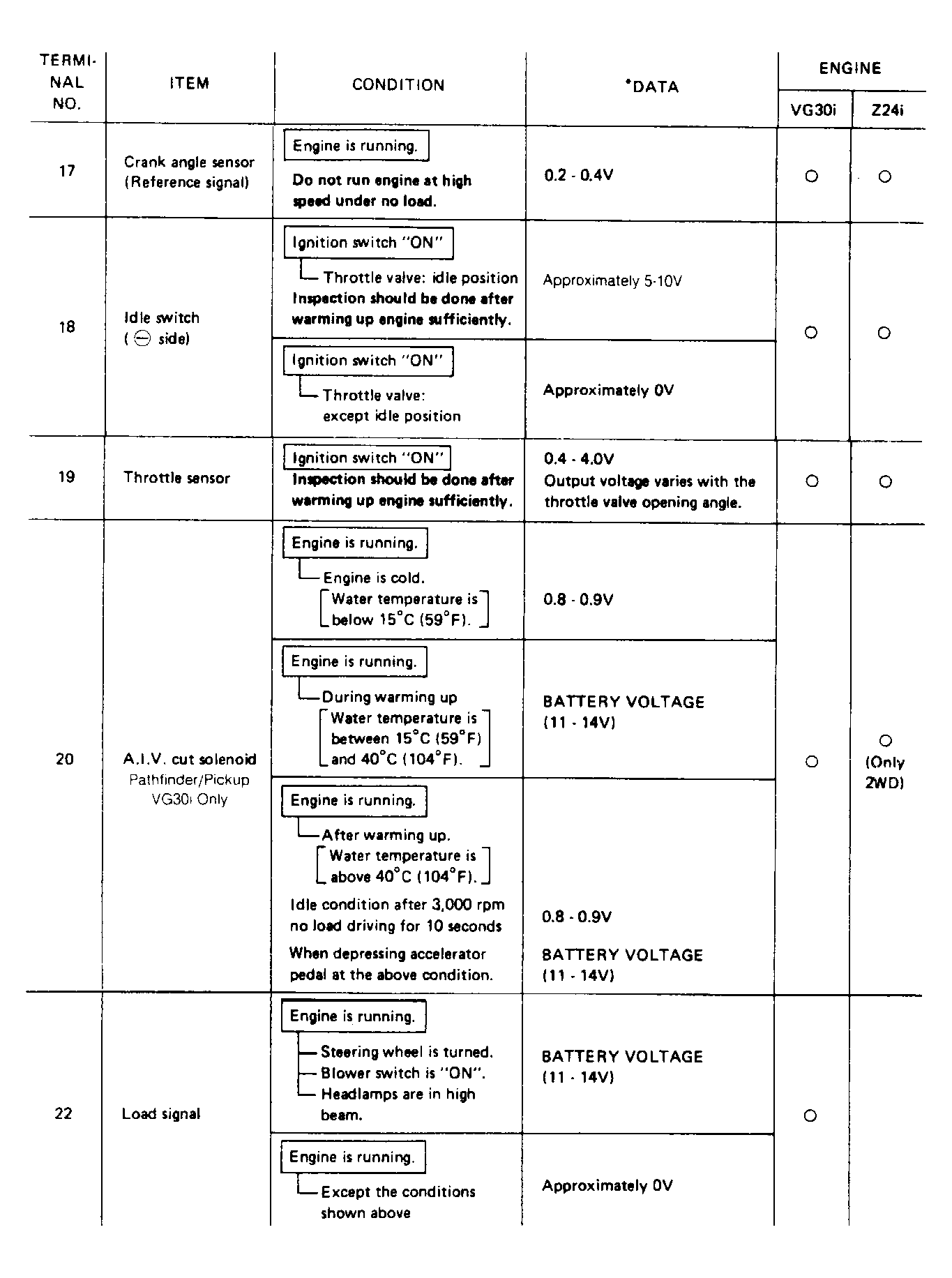

Fig 6: ECU Input/Output Voltage Signal Inspection Table (3 of 4)

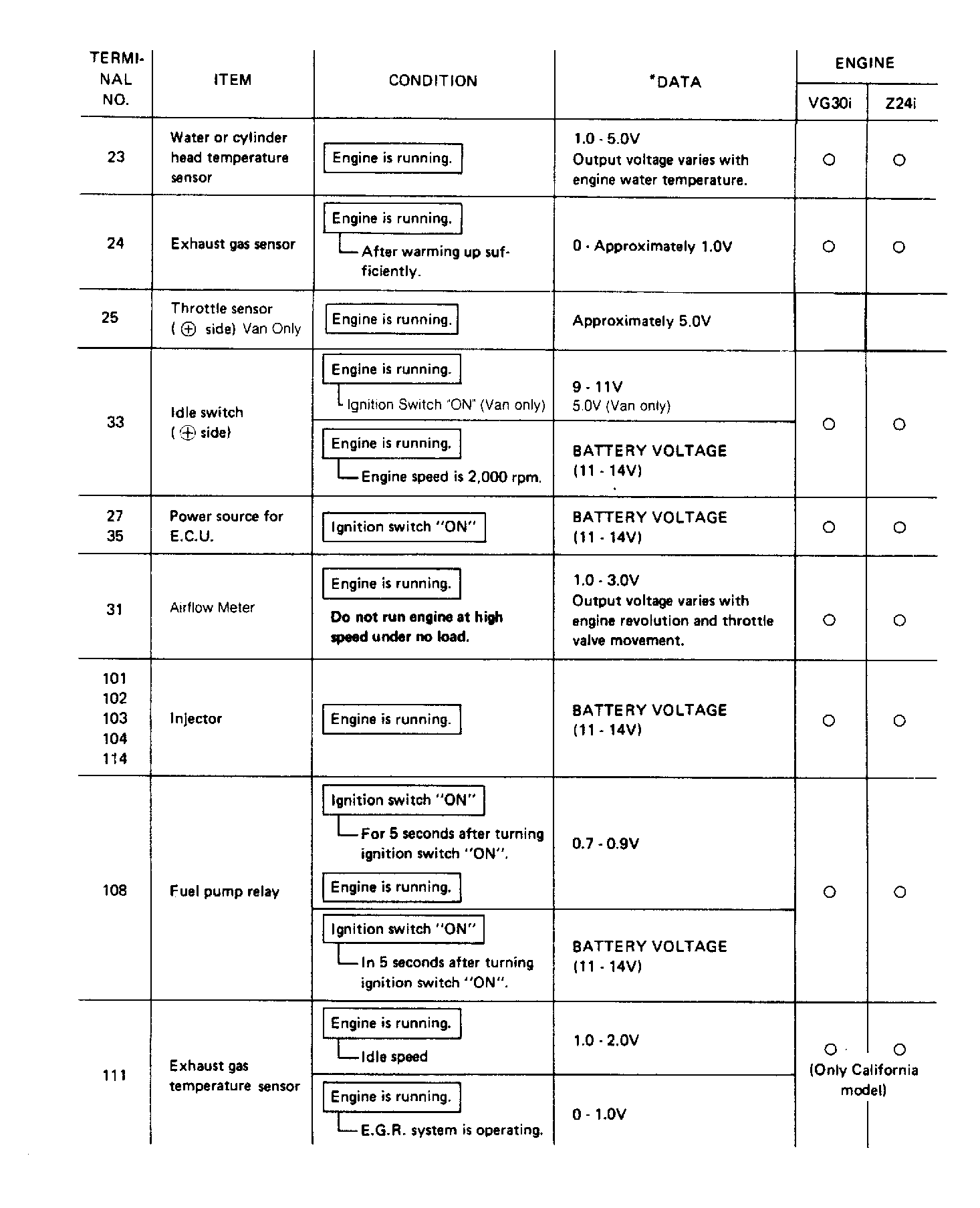

Fig 7: ECU Input/Output Voltage Signal Inspection Table (4 of 4)
