Code 22, Fuel Pump

Fig 1: Test E, Maxima

G61678

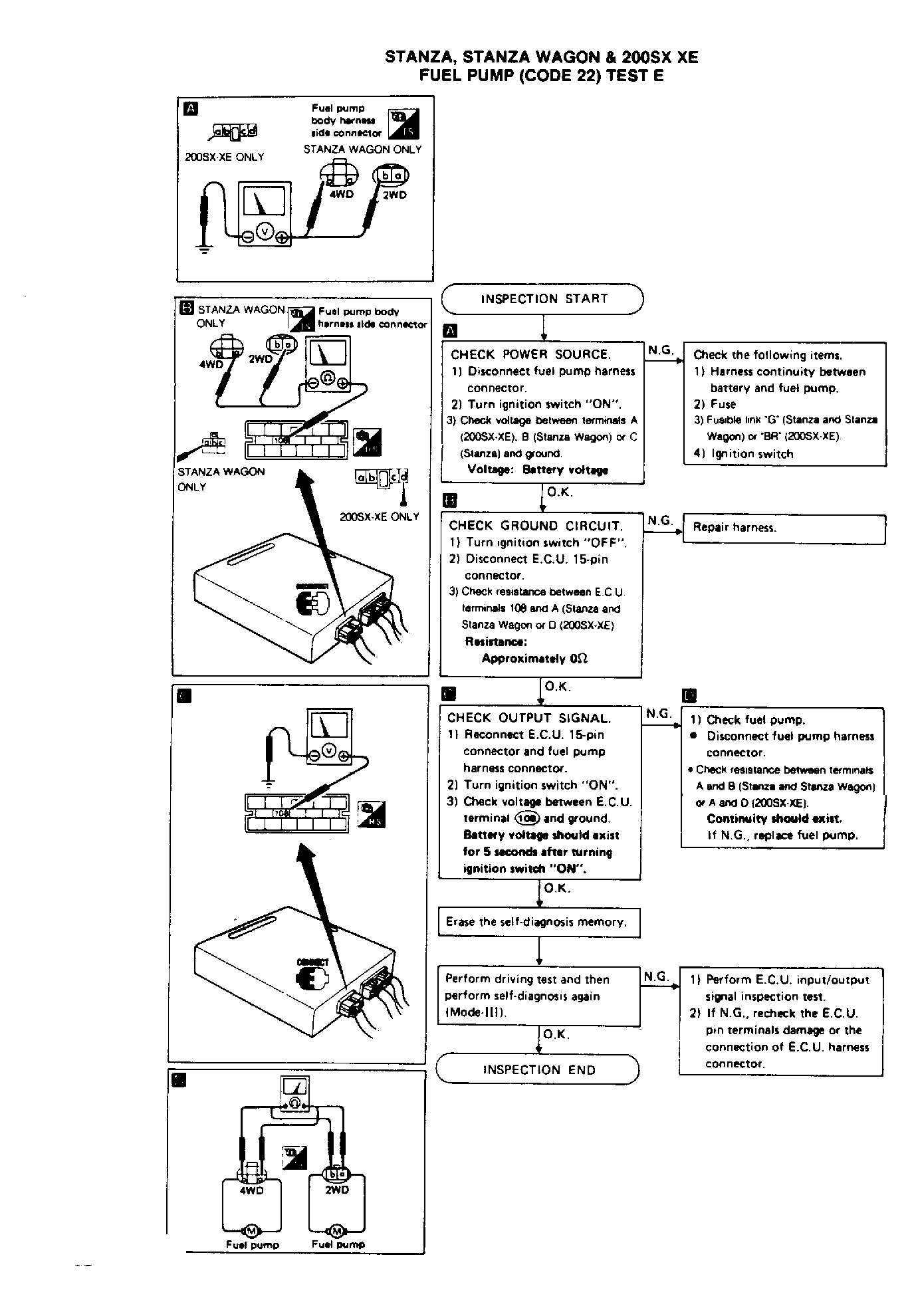

Fig 2: Test E, Stanza, Stanza Wagon & 200SX XE

G61680

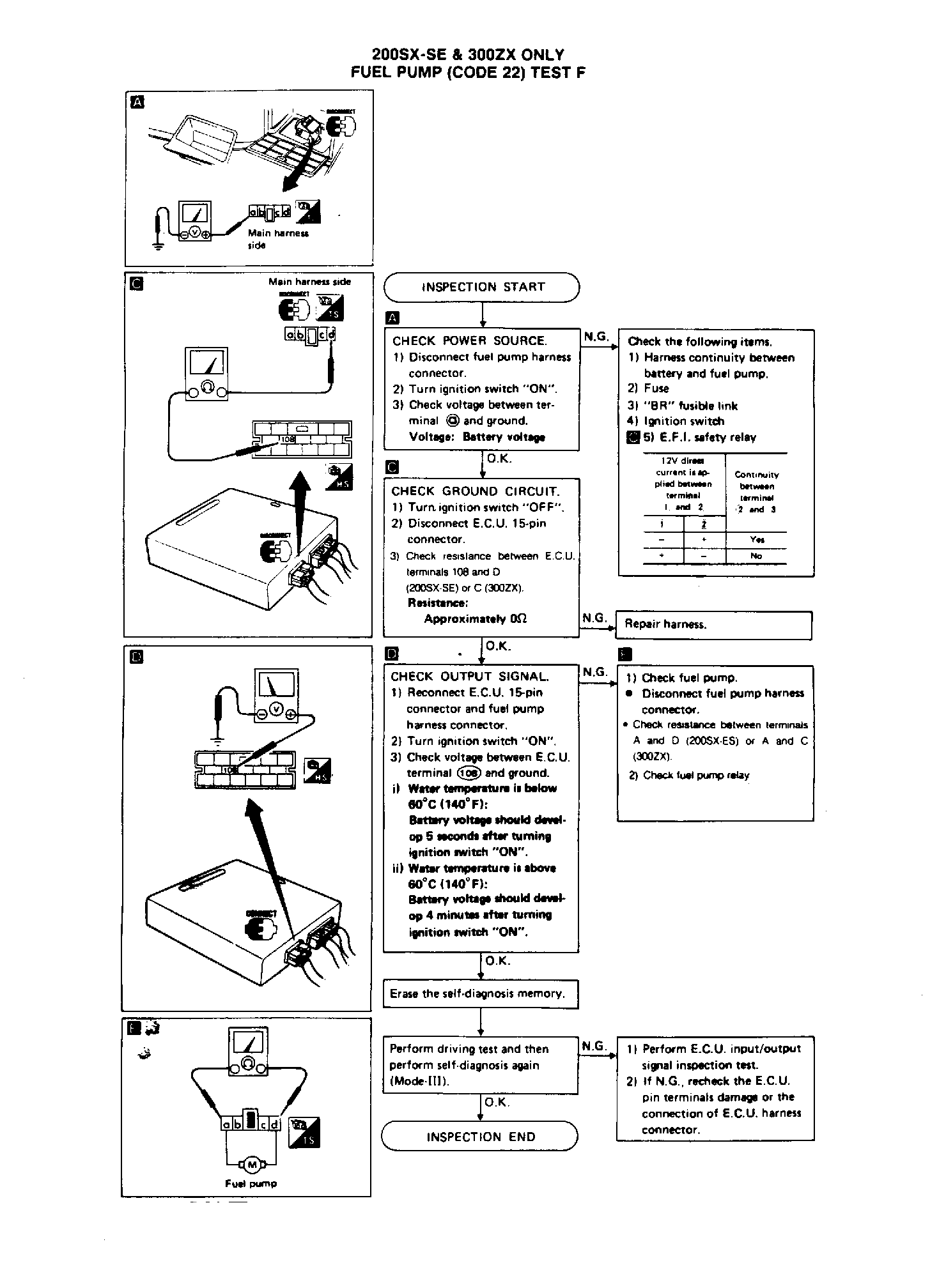

Fig 3: Test F, 200SX-SE & 300ZX

G61681
