Engine Sensors: Notes

NOTE: Vehicles do not contain all ENGINE SENSORS that are listed, nor do they control all ENGINE CONTROLS that are listed. To determine which components are in each vehicle's control system, refer to the applicable system components illustration and/or applicable wiring diagram for your vehicle application. See Fig 1 and Fig 2 .

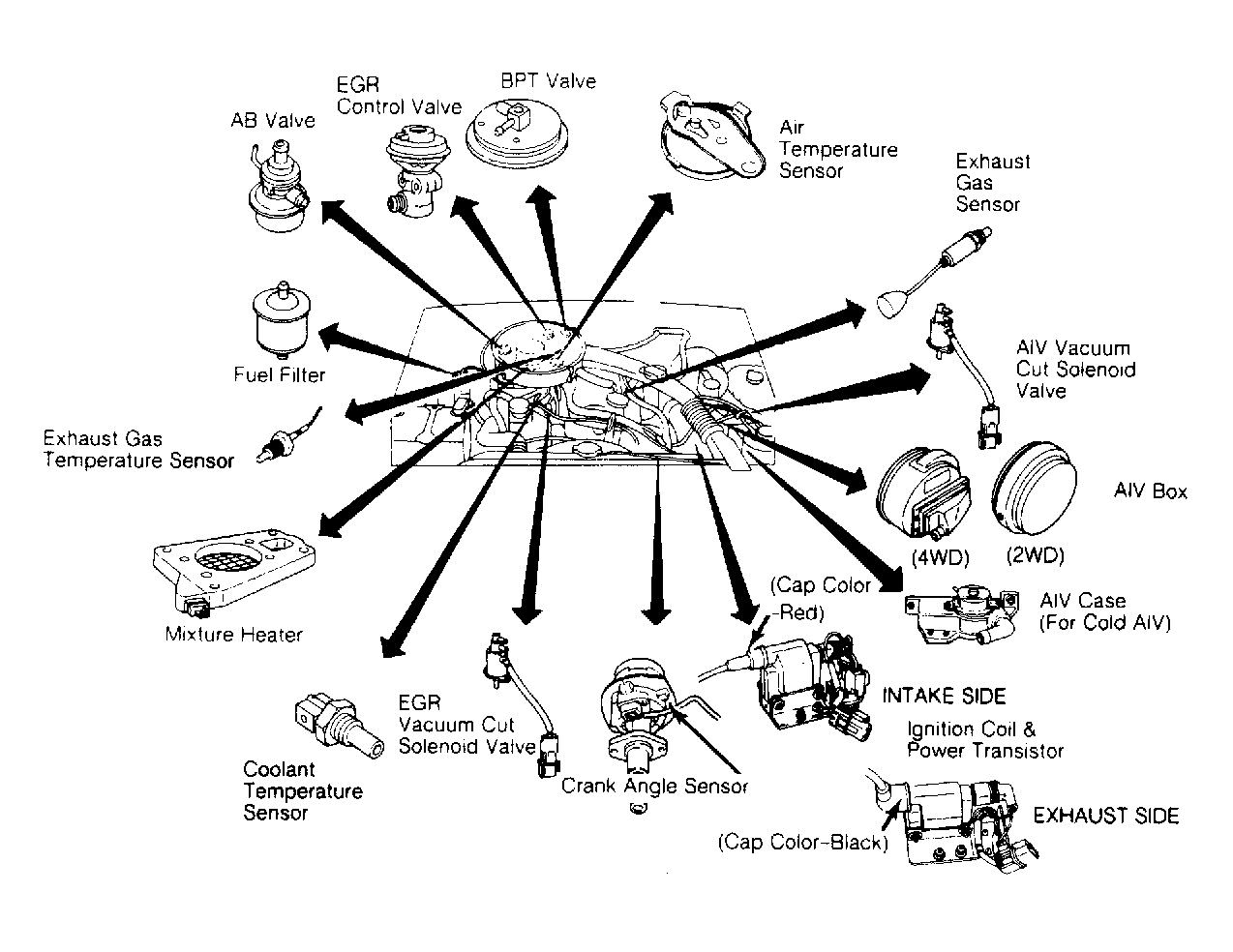

Fig 1: Pathfinder/Pickup (Z24i) ECCS Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

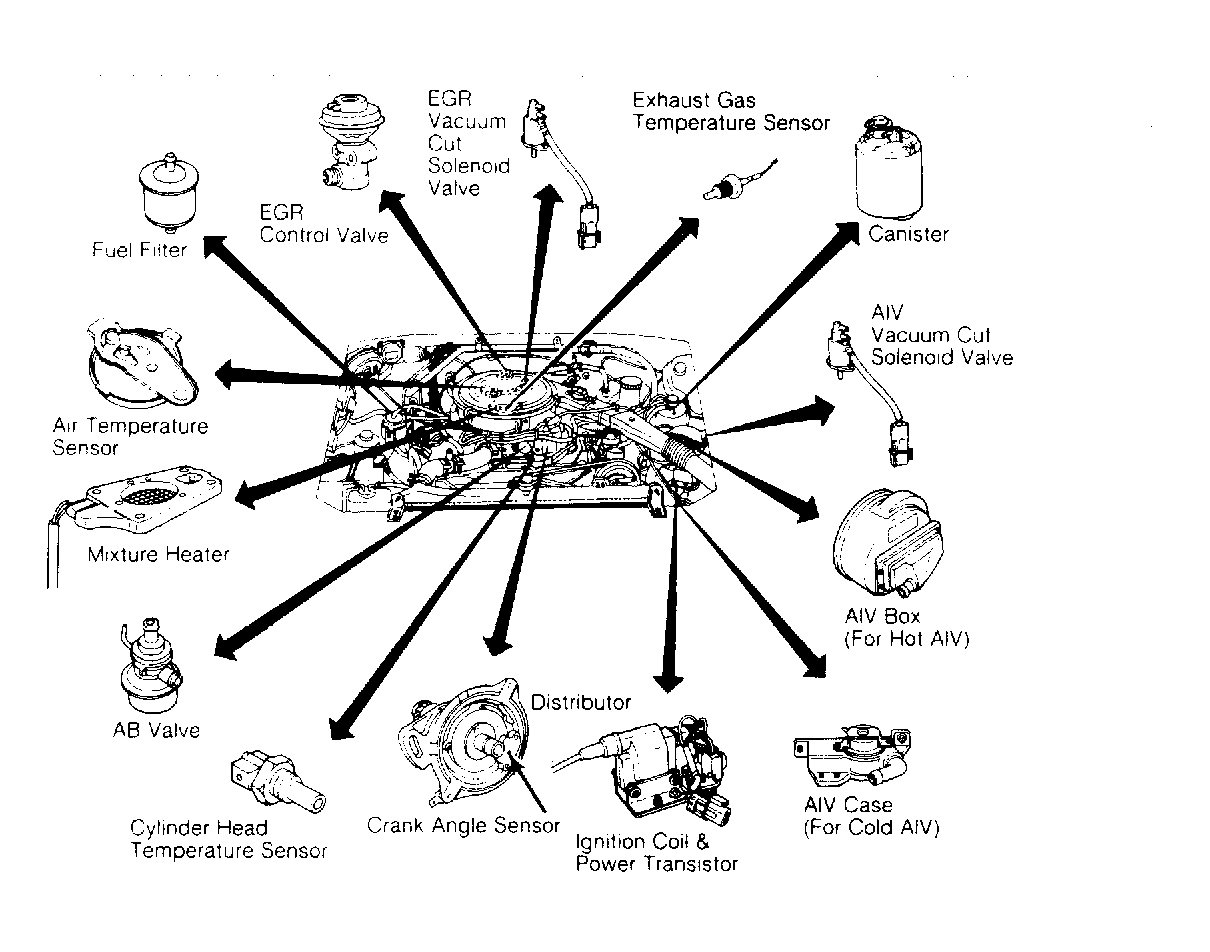

Fig 2: Pathfinder/Pickup (VG30i) ECCS Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.
