Check Charts

Fig 1: Component Test Chart Symbol Identification

Courtesy of NISSAN MOTOR CO., U.S.A.

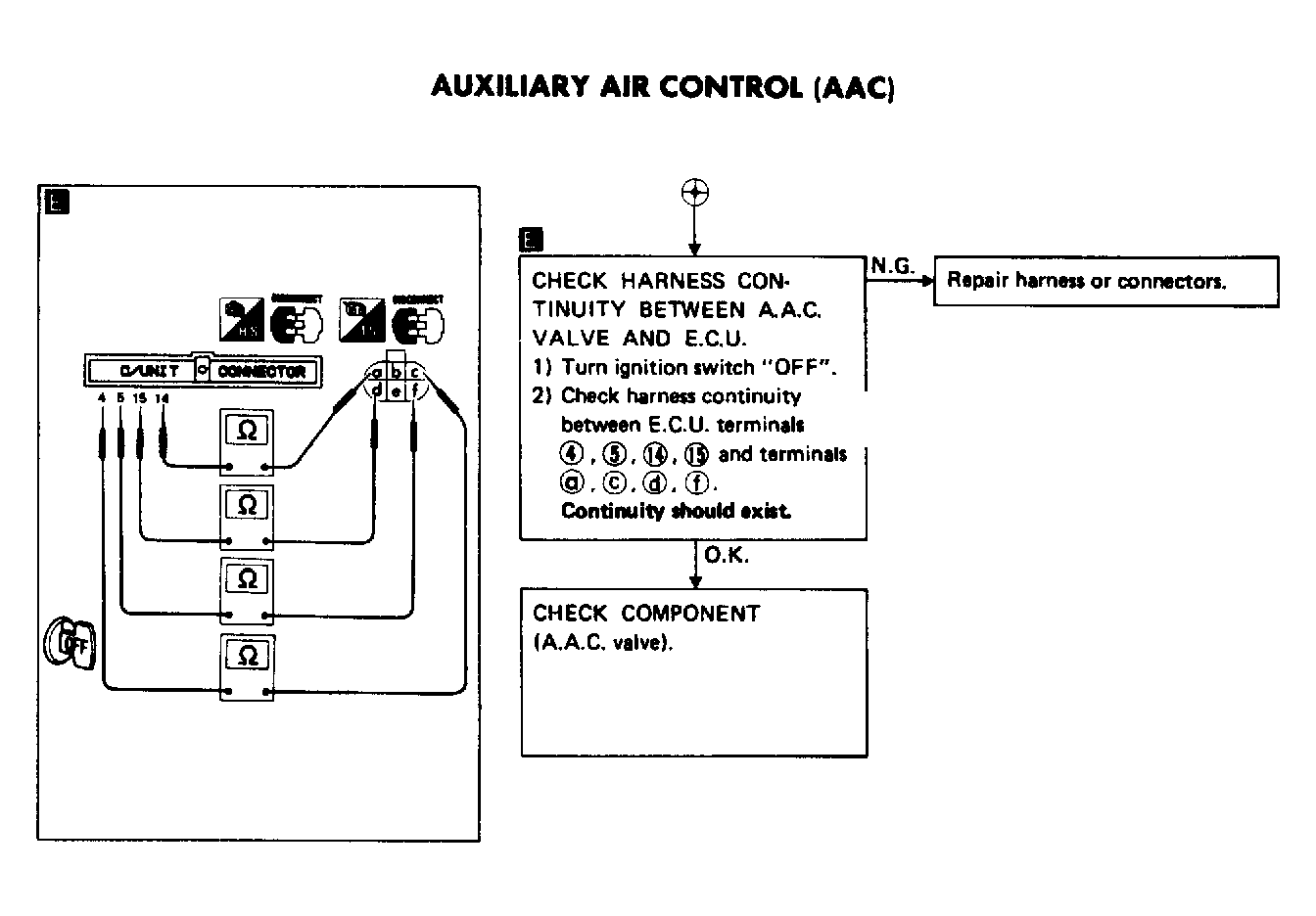

Fig 2: Auxiliary Air Control (AAC) Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

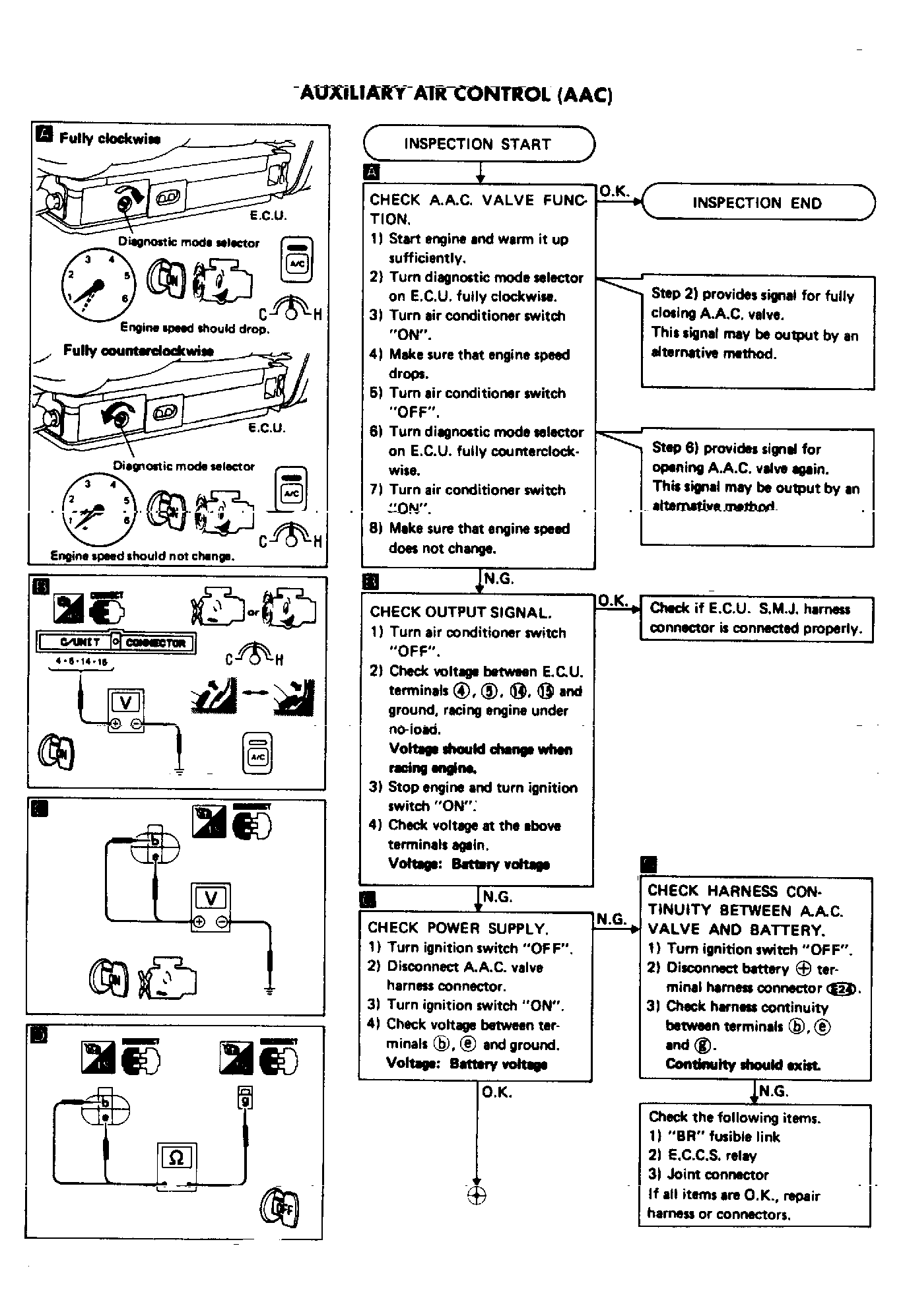

Fig 3: Auxiliary Air Control (AAC) Check Chart (Cont.)

Courtesy of NISSAN MOTOR CO., U.S.A.

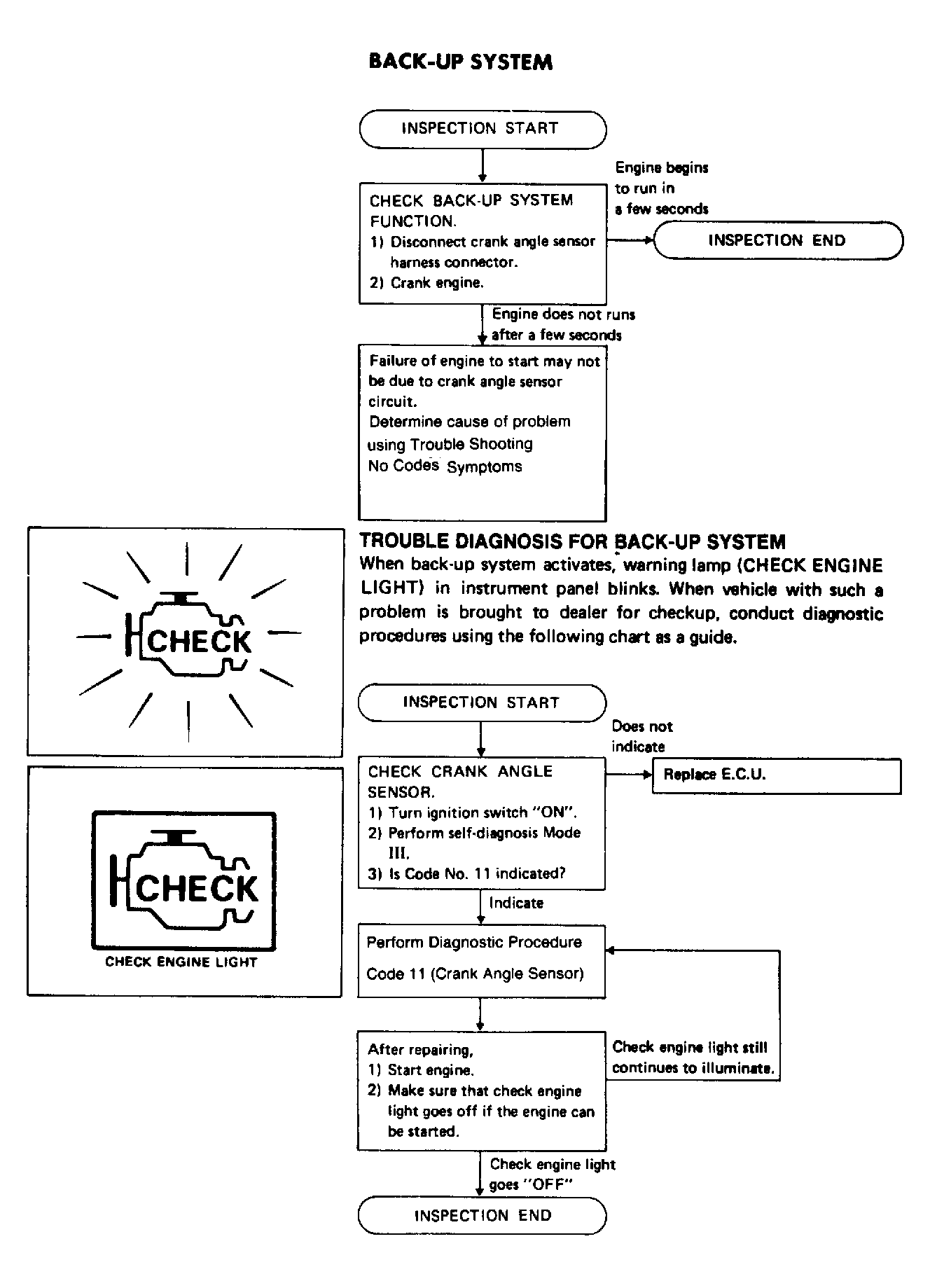

Fig 4: Back-Up System Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

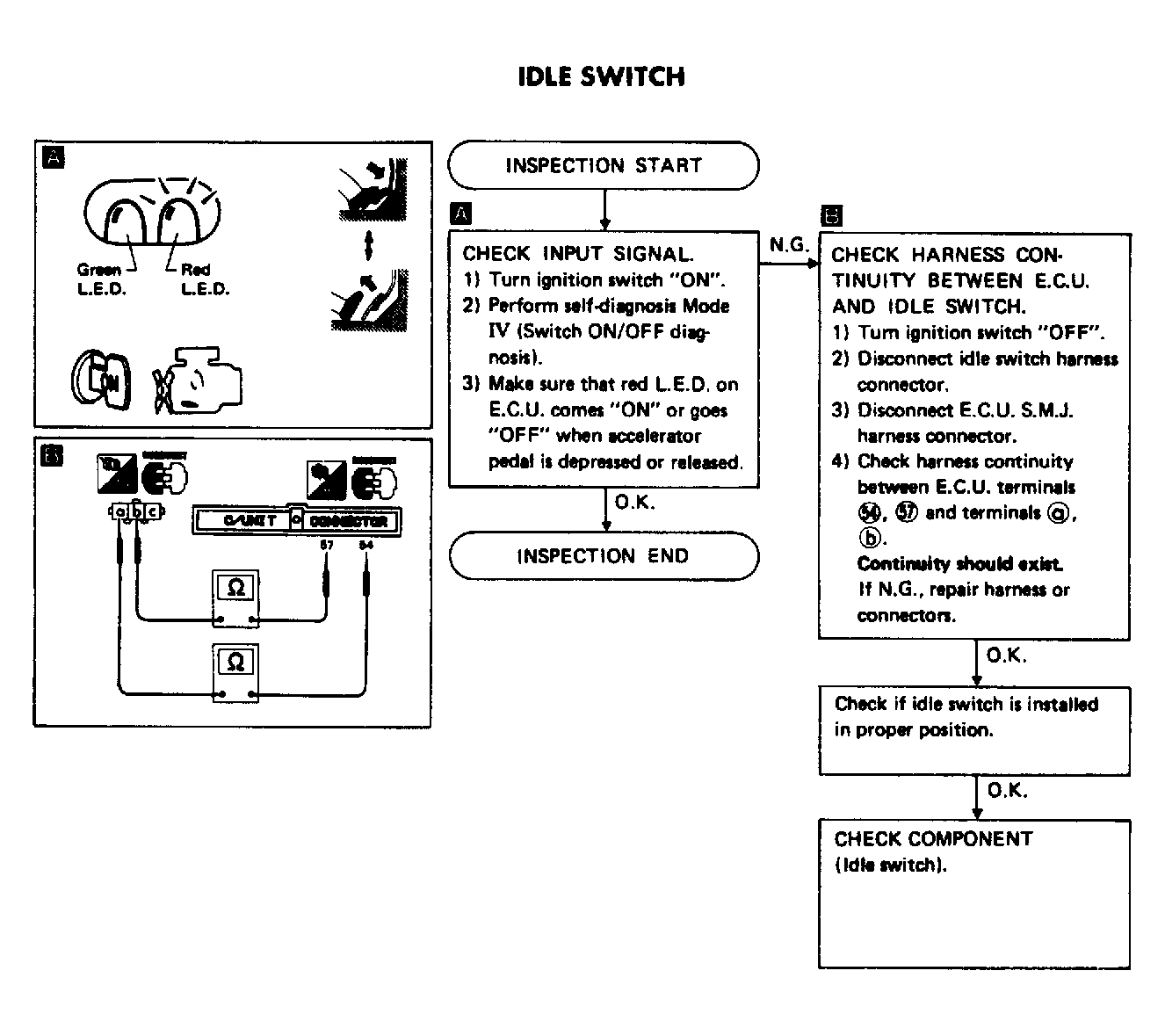

Fig 5: Idle Switch Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

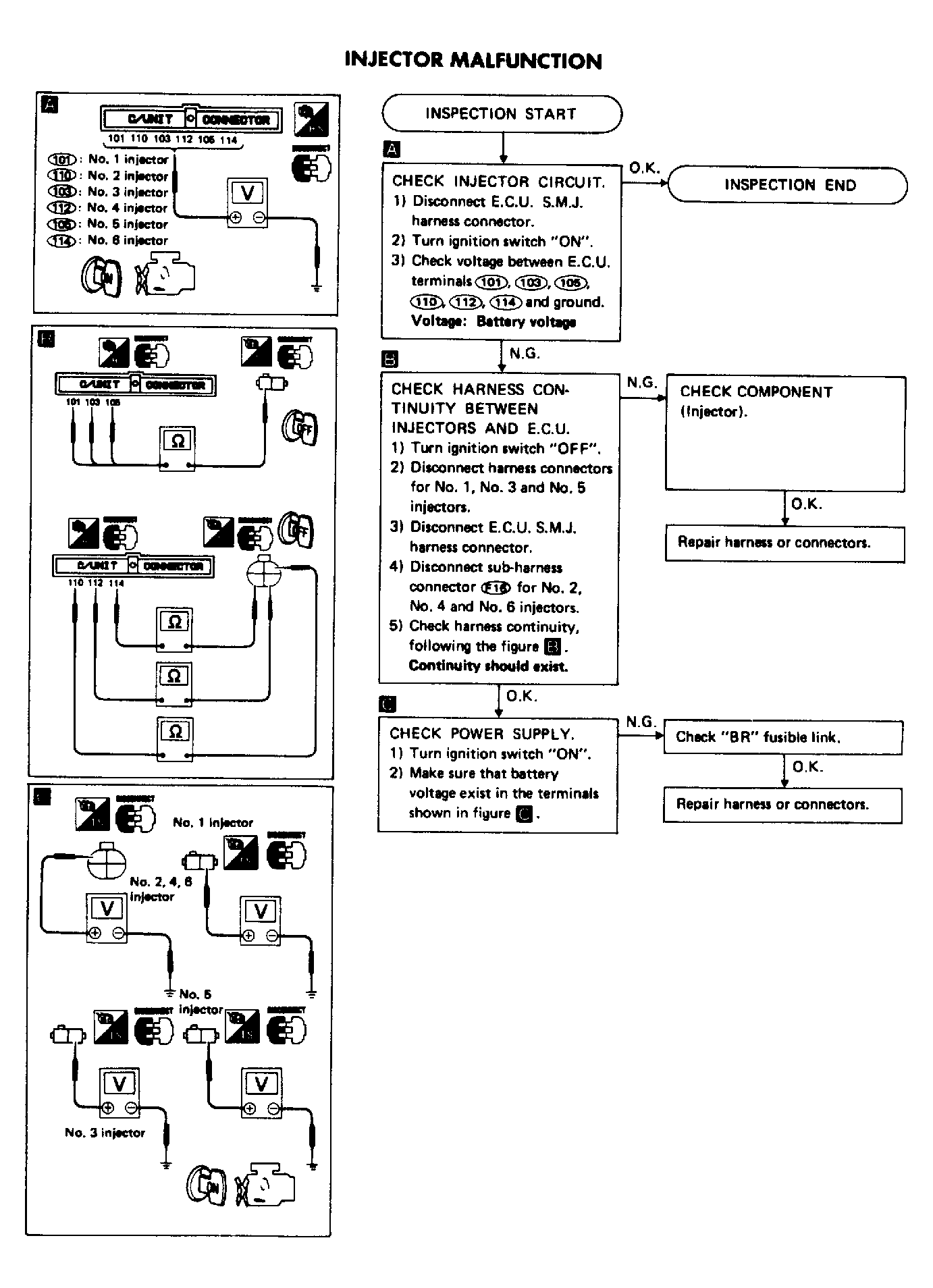

Fig 6: Injector Malfunction Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

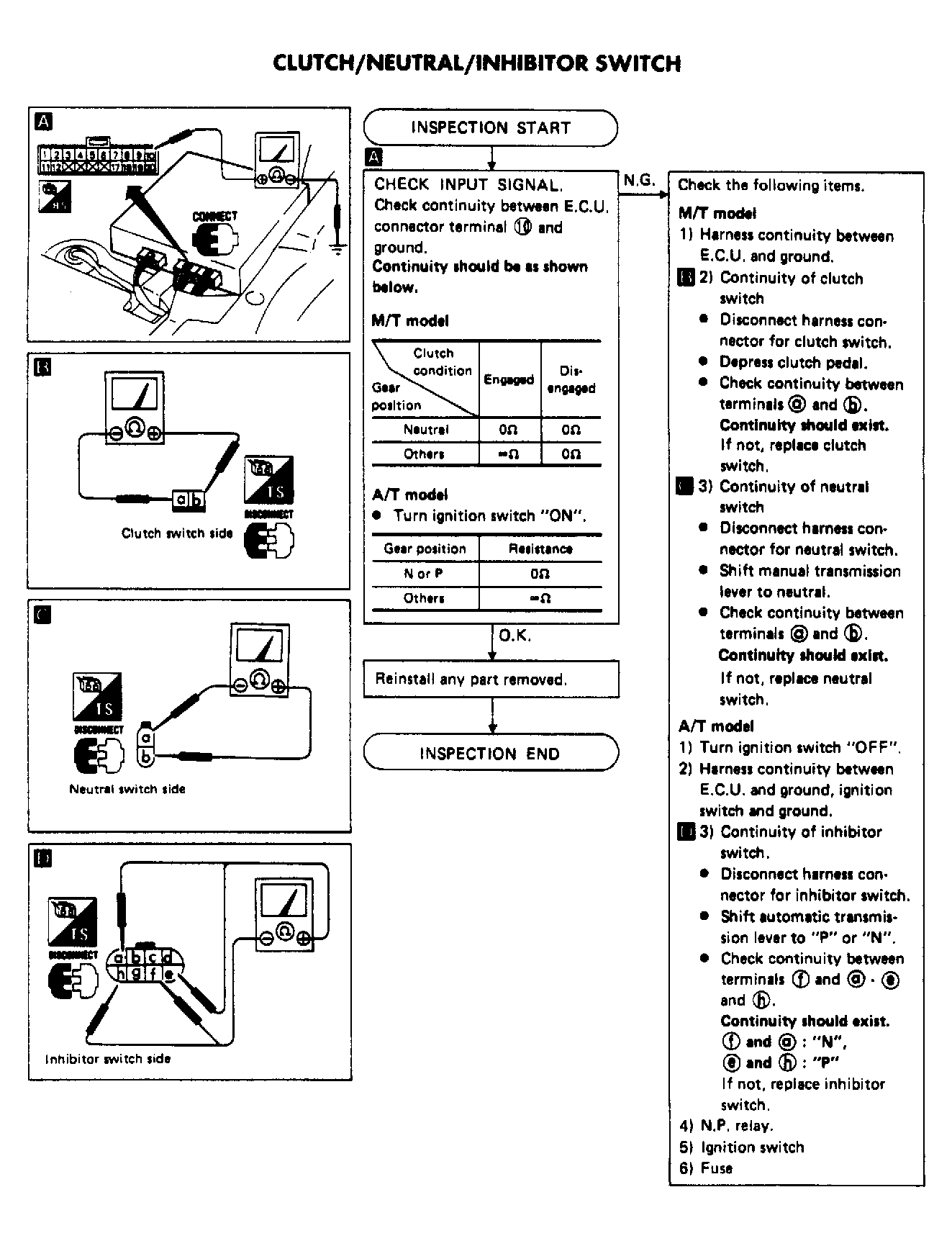

Fig 7: Clutch/Neutral/Inhibitor Switch Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

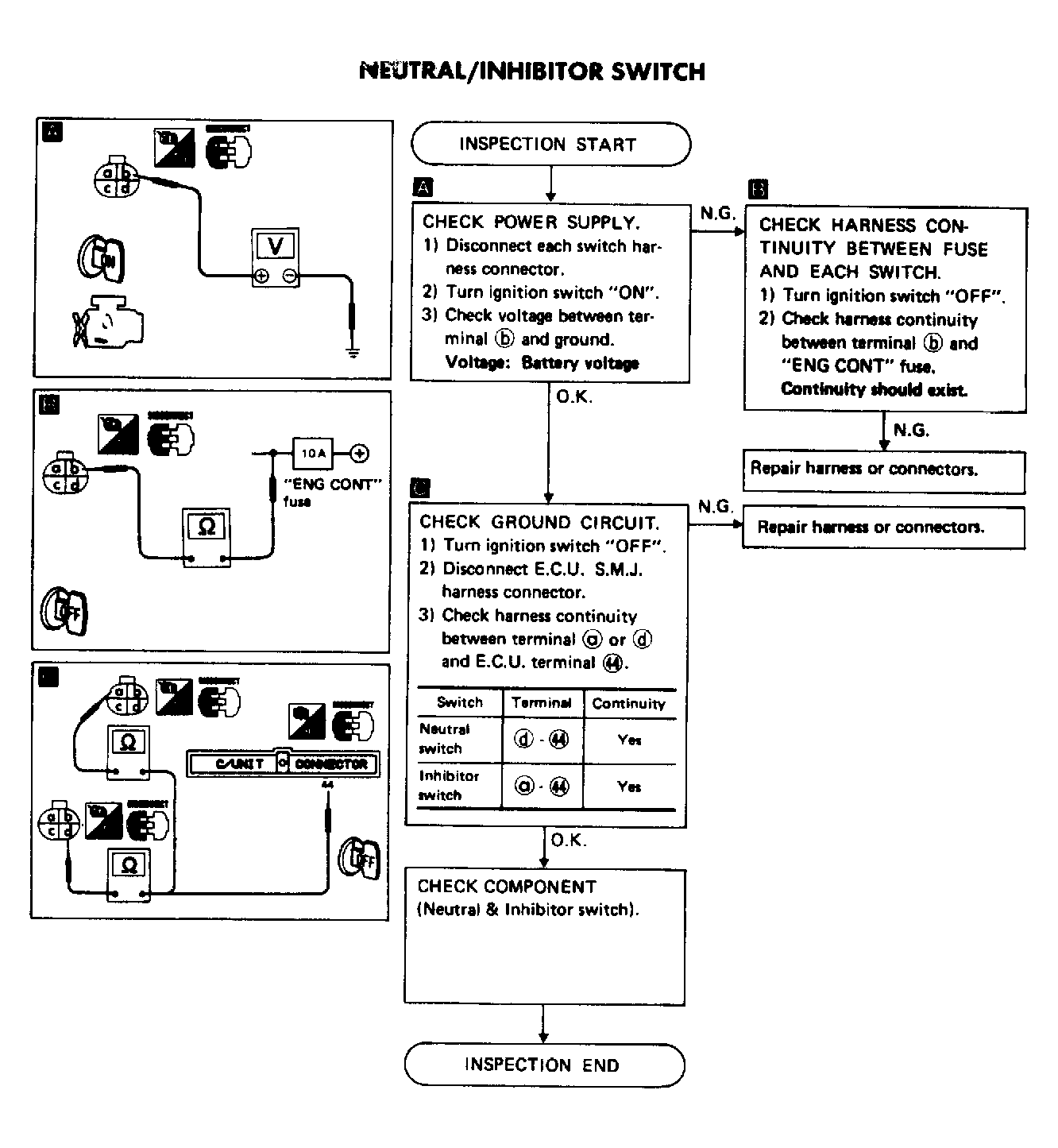

Fig 8: Neutral/Inhibitor Switch Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

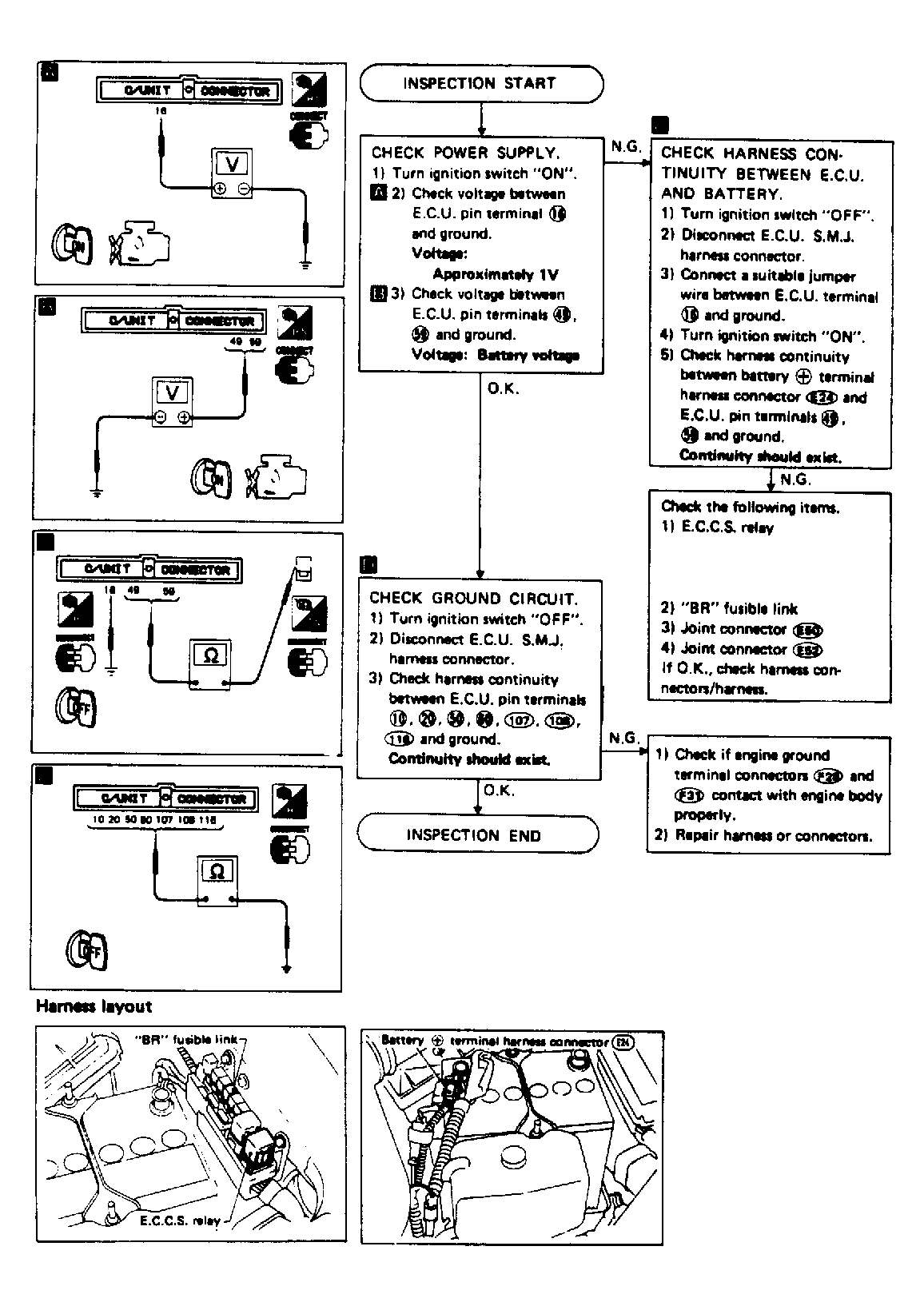

Fig 9: ECU Power Source & Ground Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

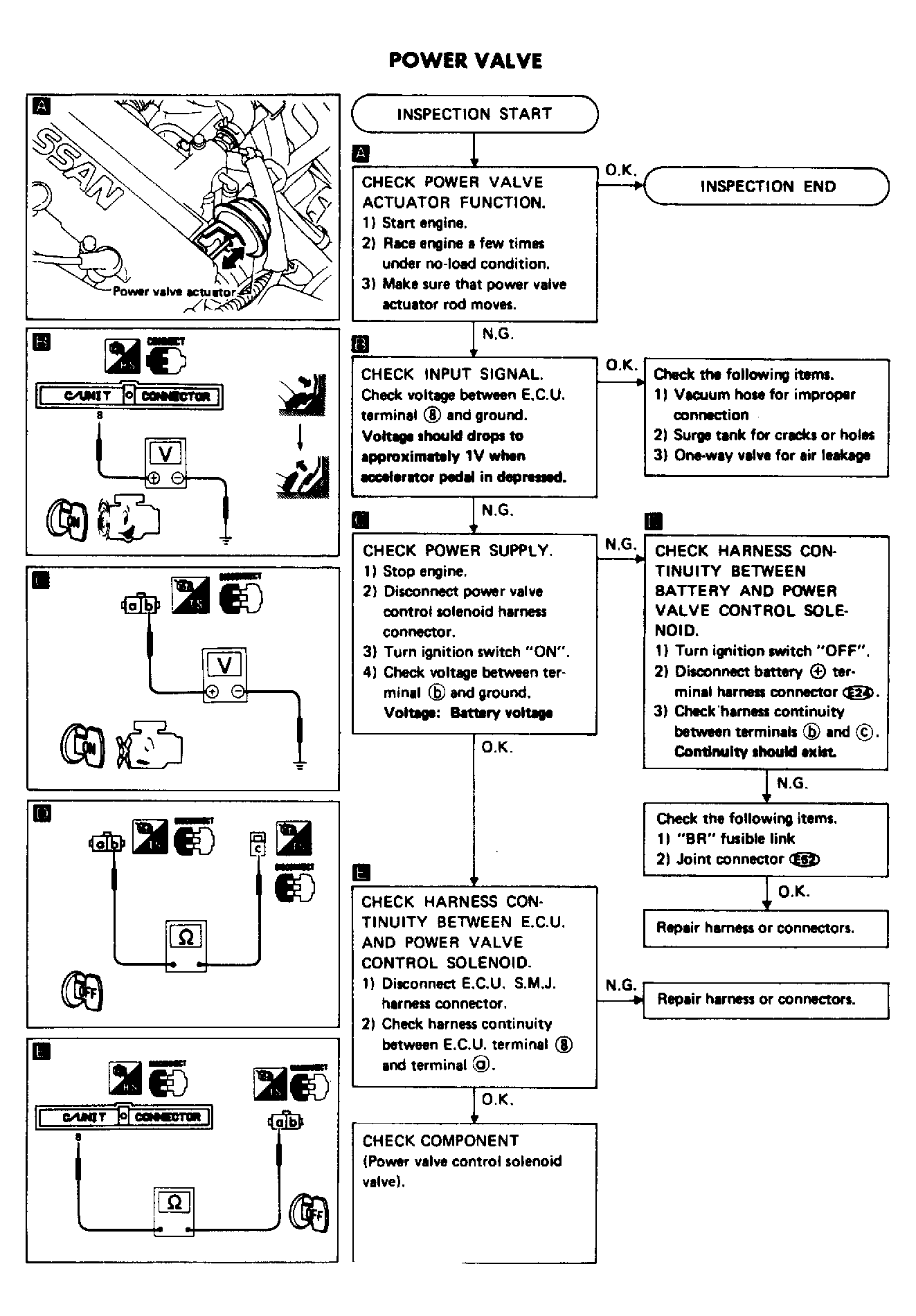

Fig 10: Power Valve Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

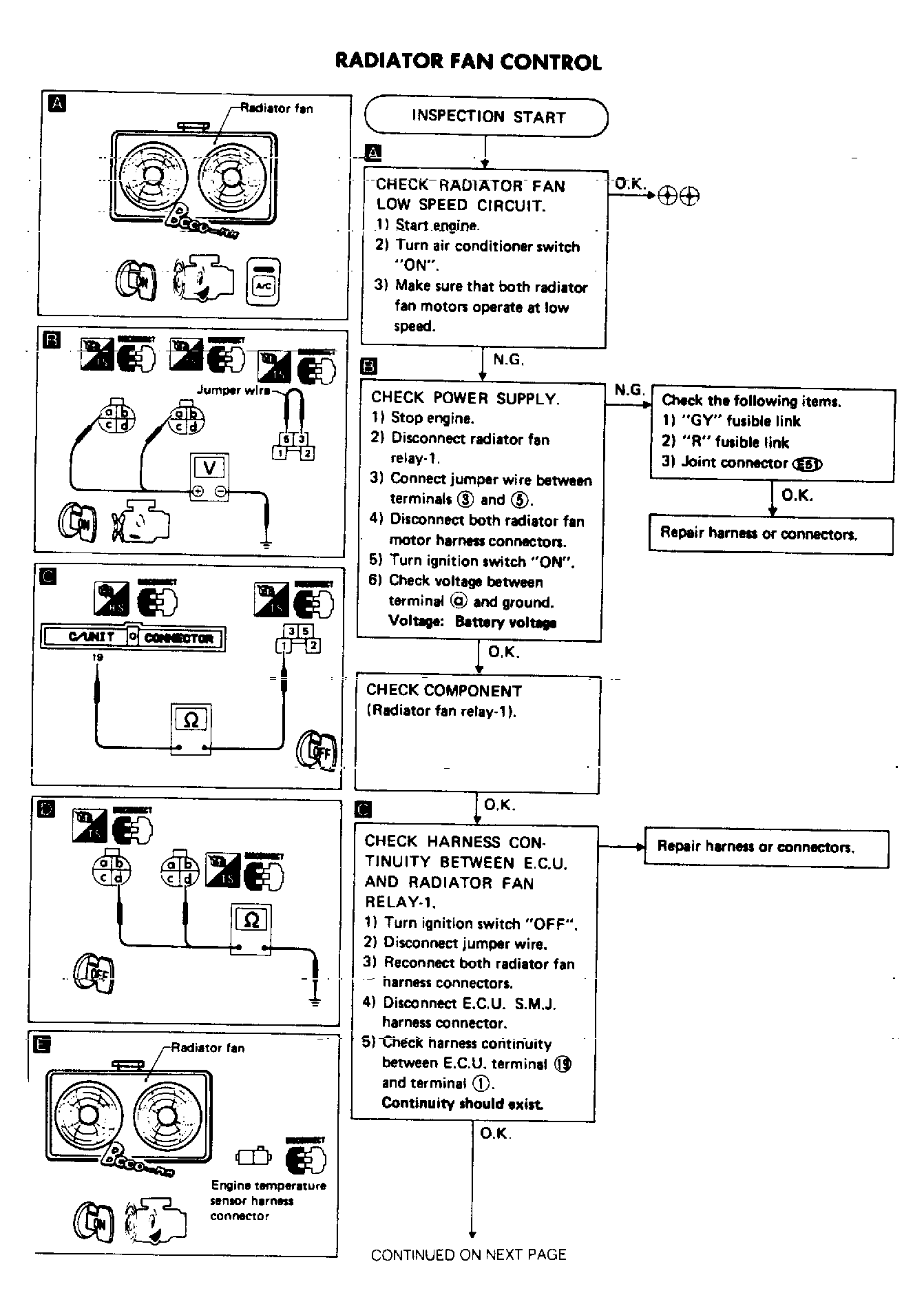

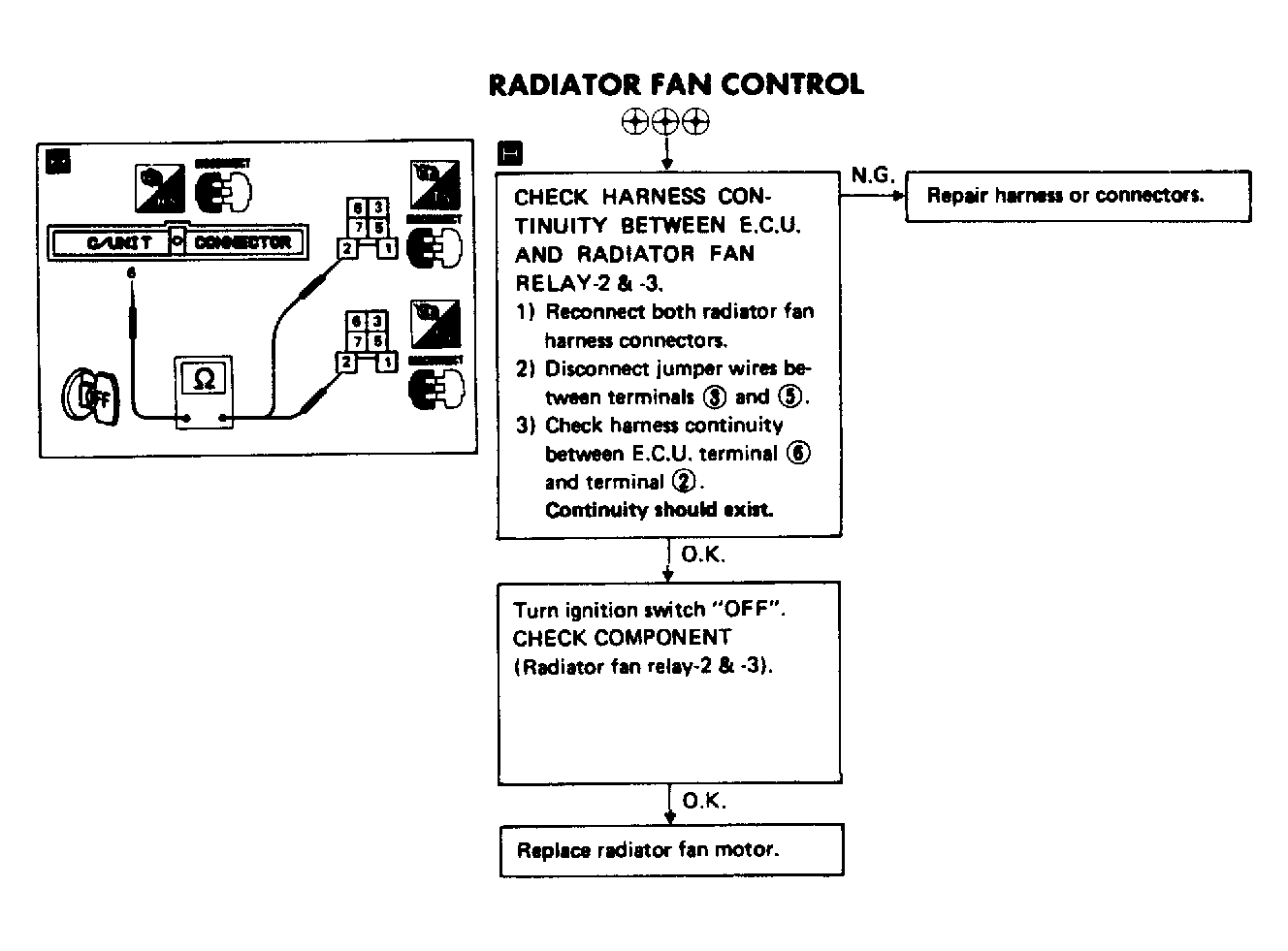

Fig 11: Radiator Fan Control Check Chart (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

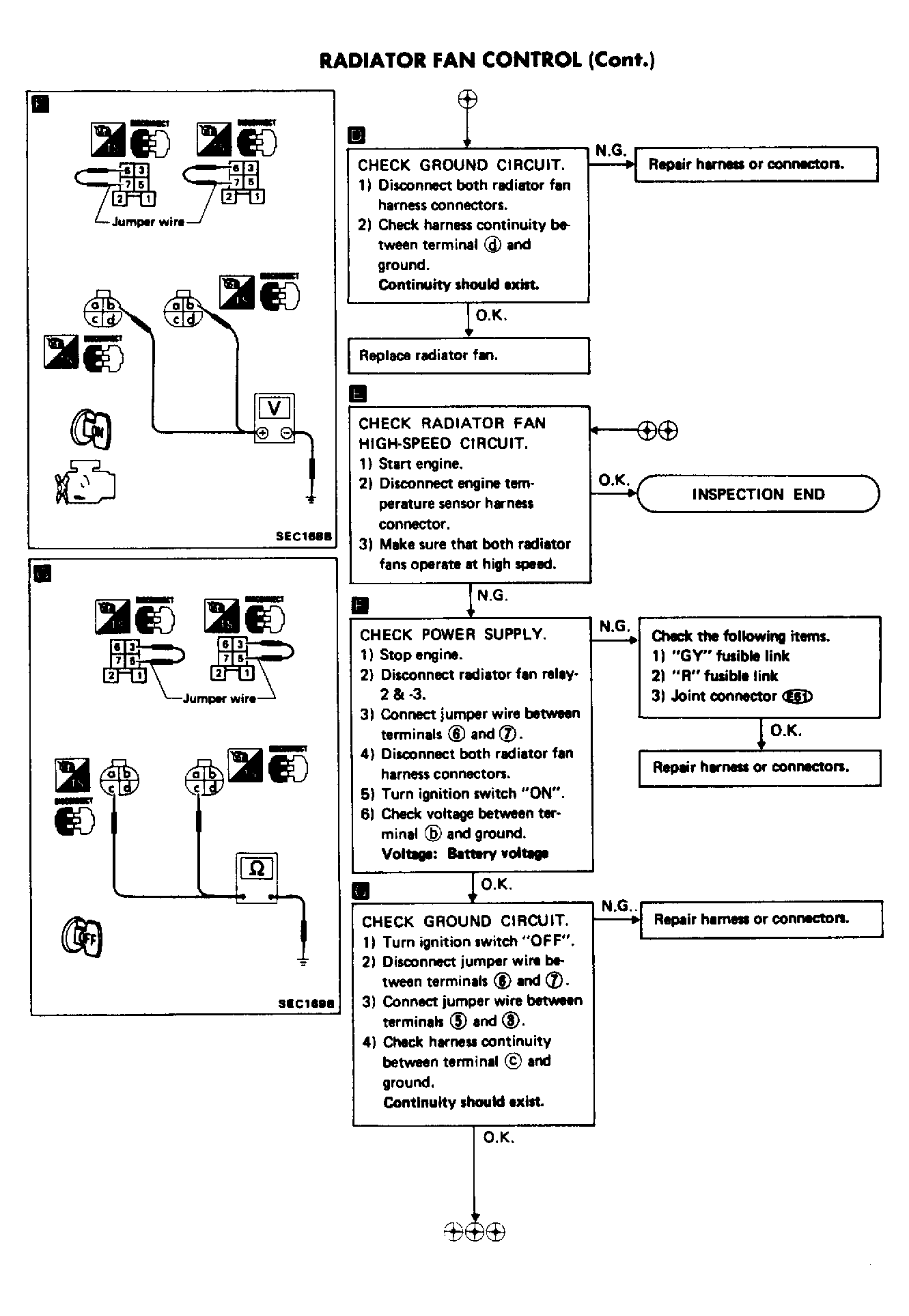

Fig 12: Radiator Fan Control Check Chart (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Radiator Fan Control Check Chart (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Start Signal Check Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
