Pin Voltages

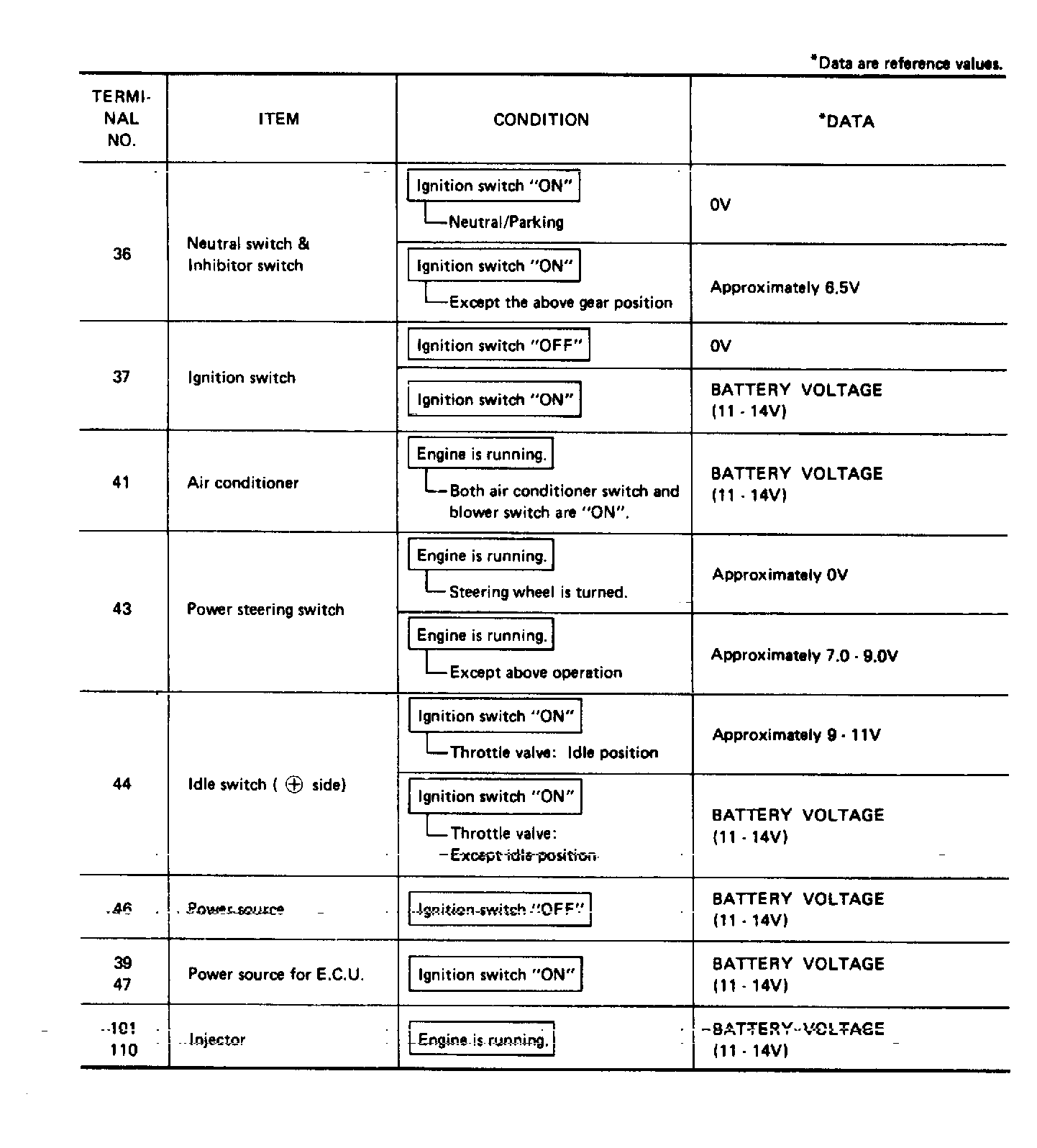

Fig 1: Sentra ECU Pin Voltage Charts

Courtesy of NISSAN MOTOR CO., U.S.A.

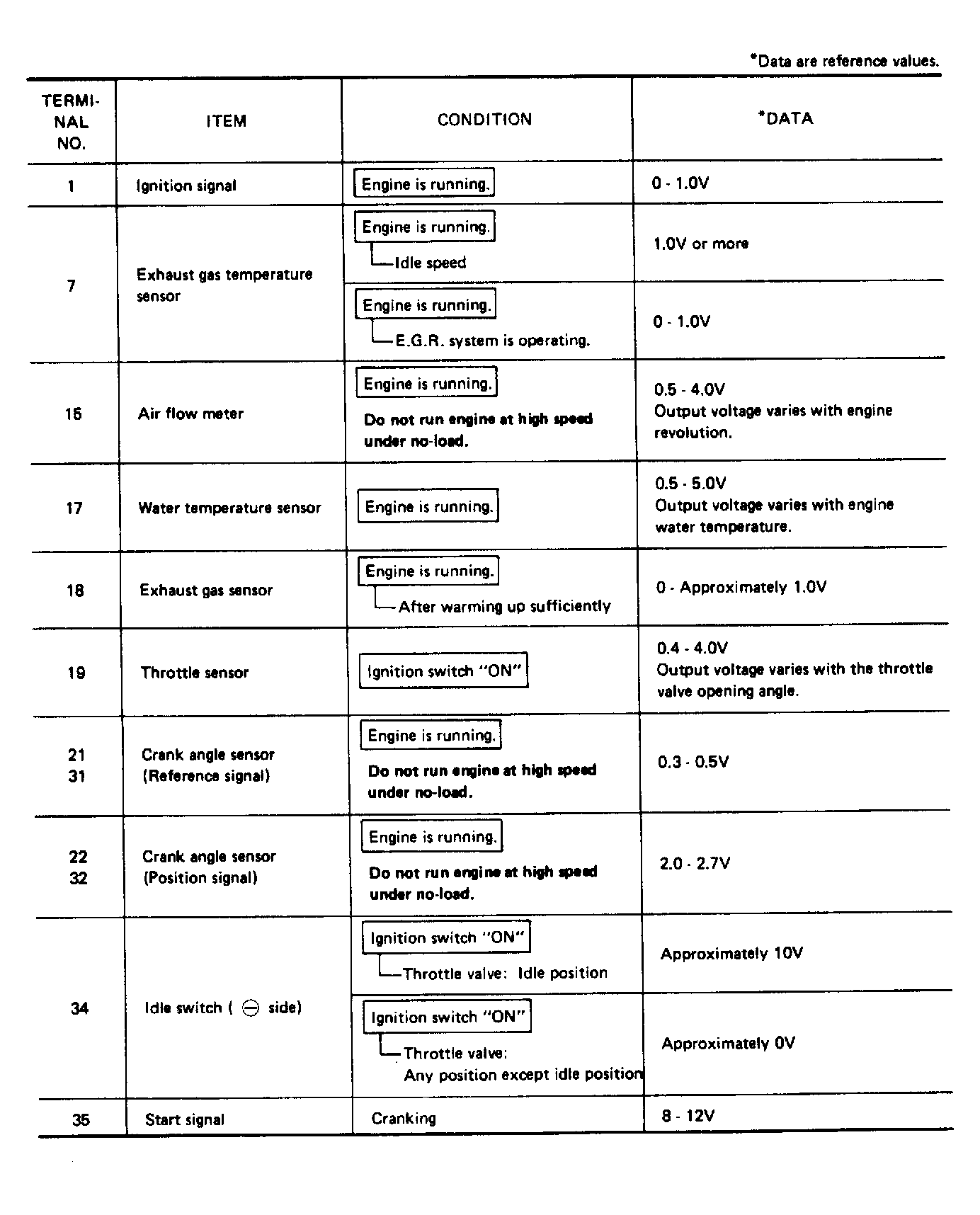

Fig 2: Sentra ECU Pin Voltage Charts (Cont.)

Courtesy of NISSAN MOTOR CO., U.S.A.

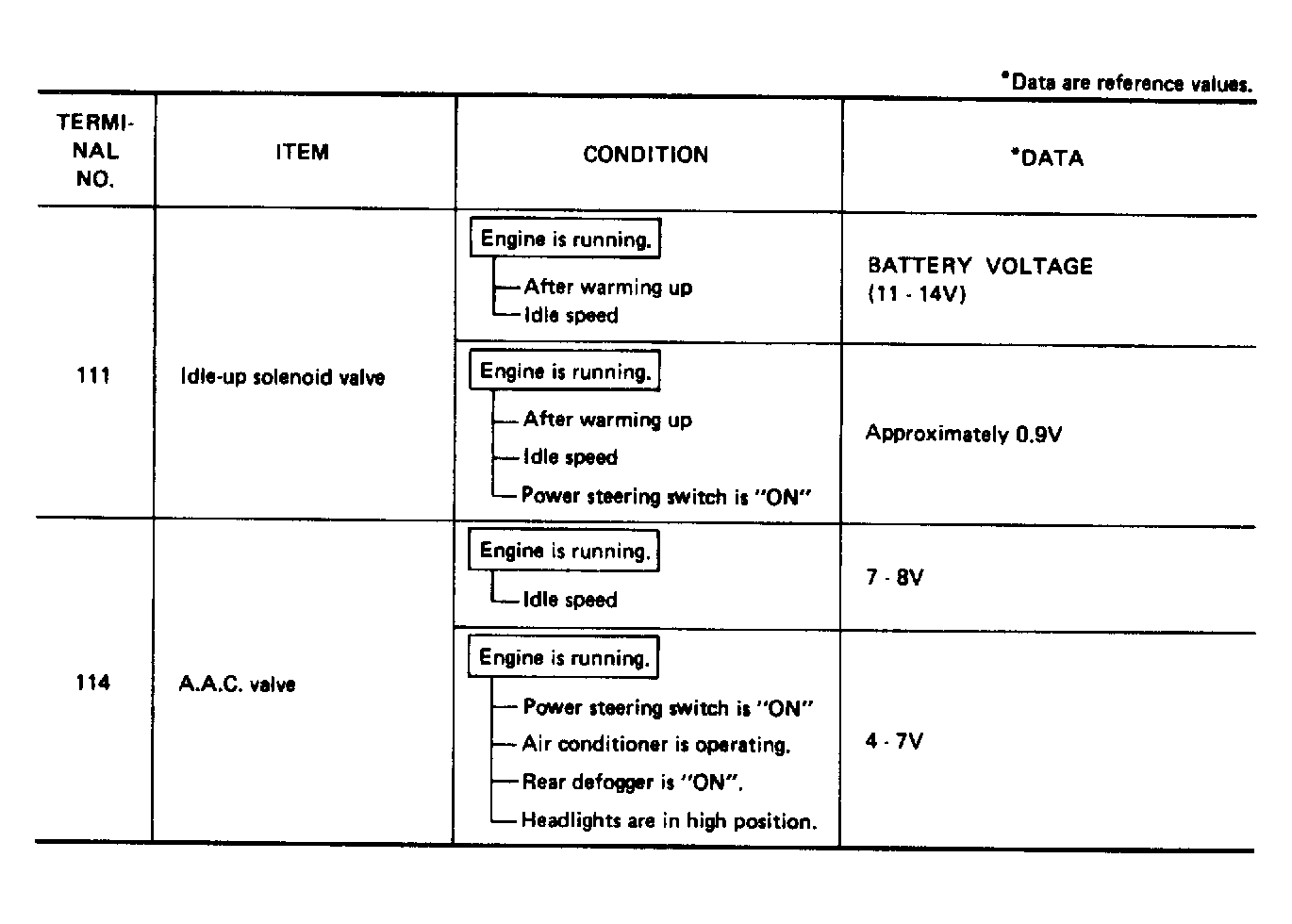

Fig 3: Sentra ECU Pin Voltage Charts (Cont.)

Courtesy of NISSAN MOTOR CO., U.S.A.

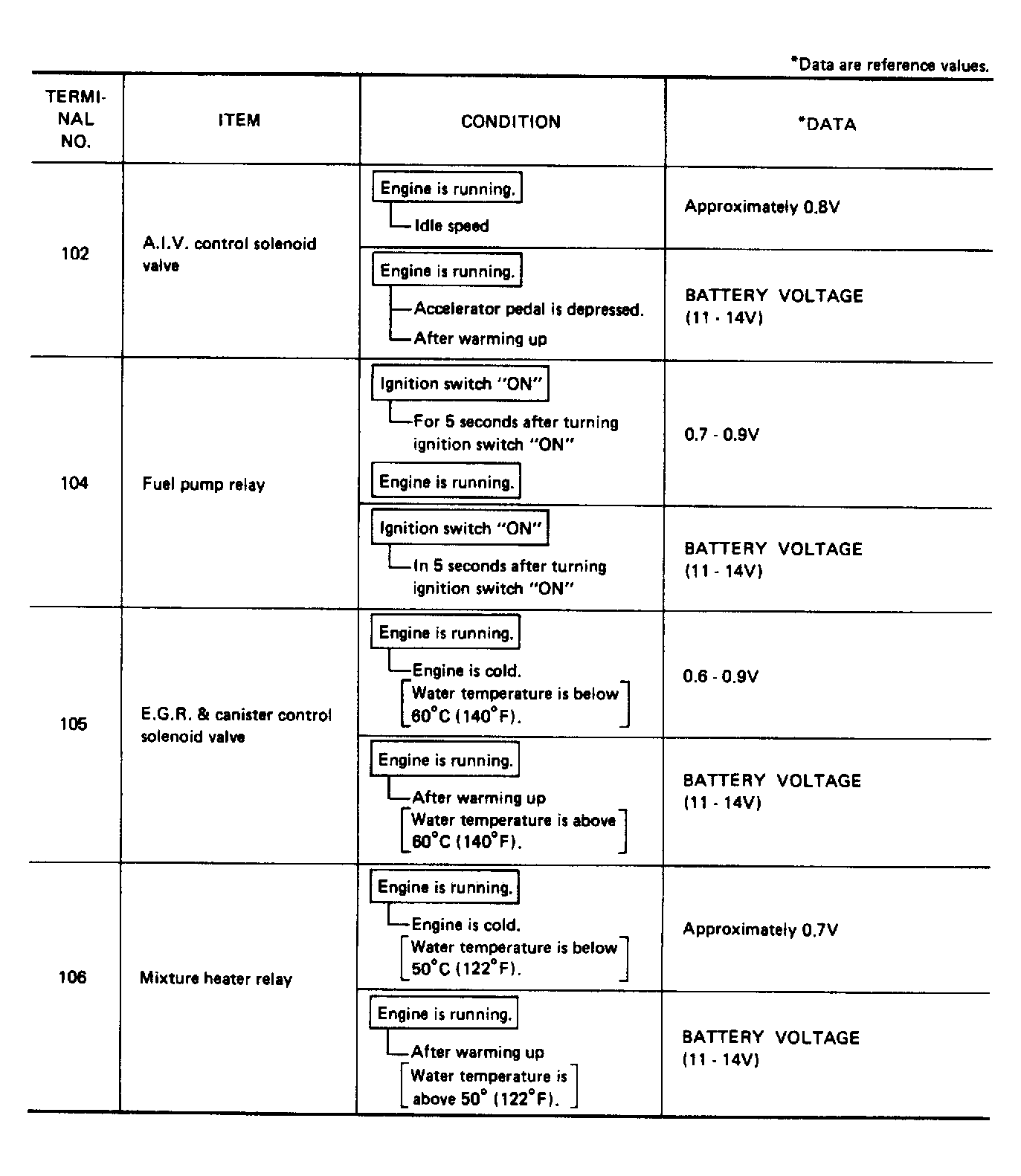

Fig 4: Pulsar NX XE & Sentra ECU Pin Voltage Charts (Cont.)

Courtesy of NISSAN MOTOR CO., U.S.A.
