Code 32, EGR Sensor

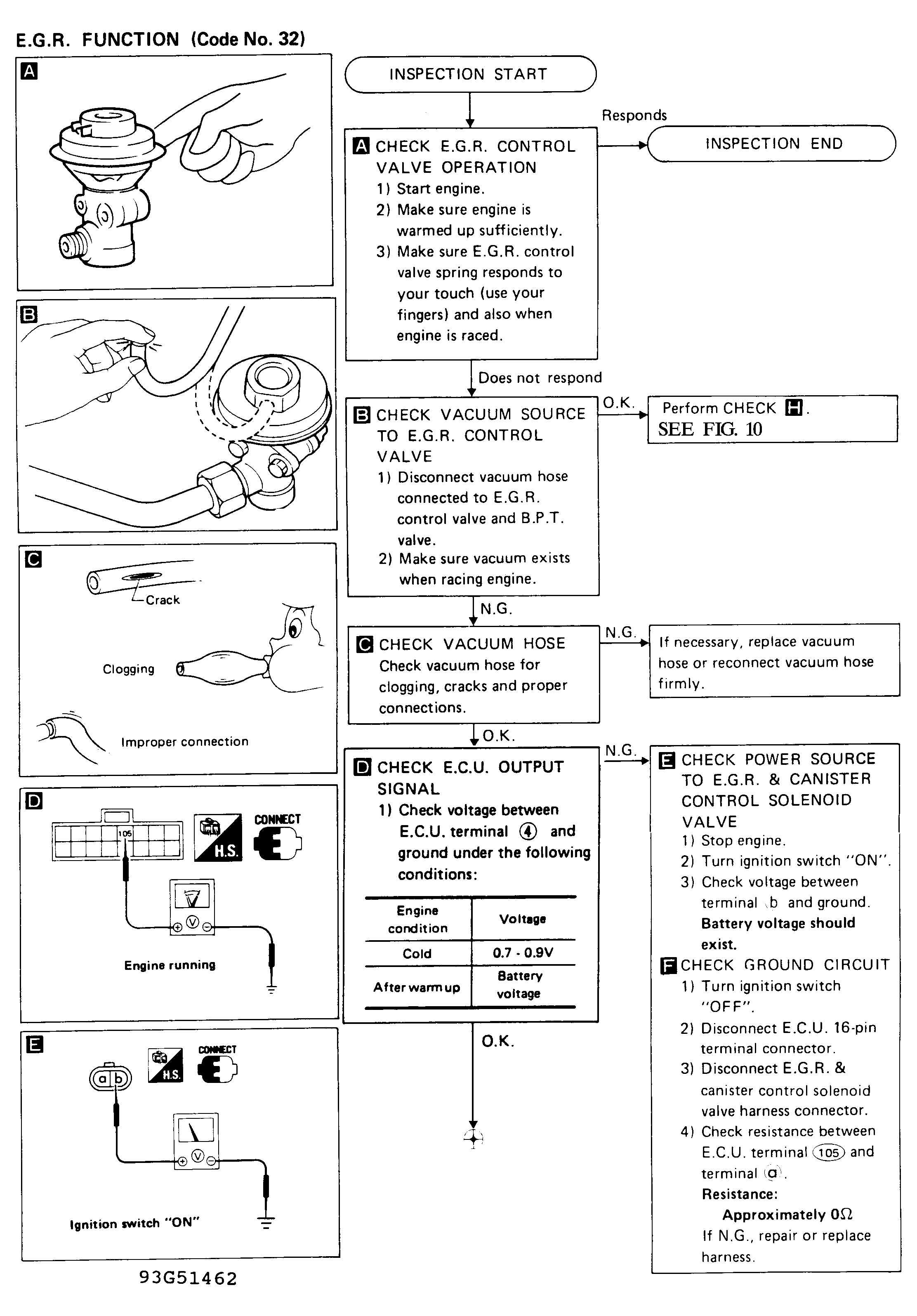

Fig 1: Code 32, Sentra (Revised per TS89-112) (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

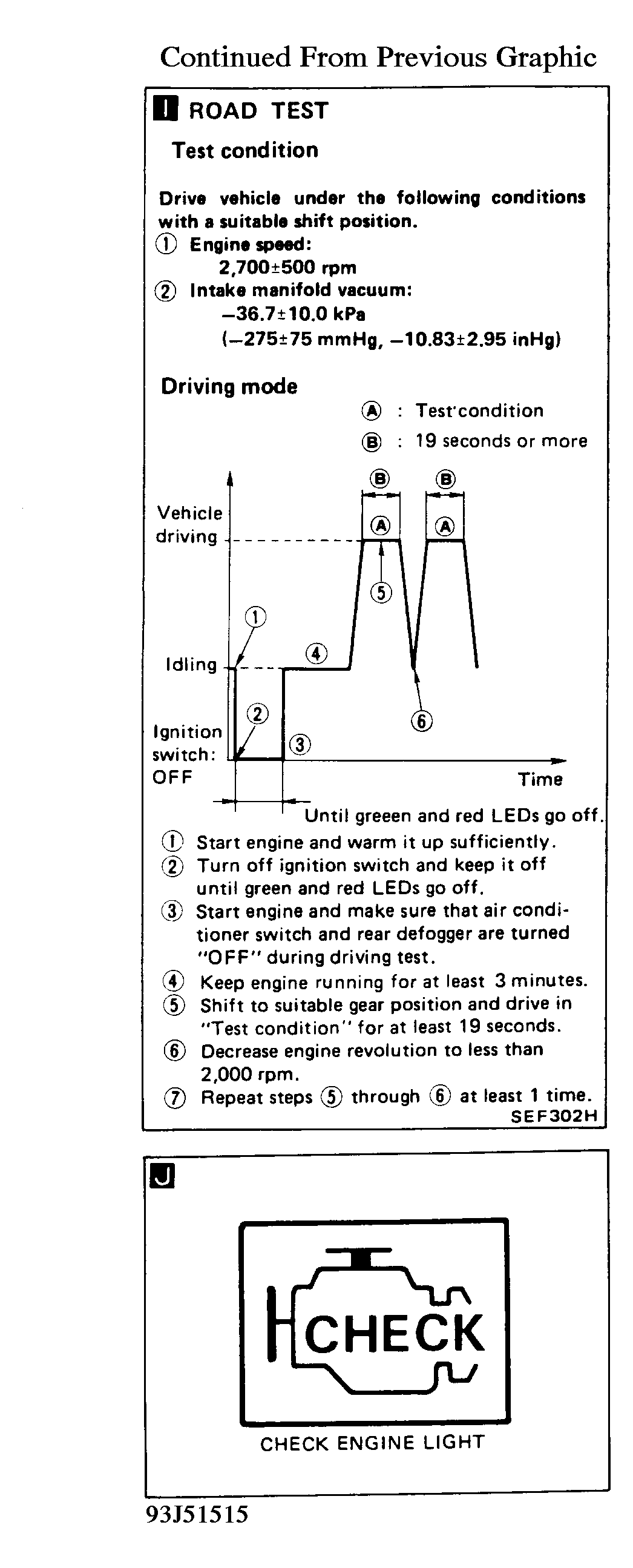

Fig 2: Code 32, Sentra (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

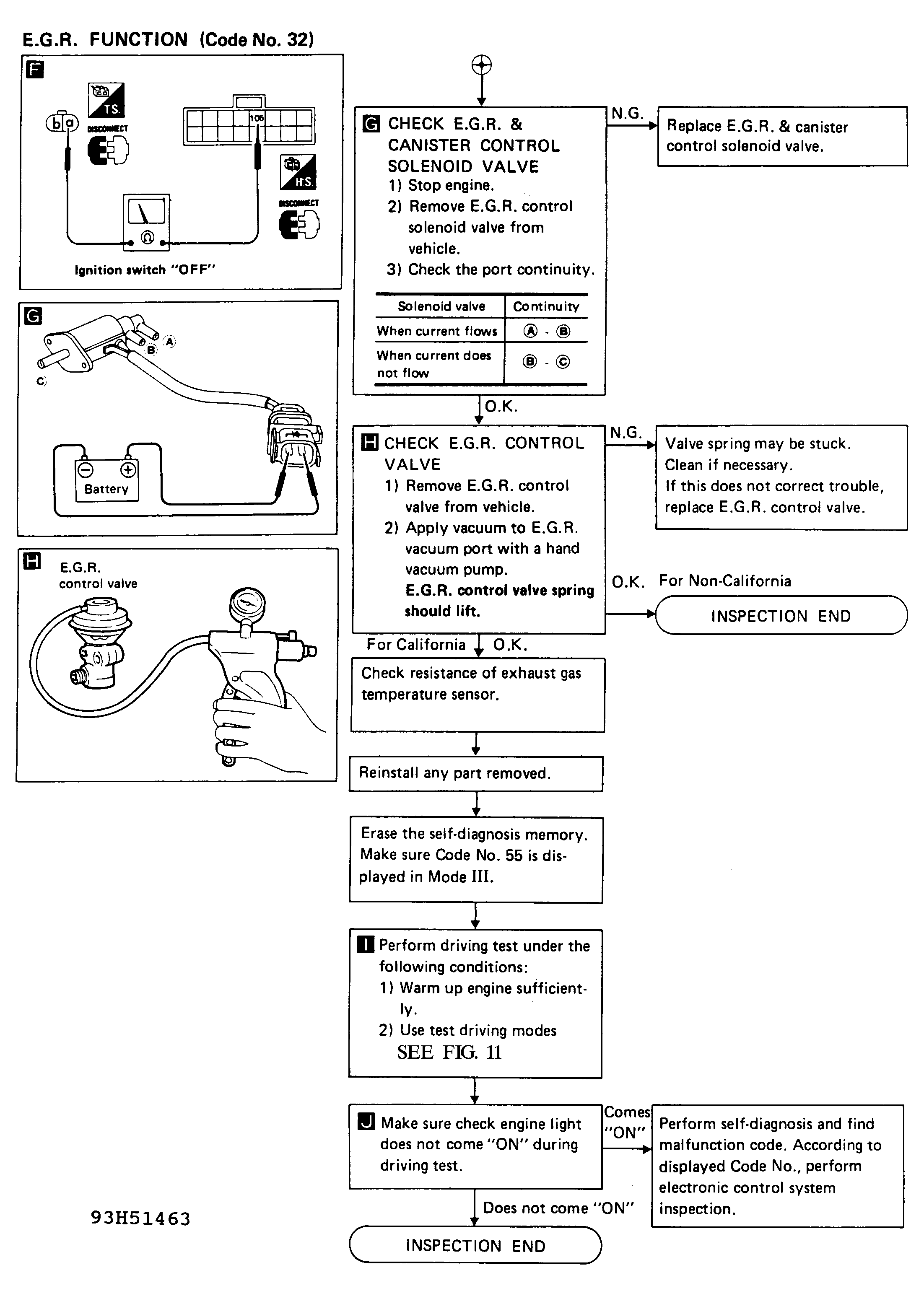

Fig 3: Code 32, Sentra (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
