Start Signal
WARNING: This page is about a different car, the 1989 Nissan Pickup and 1989 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

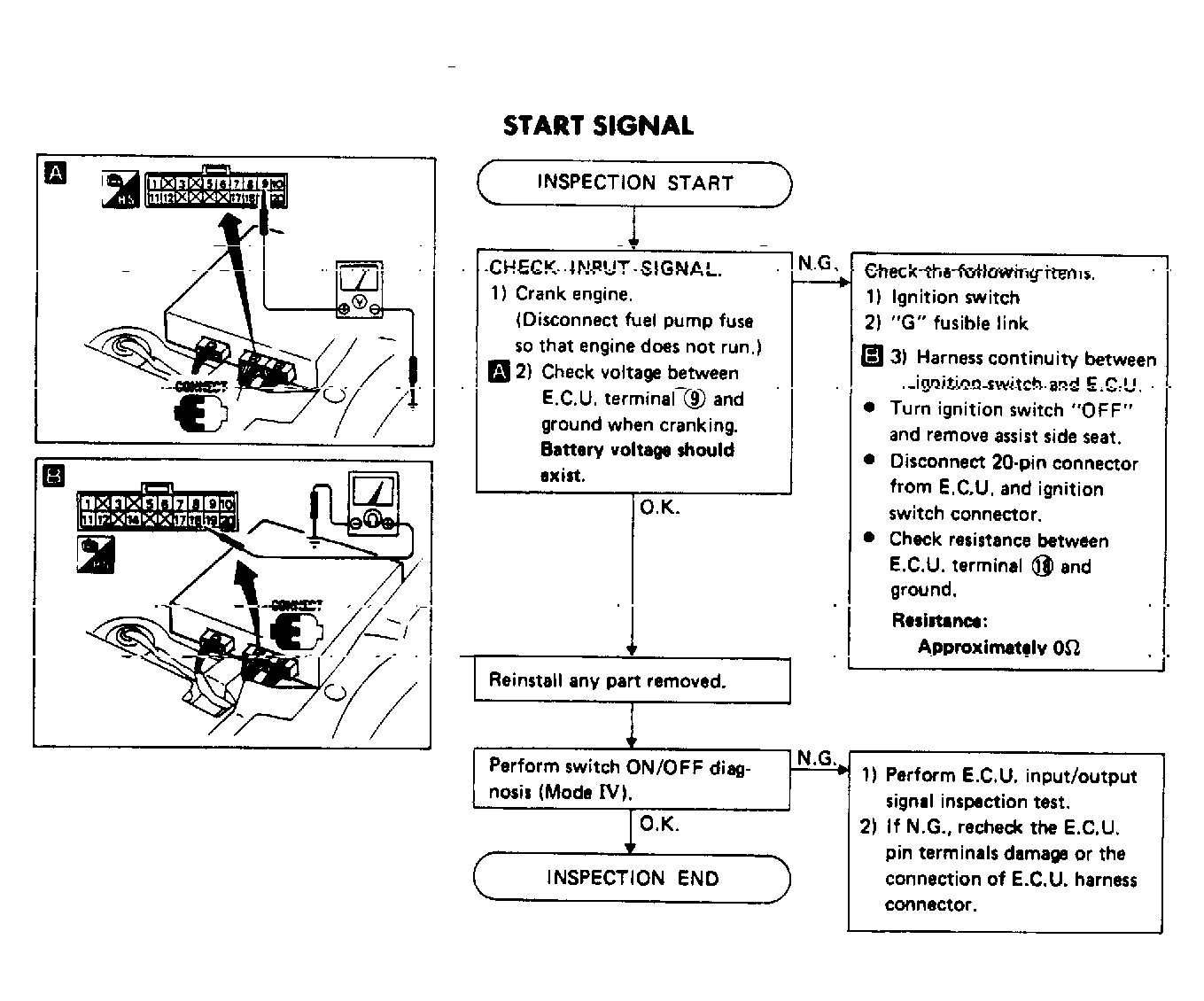

Start signal is used for ECU control of fuel pump and pressure regulator control solenoid. See Figure .
