Wheel Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS (MAXIMA)

Application Fraction (Decimal)
Front (1)
Camber (Degrees) 1/4 ± 3/4 (.250 ± .750)
Caster (Degrees) 1 1/4 ± 3/4 (1.250 ± .750)
Toe-In (Inches) Fig. Figure 5/64 ± 3/64 (.078 ± .048)
Toe-In (Degrees) Fig. Figure 5/64 ± 3/64 (.078 ± .048)
Toe-Out On Turns
Inner 37° ± 2°
Outer 30° ± 2°
Steering Axis Inclination (1) 13 1/2-15°
Rear (1)
Camber Degrees 7/64 ± 27/64 (.083 ± .416)
Caster Degrees 1/4 ± 3/4 (.250 ± .750)
Toe-In (Inches) Fig. Figure 5/64 ± 3/64 (.078 ± .048)
Toe-In (Degrees) Fig. Figure 5/64 ± 3/64 (.078 ± .048)
(1) Preset at factory and cannot be adjusted.
WHEEL ALIGNMENT SPECIFICATIONS (PATHFINDER)

Application Fraction (Decimal)
Front (Figs. 3 & 4)
Camber (Degrees) 43/64 ± 1/2 (.666 ± .500)
Caster (Degrees) 1 21/64 ± 1/2 (1.333 ± .500)
Toe-In (Inches) 11/64 ± 3/64 (.166 ± .048)
Toe-In (Degrees) 11/64 ± 3/64 (.166 ± .048)
Toe-Out On Turns
Inner 22°
Outer 20°
Steering Axis Inclination 8 ± 1/2°
WHEEL ALIGNMENT SPECIFICATIONS (PICKUP)

Application Fraction (Decimal)
Front (Figs. 3 & 4)
Camber (Degrees)
2WD 27/64 ± 1/2 (.416 ± .500)
4WD 43/64 ± 1/2 (.666 ± .500)
Caster (Degrees) 21/64 ± 1/2 (.333 ± .500)
Toe-In (Inches)
2WD 1/8 ± 3/64 (.125 ± .048)
4WD 11/64 ± 3/64 (.166 ± .048)
Toe-In (Degrees)
2WD 1/8 ± 3/64 (.125 ± .048)
4WD 11/64 ± 3/64 (.166 ± .048)
Toe-Out On Turns
Inner 22°
Outer 20°
Steering Axis Inclination
2WD 9 ± 1/2°
4WD 8 ± 1/2°
WHEEL ALIGNMENT SPECIFICATIONS (PULSAR)

Application Fraction (Decimal)
Front (Figs. 1 & 5)
Camber (Degrees) -1/2 ± 3/4 (-.500 ± .750)
Caster (Degrees) (1) 1 3/4 ± 1/2 (1.750 ± .500)
Toe-In (Inches) 0 ± 5/64 (0 ± .078)
Toe-In (Degrees) 0 ± 5/64 (0 ± .078)
Toe-Out On Turns
Inner
GA 16i Engine 21 19/64°
CA 18DE Engine 22 27/64°
Outer 20°
Steering Axis Inclination (1) 13 43/64-15 11/64°

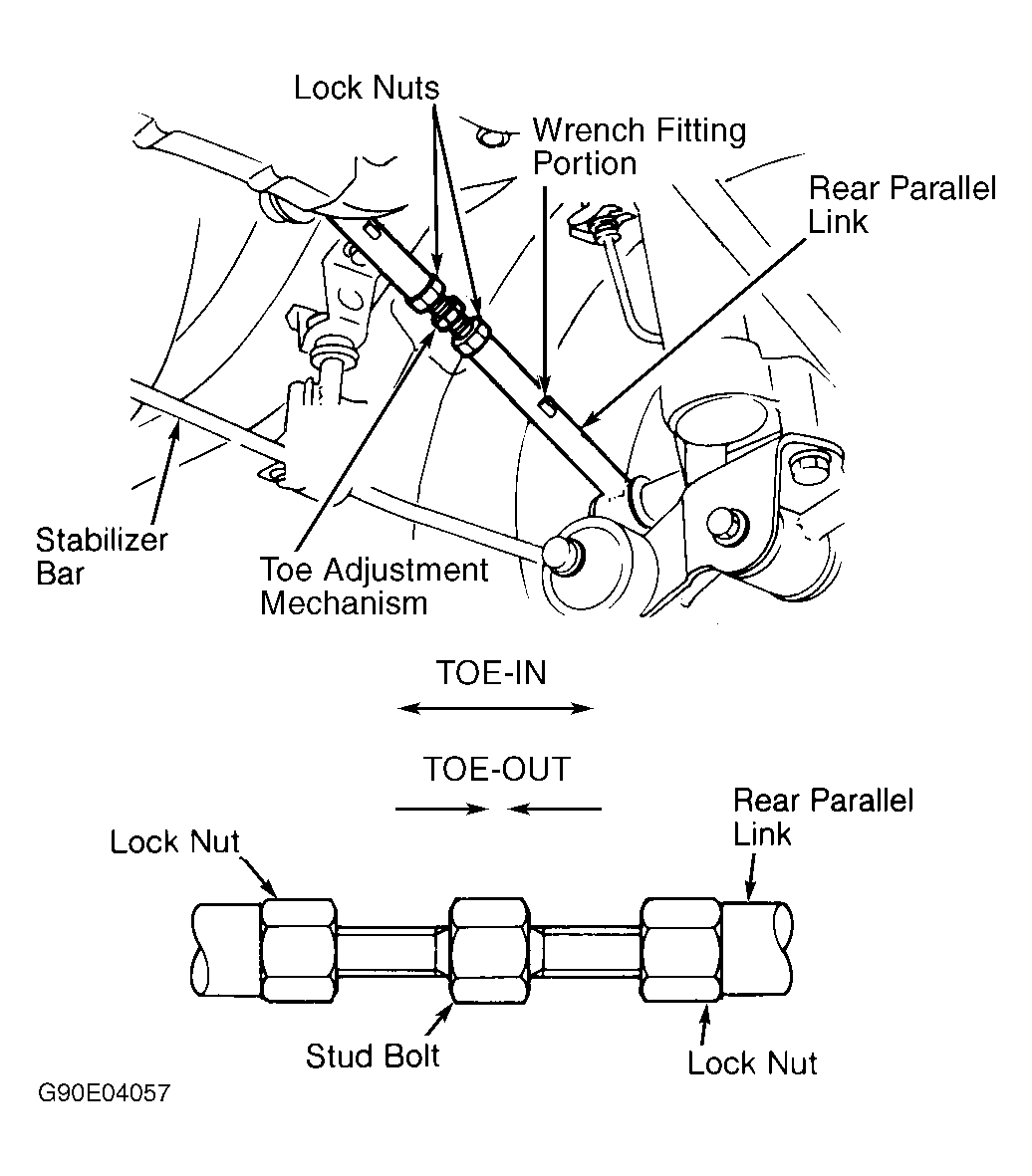

Rear (Fig. 6)
Camber Degrees -2 ± 1/2 (-2.00 ± .500)
Caster Degrees N/A
Toe-In (Inches) 1/64 ± 5/64 (.019 ± .078)
Toe-In (Degrees) 1/64 ± 5/64 (.019 ± .078)
(1) Preset at factory and cannot be adjusted.
WHEEL ALIGNMENT SPECIFICATIONS (SENTRA)

Application Fraction (Decimal)
Front (Figs. 1 & 5)
Camber (Degrees)
Coupe -21/64 ± 3/4 (-.333 ± .750)
Sedan -11/64 ± 3/4 (-.166 ± .750)
Caster (Degrees) (1) 1 1/2 ± 3/4 (1.500 ± .750)
Toe-In (Inches)
Coupe -2/64 ± 3/64 (.031 ± .042)
Sedan -5/64 ± 11/64 (-.078 ± .166)
Toe-In (Degrees)
Coupe -2/64 ± 3/64 (-.031 ± .042)
Sedan -5/64 ± 11/64 (-.078 ± .166)
Toe-Out On Turns
Inner 21 37/64°
Outer 20°
Steering Axis Inclination (1)
Coupe 13 37/64-15 5/64°
Sedan 13 1/4-14 3/4°
Rear (Fig. 6)
Camber Degrees (1)
Coupe -1 11/64 ± 3/4 (-1.166 ± .750)
Sedan -37/64 ± 1/4 (-.583 ± .250)
Caster Degrees N/A
Toe-In (Inches)
Coupe -5/64 ± 11/64 (-.078 ± .166)
Sedan 0 ± 27/64 (0 ± .416)
Toe-In (Degrees)
Coupe -5/64 ± 11/64 (-.078 ± .166)
Sedan 0 ± 27/64 (0 ± .416)
(1) Preset at factory and cannot be adjusted.
WHEEL ALIGNMENT SPECIFICATIONS (STANZA)

Application Fraction (Decimal)
Front (1)
Camber (Degrees) 21/64 ± 3/4 (.333 ± .750)
Caster (Degrees) 2 5/64 ± 3/4 (2.078 ± .750)
Toe-In (Inches) Fig. Figure 3/64 ± 1/8 (.042 ± .125)
Toe-In (Degrees) Fig. Figure 5/64 ± 21/64 (.078 ± .333)
Toe-Out On Turns
Inner 22 21/64°
Outer 20°
Steering Axis Inclination (1) 13 53/64-15 21/64°
Rear (1)
Camber Degrees 27/64 ± 3/4 (.416 ± .750)
Caster Degrees N/A
Toe-In (Inches) Fig. Figure 11/64 ± 1/4 (.166 ± .125)
Toe-In (Degrees) Fig. Figure 11/64 ± 37/64 (.166 ± .583)
(1) Preset at factory and cannot be adjusted.
WHEEL ALIGNMENT SPECIFICATIONS (240SX)

Application Fraction (Decimal)
Front (Figs. 1 & 5)
Camber (Degrees) -3/4 ± 3/4 (-.750 ± .750)
Caster (Degrees) (1) 6 3/4 ± 3/4 (6.750 ± .750)
Toe-In (Inches) 0 ± 5/64 (0 ± .078)
Toe-In (Degrees) 0 ± 11/64 (0 ± .166)
Toe-Out On Turns
Inner N/A
Outer N/A
Steering Axis Inclination (1) 12 1/2-14°
Rear (Figs. 7 & 8)
Camber Degrees -1 5/64 ± 1/2 (-1.078 ± .500)
Caster Degrees N/A
Toe-In (Inches) Fig. Figure 11/64 ± 1/4 (.166 ± .125)
Toe-In (Degrees) Fig. Figure 11/64 ± 37/64 (.166 ± .583)
(1) Preset at factory and cannot be adjusted.
WHEEL ALIGNMENT SPECIFICATIONS (300ZX)

Application Fraction (Decimal)
Front (1)
Camber (Degrees) 11/64 ± 3/4 (.166 ± .750)
Caster (Degrees) 6 37/64 ± 3/4 (6.583 ± .750)
Toe-In (Inches) 3/64 ± 1/8 (.048 ± .125)
Toe-In (Degrees) 5/64 ± 21/64 (.078 ± .333)
Toe-Out On Turns
Inner 22 1/2°
Outer 20°
Steering Axis Inclination 12 59/64-14 27/64°
Rear (1)
Camber Degrees -1 11/64 ± 3/4 (-1.166 ± .750)
Caster Degrees N/A
Toe-In (Inches) -5/64 ± 5/64 (-.078 ± .078)
Toe-In (Degrees) -11/64 ± 1/4 (.166 ± .250)
(1) Adjustment procedure Figs. not available.
